RS232 Isolators repeaters UT-2212 repeater and photoelectric isolator NEW

If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:
email:[email protected]
Tel:0086-574- 88333153
We will quote you our best price to you in 24hours.

UT-2212/3212 series RS-232 long drive or a long-term transceiver or long distance repeater, it can extend the communication distance of two asynchronous communication RS-232 devices to a maximum of 1.2 km. As a result of the lightning protection technology, the complete protection of the interference of both ends of the RS-232 devices surge damage, and significantly improve the reliability and stability of the communication system, at the same time due to changes in the original RS-232 interface single-ended transmission mode, use the twisted pair transmission, greatly improving the communication distance. Dedicated its own line asynchronous RS-232 point-to-point through the field, can be used the UT-2212/3212 to meet the demand of the interface to protect or extend the distance. UT-2212/3212 4-wire, 6-wire products. UT-3212 4-wire products can send a pair of data signal, RTS, CTS flow control. UT-2212 6-line products can send a pair of data signal also can send two pairs of control signals, DTR, DSR, RTS, CTS flow control signals.
UT-2212/3212 compact, and less demanding on the wire, the best available the general network cable or 8-core twisted pair shielded cable wire. The devices can be plugged directly into the RS-232 interface, very easy to use.
UT-2212/3212 series products have been widely used in point-to-point RS-232 communications, multi-user terminal and the host connection, RS-232 remote control systems, PABX billing terminal, a satellite receiver.

Features:
? serial port RS-232 communication distance is extended to 1.2 kilometers
? balance current transmission, anti-interference ability
? lightning technology to prevent lightning and surge damage equipment
? support RS-232 asynchronous communication standards
? inserted directly RS-232 interface, easy to use
? use a dedicated communications line or wire to
? transfer rate up to 115.2kbps
? Full-duplex or half-duplex mode, compact

Performance parameters:
? Interface: one end of the line with the EIA RS-232C and CCITT V.24 asynchronous protocol, the other end using a standard RJ-45

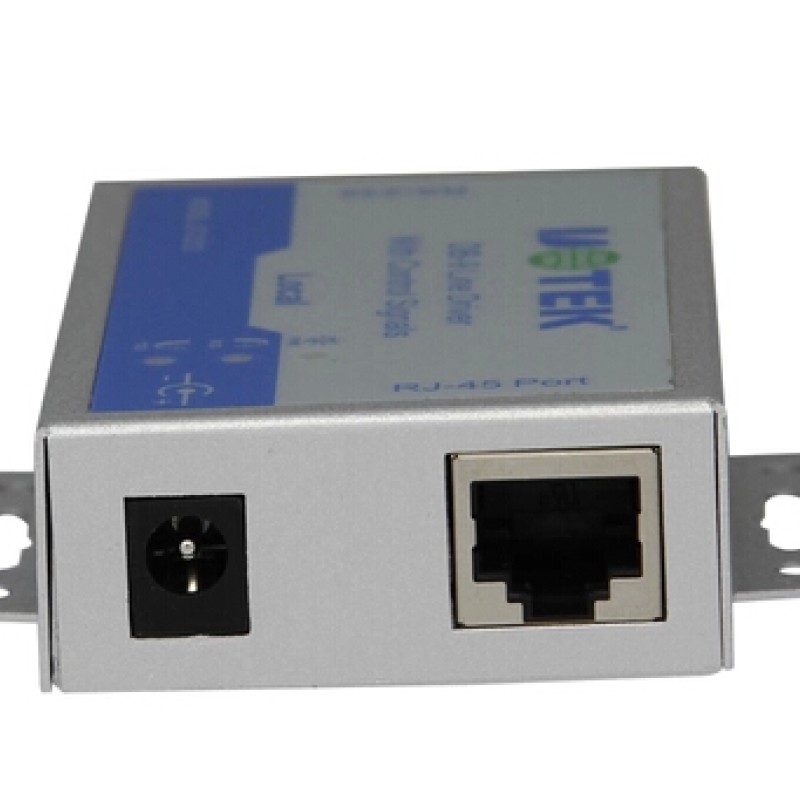

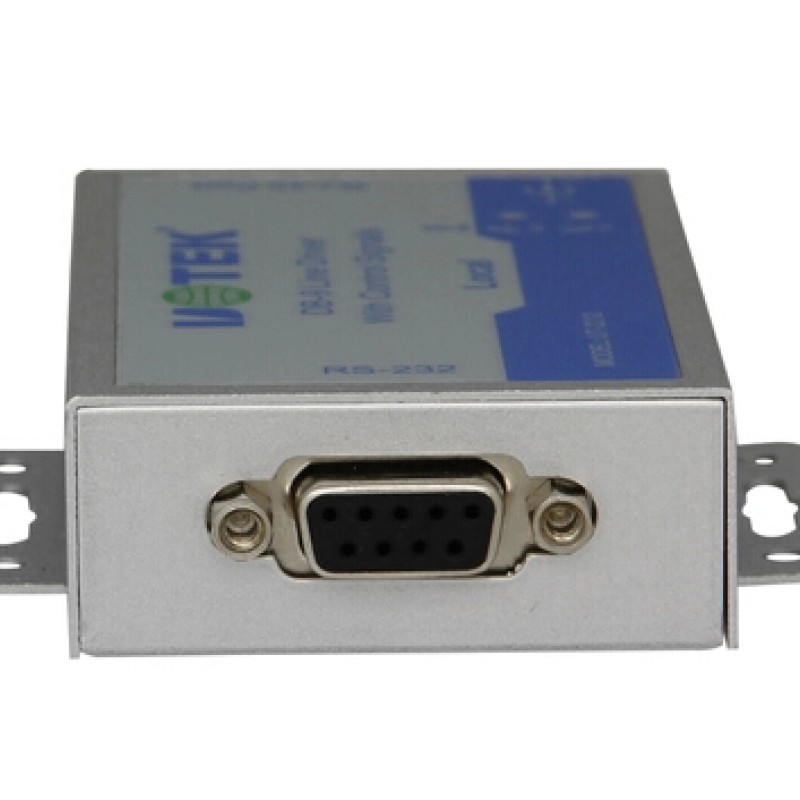

connector interface ?: RS-232 side of the DB9 female connector line side of the RJ-45 the interface connector

? Transfer Mode: asynchronous, full-duplex or half-duplex
? rate :300-115200bps
? power :9-24VDC 1A
? Dimensions: 79mmX52mmX21mm
? use environment: -25 ° C to 70 ° C, relative humidity of 5% to 95%

Applications:
? RS-232 point-to-point communication
? multi-user system
remote terminal
? multi-user terminal connection to a host
? RS-232 remote control system
? program-controlled switchboards billing terminal
? satellite receiver
? remote paging station system
