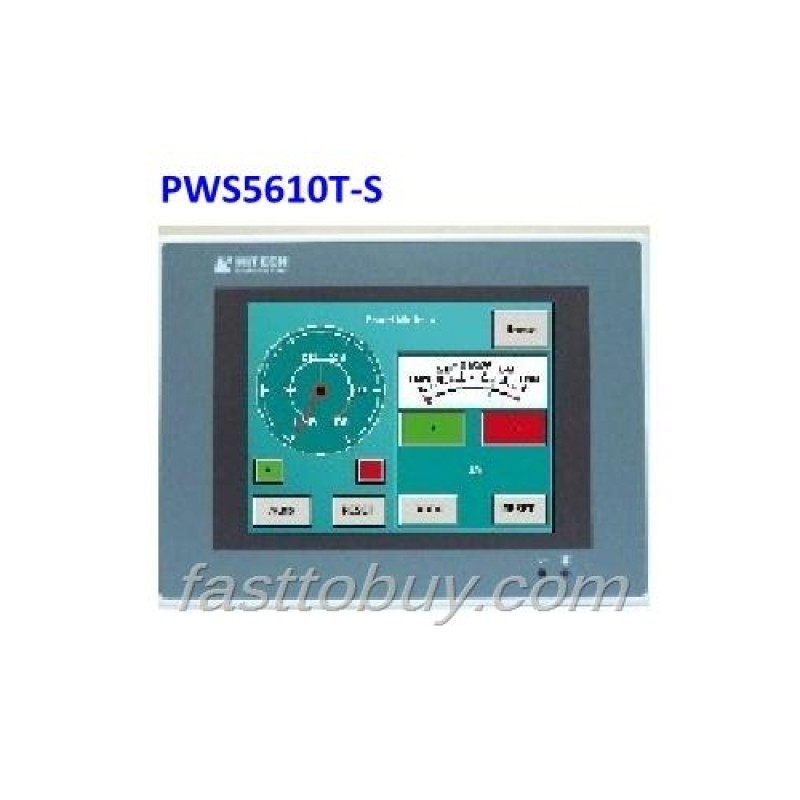

HITECH HMI/Touch Screen/Human Machine Interface PWS5610T-S New in box
Introductions:
The PWS-series offers valuable HMI functionality at an affordable level. The series include keypad and touch screen interfaces and is available in fi ve different sizes from 3 to 10.4 inches. Offering three levels of functionality - Standard, Plus and Network - the PWS-series enables you to select and pay for what level of HMI technology you need.
Features:
Configuration software for the PWS-terminal
Screen management
Cross references
All Windows™ fonts supported
Off-line and on-line simulation
Animated graphics
Ladder or macro functionality
Communication drivers
Multi-language support
Multi-channel communication
File protection
Specifications:
Item | PWS5610T-S | PWS5610S-S |
Display Type | Color STN LCD | Mono TFT LCD |
Display Color | 256 colors | |
Display Size | 5.7” | |
Active area of display | 115.2 x 86.4 mm | |
Display resolution | 320 x 240, Number of 8 x 8 characters displayable 40 x 30 | |
Display Adjustment | – | Via touch panel |
Brightness adjustment | Via touch panel | |
Back Light | LED, Lifetime 50,000 hours @25 ºC | LED, Lifetime 20,000 hours @25 ºC |
Touch Screen | Analog | |
Input Power | 24VDC + - 15% ; less than 8W | |
Flash ROM | 2M bytes | |
RAM | 512 K bytes | |
CPU | 32 bits RISC | |
RTC | Yes | |
Data/Recipe | 256K bytes | |
COM1 | 9-pin female connector,(RS232/RS485/RS422 without RTS/CTS) or (RS232,COM2 RS422/RS485without RTS/CTS) | |
Front Panel Seal | IP65 | |
Ambient Temperature | 0~50ºC | |
Storage Temperature | -10~60ºC | |
Ambient Humidity | 10-90%RH(0~40° C),10-60%RH(41-50° C),non-condensing | |
Vibration Endurance | 0.5mm displacement, 10-55Hz, 2 hours per X, Y, and Z-axis directions | |
Shock Endurance | 10G, 11ms three times in each direction of X, Y, and Z axes | |
CE | EN61000-6-4,EN61000-6-2 | |
External Dimensions (mm) | 195(W) x 145(H) x 40.2(D) | |
Cut-out Dimensions (mm) | 185.8 x 135.8 | |
Weight | 0.5 Kg | |
Cooling | Natural cooling | |
