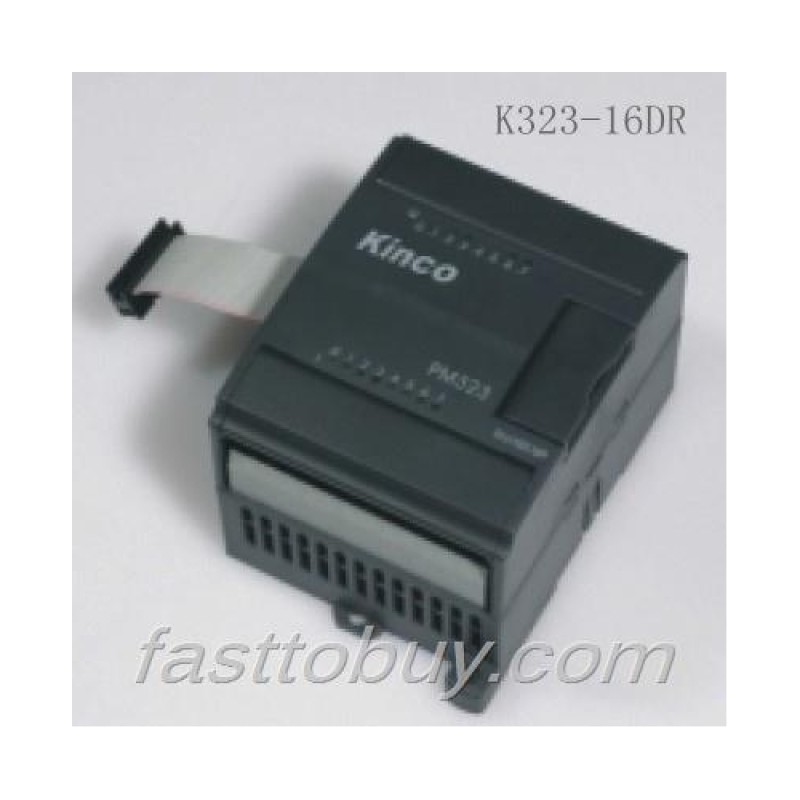

PLC Expansion I/O 8 DI 8 DO relay KINCO K323-16DR Module New

Model

K323

K323-08DR

K323-16DR

Number of Input Channels

4 (4 Channels/Group)

8 (8 Channels/Group)

Input Type

Source/Sink

Rated Input Voltage

DC24V (“1” for DC15~30V)

Rated Input Current

4.1Ma@24VDC

Maximum Input Voltage of Logic “0”

[email protected]

Minimum Input Voltage of Logic “1”

[email protected]

Input Filter Delay

5ms

Isolation Between Input and Internal Logic Circuit

Mode

Photoelectric Coupler

Voltage

1500VAC/1 Minute

Number of Output Channels

4 Relay (4 Channels/Group)

8 Relay (4 Channels/Group)

Power Supply Voltage for Output

Maximum: DC30V/AC270V

Maximum Output Current of Each Channel

3A(DC 30V/AC270V)

Maximum Output Current of Each Group

10A

Output ON Delay Time

10ms (Max.)

5ms (Typical Value)

Output OFFN Delay Time

5ms (Max.)

3ms (Typical Value)

Maximum Switch Frequency of Relay

No-Load

12,000 Times/Minute

Rated Load

100 Times/Minute

Expected Life of Relay Contact

     Mechanical Life            (No Load)

20,000,000 Times

Electric Life (Rated Load)

100,000 Times

Output Isolation Characteristics

 Mode

Relay

Relay

Isolation Voltage Between Coil and Contact

2000Vrms

2000Vrms

 Isolation Voltage Between Contacts

1000Vrms

750Vrms

Current Loss of Expansion Bus

5V

<67.4Ma            <97.8Ma

24V

<22.0mA           <42.0Ma

Occupied Address Space

DI Image Area

1 Byte

DO Image Area

1 Byte

Dimensions and Weight

Dimensions (LWH)

114X50X70mm

114X75X70mm

Net Weight

145g

160g
