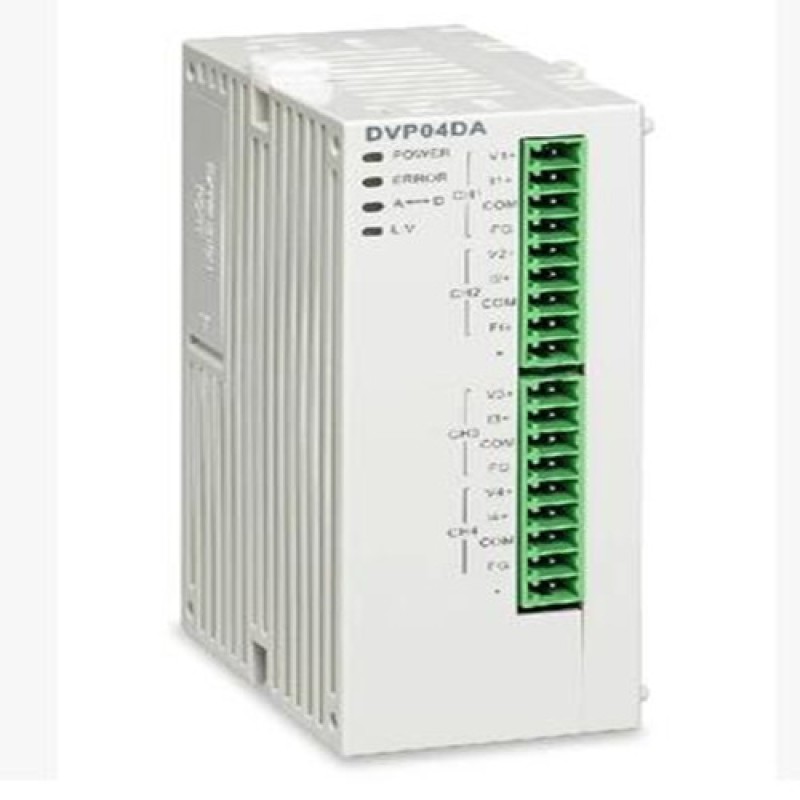

PLC 4 AI Analog Module DVP04AD-SL Delta New

Analog/Digital module

Voltage input

Current input

Power supply voltage

24VDC (-15% ~ +20%) / 3.5W

DVPPS01(PS02): input 100-240VAC, output 24VDC/1A(PS02: 2A)

Analog input channel

4 channels / each module

Range of analog input

+-10V

+-5V

+-20mA

0 ~ 20mA

4 ~ 20mA

Range of digital

conversion

+-32,000

+-32,000

+-32,000

0~32,000

0~32,000

Hardware Resolution

16 bits

16 bits

16 bits

15 bits

15 bits

Input impedance

< 0.5?

Overall accuracy

+-0.3% when in full scale (25°C, 77°F)

+-0.5% when in full scale within the range of 0 ~ 55°C (32 ~ 131°F)

Response time

250us / each channel

Max. output current

1K? ~ 2M?

--

Tolerance carried

impedance

--

0?~500?

Digital data format

2’s complement of 16 bits, 15 significant bits

Isolation method

Optical coupler isolation between digital circuits and analog circuits.

No isolation among analog channels.

500VDC between digital circuits and Ground

500VDC between analog circuits and Ground

500VDC between analog circuits and digital circuits

500VDC between 24VDC and Ground

Series connection to DVP-PLC MPU

Connectable to the left side of MPU, numbered from 100 to 107 according to the position of module from the closest to farthest to MPU.

Operation/storage

temperature

Operation: 0°C~55°C (temp.), 50~95% (humidity), Pollution degree2

Storage: -25°C~70°C (temp.), 5~95% (humidity)

Vibration/shock

immunity

International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/

IEC61131-2 & IEC 68-2-27 (TEST Ea)
