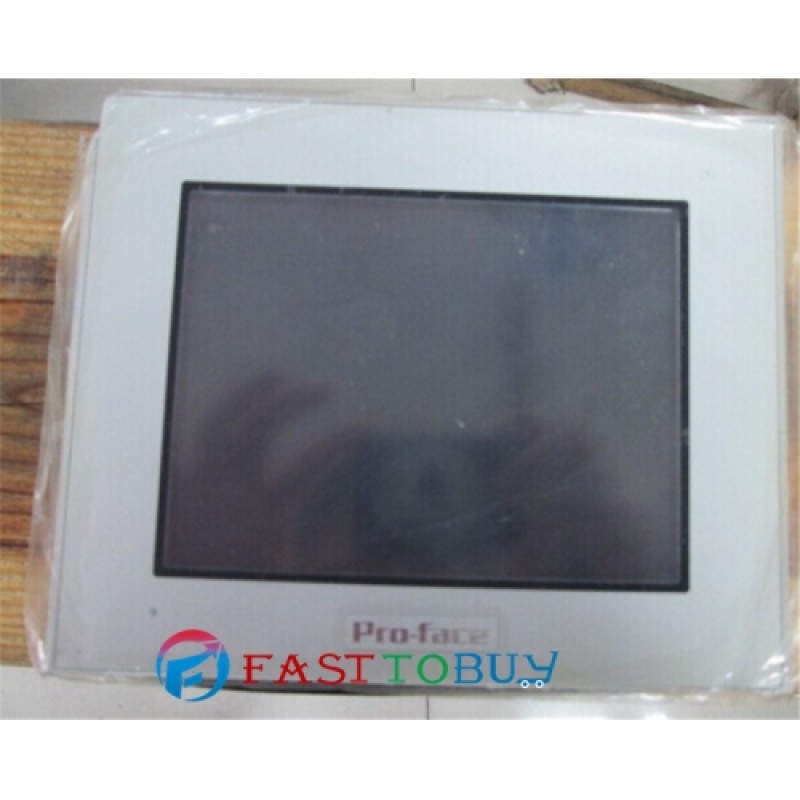

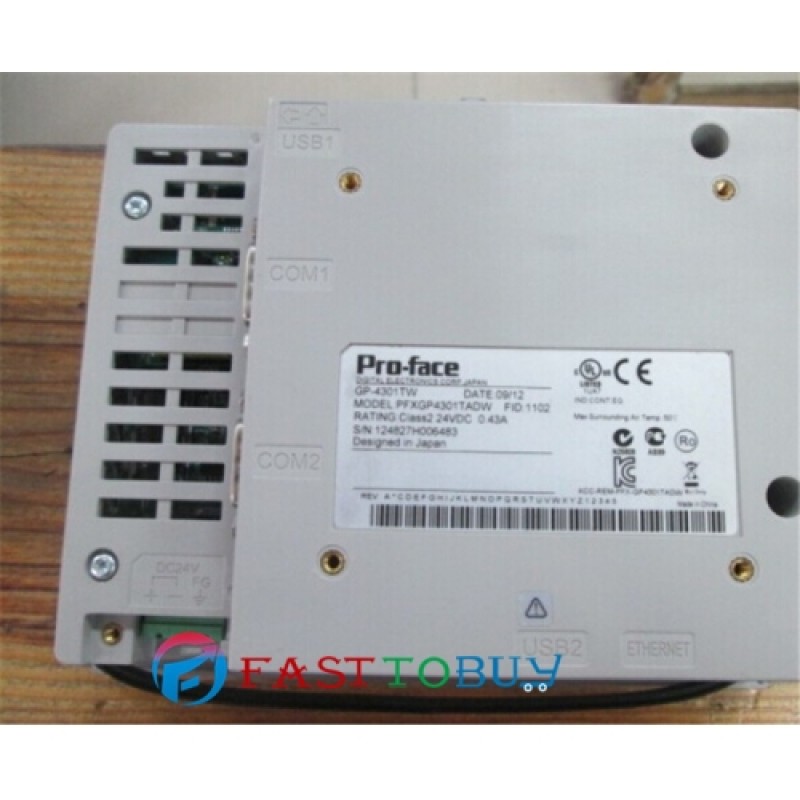

PFXGP4301TADW HMI 5.7" 320*240 DC24V with Ethernet New

Model

PFXGP4301TADW

Display Type

TFT Color LCD

Display Size

5.7"

Resolution

320 x 240 pixels (QVGA)

Effective Display Area

W115.2 x H86.4 mm [W4.54 x H3.40 in.]

Display Colors

65,536 Colors (No blink)/16,384 Colors (Blink)

Backlight

White LED (User non replaceable parts. When replacement is required, contact your local distributor.)

Brightness Control

8 Levels (Adjusted with the touch panel ot the software)

Backlight Service Life

50,000 hrs. or more (continuous operation at 25centigrade degree before backlight brightness decreases to 50%)

Language Fonts

Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters) ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.)

Character Sizes

Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts

Font Sizes

Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.

8 x 16 dots

40 char. x 15 rows

16 x 16 dots

20 char. x 15 rows

32 x 32 dots

10 char. x 7 rows

8 x 8 dots

40 char. x 30 rows

Program Area

FLASH EPROM 132 KB (Equivalent to 15,000 steps)*1

Variable Area

None

Application Memory

FLASH EPROM 8 MB (including a logic program area)

Data Backup

SRAM 128 KB (Rechargeable Lithium battery for backup memory)

Clock Accuracy

±65 sec/month (deviation at room temperature and power is OFF)*2

Touch Panel Type

Resistive Film (analog)

Touch Panel Resolution

1,024 x 1,024

Touch Panel Service Life

1,000,000 times or more

Serial (COM1)

RS-232C Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Odd or Even, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)

Serial (COM2)

RS-422/485 Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Even or Odd Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI) Connector: D-Sub9 (plug)

Ethernet (LAN)

IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX Connector: Modular jack (RJ-45) x 1

USB (TYPE-A)

Conforms to USB2.0 (TYPE-A) x 1, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m [16.4ft.] or less

USB (mini-B)

Conforms to USB2.0 (mini-B) x 1, Communication Distance: 5 m [16.4ft.] or less

SD Card

None

Model

PFXGP4301TADW

Rated Input Voltage

DC 24V

Input Voltage Limits

DC 19.2 to 28.8V

Allowable Voltage Drop

5 ms or less

Power Consumption

10.5 W or less

In-Rush Current

30 A or less

Voltage Endurance

AC 1,000 V, 20 mA for 1 min (between charging and FG terminals)

Insulation Resistance

DC 500 V, 10 Mohm or more (between charging and FG terminals)

Surrounding Air Temperature

0 to 50 centigrade degree

Storage Temperature

-20 to 60 centigrade degree

Ambient Humidity

10 to 90 % RH (Wet bulb temperature: 39 centigrade degree or less ( no condensation.)

Storage Humidity

10 to 90 % RH (Wet bulb temperature: 39 centigrade degree or less (no condensation.)

Dust

0.1 mg/m³ (10^-7 oz/ft³) or less (non-conductive levels)

Pollution Degree

For use in Pollution Degree 2 environment

Atmosphere

Free of corrosive gases

Air Pressure (altitude range)

800 to 1,114 hPa (2,000 m [6,561ft.] above sea level or less)

Vibration Resistance

IEC/EN61131-2 compliant, 5 to 9 Hz Single amplitude 3.5 mm [0.14 in.], 9 to 150 Hz Fixed acceleration: 9.8 m/s², X, Y, Z directions for 10 cycles (approx. 100 min)

Concussion Resistance

IEC/EN61131-2 compliant 147 m/s², X, Y, Z directions for 3 times

Noise Immunity

Noise Voltage: 1,000 Vp-p, Pulse Duration: 1 µs, Rise Time: 1 ns (via noise simulator)

Electrostatic Discharge Immunity

Contact Discharge Method: 6 kV (IEC/EN61000-4-2 Level 3)

Grounding

Functional grounding: Grounding resistance of 100Mohm, 2mm² (AWG 14) or thicker wire, or your country's applicable standard. (Same for FG and SG terminals)

Structure

IP65f NEMA #250 TYPE 4X/13 (on the front panel when properly installed in an enclosure)*3

Cooling Method

Natural air circulation

Weight Approx.

0.8 kg [1.8 lb] or less (display unit only)

External Dimensions

W169.5 x H137 x D59.5 mm [W6.67 x H5.39 x D2.34 in.]

Panel Cut Dimensions

W156 x H123.5 mm [W6.14 x H4.86 in.], Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.]*4
