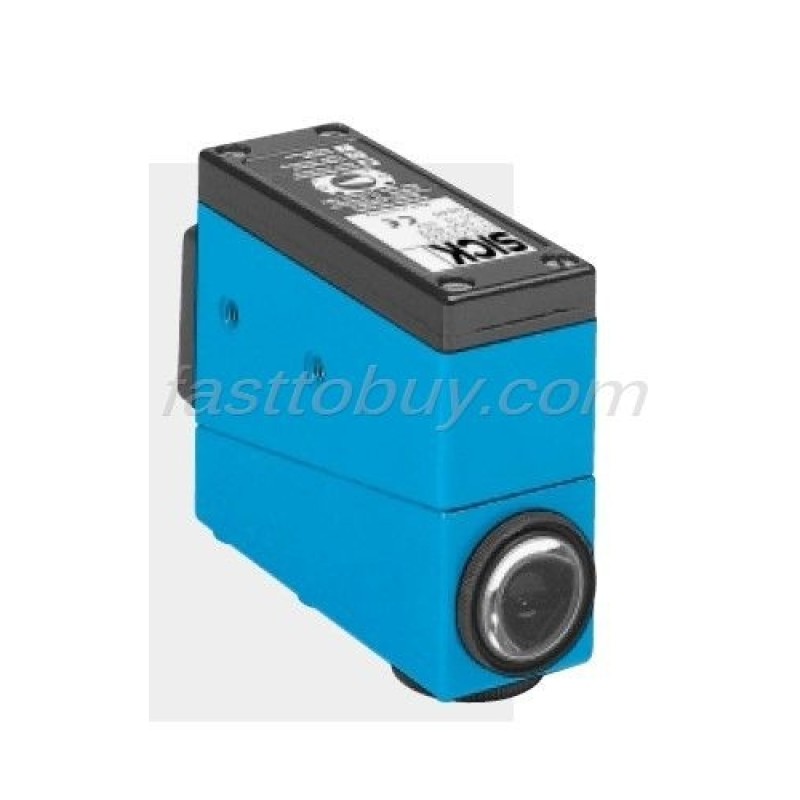

NT6-03022 SICK Color sensor NEW

NT6-03022 SICK Color sensor NEW
NT6-03022 SICK Color sensor NEW
NT6-03022 SICK Color sensor NEW
NT6-03022 SICK Color sensor NEW
NT6-03022 SICK Color sensor NEW
NT6-03022 SICK Color sensor NEWProduct Description:LED light source with two switchselectable spectr... Read More
$480.00
Ex Tax: $480.00
  • Stock: In Stock
  • Model: NT6-03022
  • Weight: 0.54kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: NT6-03022
NT6-03022 SICK Color sensor NEW

Product Description:

LED light source with two switchselectable spectral ranges

Lens position selectable

Light- or dark-switching selectable

Rapid response times

Specifications:

Scanning distance from front

9 mm ± 2 mm

edge of lens

Light type/light spot dimension

Green/1.5 x 5 mm

Red/1.5 x 4 mm

Light source1), light type

LED, red, green selectable

Light spot direction

Longitudinal

Transverse

Supply voltage VS

10...30 V DC2)

Ripple3)

< 5 V

Current consumption4)

< 80 mA

Switching outputs

Light-/dark-switching, selectable

B: HIGH = VS – < 2 V/LOW = < 2 V

PNP: HIGH = VS – < 2 V/LOW = 0 V

Output current lA max.

200 mA

Response time5)

50 μs

Max. switching frequency6)

To 10 kHz

Analogue output QA

0.15...6 V

Connection types

Cable7) with T 3104/1 plug

Cable7) without plug

Plug

VDE protection class8)

?

Enclosure rating

IP 67

Circuit protection9)

A, B, C





Ambient temperature TA

Operation -0 °C...+ 50 °C

Storage – 25 °C...+ 75 °C

Shock load

To IEC 68

Weight

Approx. 540 g

Housing material

Cast metal



1) Average service life 100,000 h at TA = + 25 °C

2) Limit values

3) May not exceed or fall short of VS tolerances

4) Without load

5) Signal transit time with resistive load

6) With light/dark ratio 1:1

7) Do not bend below 0 °C

8) Reference voltage 50 V DC

9) A = VS connections reverse-polarity protected

B = Outputs Q and QA short-circuit protected

C = Interference pulse suppression
