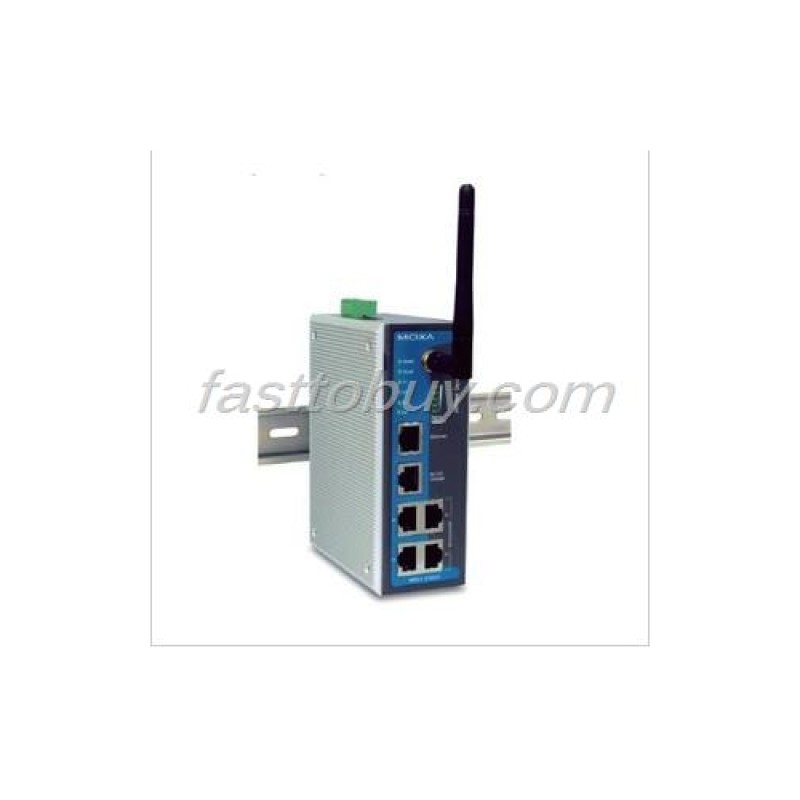

NPort W2004 MOXA Wireless serial device servers 4-port

If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:
email:[email protected]
Tel:0086-574- 88333153
We will quote you our best price to you in 24hours.

NPort W2004

Features and Benefits

Any serial port device connected to the 802.11b/g network

4 RS-232/422/485 serial, maximum speed up to 460.8 Kbps

Based on the configuration of the network, through the built-in Ethernet or WLAN configuration

Support for Window/Linux serial driver model

Support for TCP server mode client mode and UDP mode, TCP

Support for HTTPS, SSH certification, can improve the security of remote configuration

Ethernet interface

Ethernet: 10/100 M, RJ45 MDI/MDIX, automatic

Electromagnetic protection: built in 1.5 KV

Wireless local area network

Standard: IEEE 802.11b/g

Signal type: DSSS/OFDM

Transmit power

802.11b: a maximum of 20 dBm

802.11g: a maximum of 18 dBm

Receiving sensitivity: -80 dBm

Transmission rate: 54 Mbps ( maximum ) rate automatic rollback ( 54, 48, 36, 24,

18, 12, 11, 9, 6, 5.5, 2, 1 M )

Transmission distance: maximum 300 meters ( @12Mbps, open area)

Antenna connector: RP SMA

Network model: the basic model, the P2P mode

Security: WEP 64 /128 bit data encryption

Serial port

Standard: RS-232/422/485

Quantity: 4

Joint: RJ45, 15KV ESD protection provided all serial port

Console port console port: RS-232

RS-485 data direction control: ADDC ™( patent )

Serial communication parameters

Data bits: 5, 6, 7, 8

Stop bits: 1, 1.5, 2

Parity bits: None, Even, Odd, Space, Mark

Flow control: RTS/CTS, XON/XOFF

Rate: 50 BPS ~ 460.8 K BPS

The serial signal

RS-232:TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422:Tx+, Tx-, Rx+, Rx-, GND

RS-485 ( line 2 ) :Data+, Data-, GND

RS-485 ( line 4 ) :Tx+, Tx-, Rx+, Rx-, GND

Software features

Protocol: ICMP, IP, TCP, UDP, DHCP, Telnet, DNS, SNMP,

HTTP, SMTP, SNTP, SSH, HTTPS

Configuration: Web Console, Serial Console, Telnet Console

Configuration tools: Search Utility and NPort ®NPort ®Windows Driver

Manager

Drive: Windows Real COM driver support ( for Windows 95,

In 98, ME, NT, 2000, XP, 2003, Vista, XP x64, 2003 x64,

Vista x64 ), Linux Real TTY driver, Fixed TTY driver ( for

SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1,

SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x,

HP-UX 11i )

Physical characteristics

Shell: SECC plate ( 1 mm ) IP30 level protection

Weight: 873 G

Size:

No antenna: 45.8 x 135 x 105 mm ( 1.80 x 5.31 x 4.13 in )

An antenna: 45.8 x 204 x 142 mm ( 3.94 x 8.03 x 5.59 in )

Environmental parameters

Operating temperature: 0 ~ 60 ° C ( 32 ~ 140 ° F )

Working humidity: 5 ~ 95%RH

Storage temperature: -20 ~ 85 ° C ( -4~185° F )

Power demand

Power input: 12 ~ 48 VDC

Power consumption: 685 mA @ 12 V, 340 mA @ 48 V, 184 mA @ 24 V

Safety certification

EMC:CE ( EN55022 and EN55024 Class A, ETSI EN 301

489-17, ETSI EN 301 489-1 ), FCC ( Part 15 Subpart C,

Part 17 Subpart B Class A )

Security: UL ( UL60950-1 ), TÜ V ( EN60950-1 )
