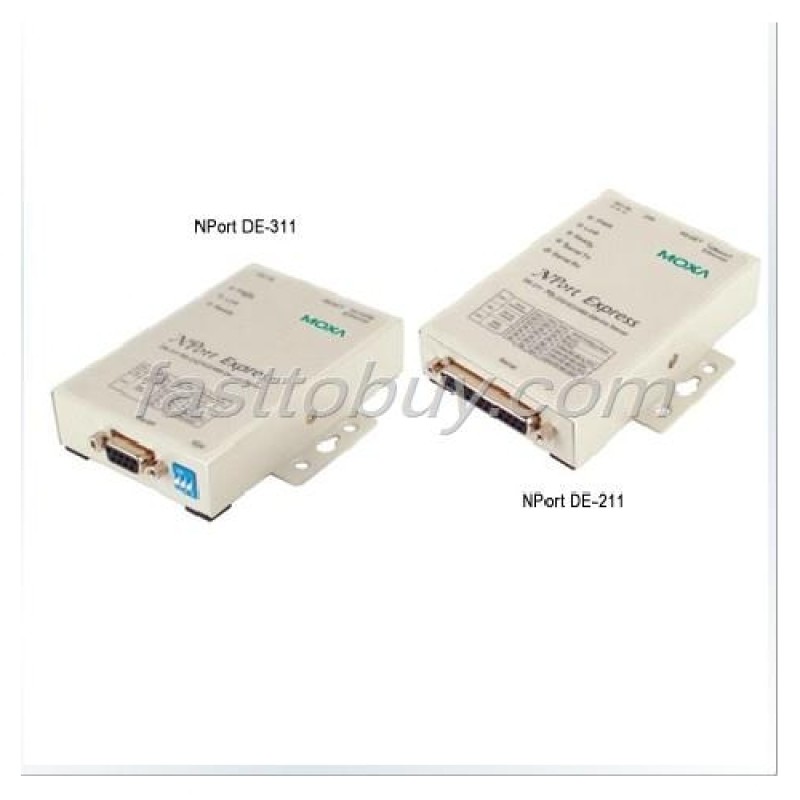

NPort DE-211 MOXA Serial device servers 10M 1-port RS-232/422/485

If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:
email:[email protected]
Tel:0086-574- 88333153
We will quote you our best price to you in 24hours.

NPort DE-211

Ethernet port number: 1

Rate:

NPort® DE-211:10 Mbps, adaptive MDI/MDIX

NPort® DE-311:10/100 Mbps, adaptive MDI/MDIX

Joint: 8-pin RJ45

Electromagnetic isolation protection: built in 1.5 KV

Serial number: 1

Serial standard: RS-232/422/485 (by DIP switch selection )

Port type:

NPort® DE-211:DB25 hole type

NPort® DE-311:DB9 hole type

Serial linear protection: the signal is 15 KV ESD

RS-485 data flow: ADDC ®(patent protection of automatic data direction control function )

Serial communication parameters data bits: 5, 6, 7, 8

Stop bits: 1, 1.5, 2

Parity bits: None, Even, Odd, Space, Mark

Flow control: RTS/CTS, XON/XOFF

Baud rate: 50 ~ 230.4 Kbps

Serial signal RS-232:TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422:Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-,

GND

RS-485 ( line 2 ) :Data+, Data-, GND

RS-485 ( line 4 ) :Tx+, Tx-, Rx+, Rx-, GND ( DE-211 only)

Network protocol software features: DHCP, BOOTP, Telnet, TCP, UDP, IP, ICMP,

ARP

Configuration: Serial Console, Telnet Console, Windows Utility

Real time Windows COM drive: Windows 95, 98, ME, NT,

In 2000, XP x86/x642003 x86/x64, Vista x86/x642008

X86/x64, Embedded CE 5.0/6.0, XP Embedded

Fixed TTY driver:: SCO Unix, SCO OpenServer, UnixWare

In 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10,

FreeBSD, AIX 5.x, HP-UX 11i

Linux: Linux kernel 2.4.x real-time TTY drive, 2.6.x

Mechanical properties of shell: metal, IP30 protection grade

Weight: 480 G

Size:

No hanging ear: 67 x 100.4 x 22 mm ( 2.64 x 3.95 x 0.87 in )

A hanging ear: 90.2 x 100.4 x 22 mm ( 3.55 x 3.95 x 0.87 in )

Working environment temperature: 0 ~ 55 ° C ( 32 ~ 131 ° F )

Working humidity: 5 ~ 95% RH

Storage temperature: -40 ~ 85 ° C ( -40 ~ 185 ° F )

Power supply input voltage:

DE-211:12 ~ 30 VDC

DE-311:9 ~ 30 VDC

Power consumption:

NPort® DE-211:180 mA @ 12 V, 100 mA @ 24 V

NPort® DE-311:300 mA @ 9 V, 150 mA @ 24 V

On the certification of EMC:CE ( EN55022 Class B, EN55024 Class, FCC B )

Part 15 Subpart B

Security: UL ( UL60950 ), TÜ V ( EN60950 )

Medical: EN60601-1-2 Class B, EN55011 ( DE-311 only)

MTBF ( meantime between failures ):

NPort DE-211:347822 hours

NPort DE-311:225529 hours
