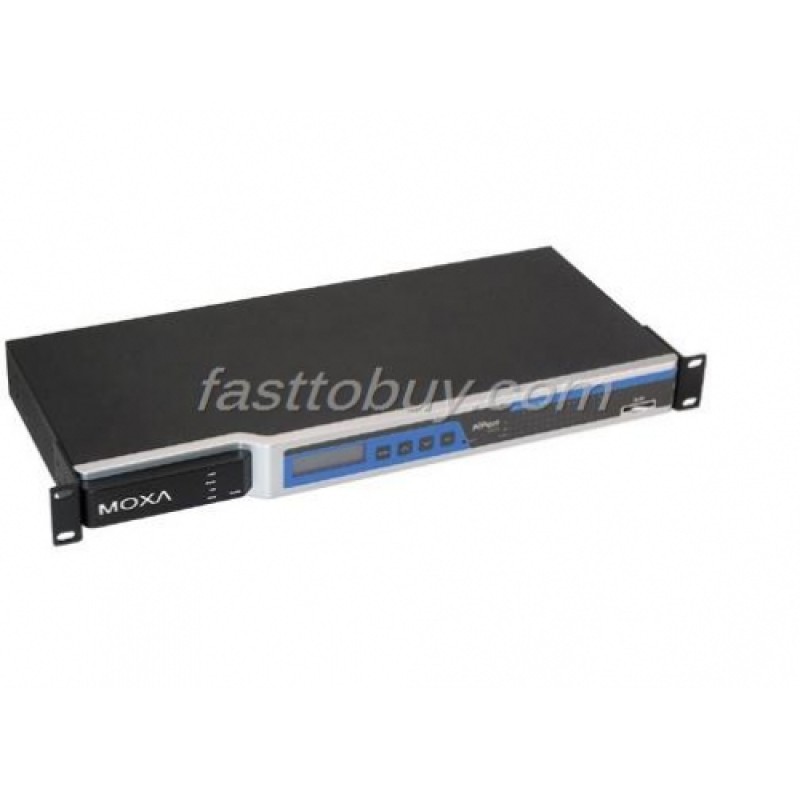

NPort 6610-32 MOXA Terminal servers 32-port RS-232 secure version

• Ethernet Interface

Number of Ports

1

Speed

10/100 Mbps, auto MDI/MDIX

Connector

8-pin RJ45

Magnetic Isolation

1.5 KV built-in

• Optical Fiber Interface (with network module)

Fiber Port

100BaseFX, SC connector

Distance

Multi-mode: 0 to 4 km, 1310 nm (62.5/125 µm, 500 MHz*km)
Single mode: 0 to 40 km, 1310 nm (9/125 µm, 3.5 PS/(nm*km))

Min. TX Output

Multi-mode: -20 dBm
Single-mode: -5 dBm

Max. TX Output

Multi-mode: -10 dBm
Single-mode: 0 dBm

Sensitivity

Multi-mode: -34 to -30 dBm
Single-mode: -36 to -32 dBm

• Serial Interface

Number of Ports

8, 16, or 32

Serial Standards

NPort 6610: RS-232
NPort 6650: RS-232/422/485

Connector

8-pin RJ45

RS-485 Data Direction Control

ADDC® (Automatic Data Direction Control)

Serial Line Protection

15 KV ESD protection for all signals

Console Port

Dedicated RS-232 console port on rear panel (8-pin RJ45)

• Serial Communication Parameters

Data Bits

5, 6, 7, 8

Stop Bits

1, 1.5, 2

Parity

None, Even, Odd, Space, Mark

Flow Control

RTS/CTS, DTR/DSR, XON/XOFF

Baudrate

50 bps to 921.6 Kbps (supports non-standard baudrates)

Pull High/Low Resistor for RS-485

1 KΩ, 150 KΩ

Terminator for RS-485

120 Ω

• Serial Signals

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

• Memory Expansion Slot

Slot Type

SD socket (supports up to 2 GB)

• Software

Network Protocols

ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, ARP, PPPoE

Security Protocols

DES, 3DES, AES, SSH, SSL

Configuration Options

Web Console, Serial Console, Telnet Console, Windows Search Utility

Windows Real COM Drivers

Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7 x86/x64, Embedded CE 5.0/6.0, XP Embedded

Fixed TTY Drivers

SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x

Linux Real TTY Drivers

Linux kernel 2.4.x, 2.6.x

Management

SNMP MIB-II

IP Routing

Static, RIP-I, RIP-II

• Operation Modes

Standard

Real COM, TCP Server, TCP Client, UDP, Pair Connection, RFC2217, Terminal, Reverse Telnet, Ethernet Modem, Printer, PPP, Disabled

Secure

Secure Real COM, Secure TCP Server, Secure TCP Client, Secure Pair Connection, SSH, Reverse SSH

• Applications

Terminal Sessions

8 sessions per port

• Physical Characteristics

Housing

Metal, IP30 protection

Weight

NPort 6600-8: 3460 g
NPort 6600-16: 3580 g
NPort 6600-32: 3600g

Dimensions

Without ears: 440 x 195 x 44 mm (17.32 x 7.68 x 1.73 in)
With ears: 480 x 195 x 44 mm (18.9 x 7.68 x 1.73 in)

• Environmental Limits

Operating Temperature

Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature

-40 to 75°C (-40 to 167°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

• Power Requirements

Input Voltage

AC Models: 100 to 240 VAC
DC Models: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)

Power Consumption

AC Models: 285 mA @ 100 VAC, 190 mA @ 240 VAC
DC Models: 293 mA @ 48 VDC

Alarm Contact

Relay output with current carrying capacity of 1 A @ 24 VDC

Power Line Protection

1 KV burst (EN61000-4-4: EFT/B), 0.5 KV surge (EN61000-4-5)

• Standards and Certifications

Safety

UL 60950-1, EN 60950-1

EMC

CE, FCC

EMI

EN 55022 Class A, FCC Part 15 Subpart B Class A

EMS

EN 55024,
EN 61000-4-2 (ESD) Level 2/3,
EN 61000-4-3 (RS) Level 2,
EN 61000-4-4 (EFT) Level 2,
EN 61000-4-5 (Surge) Level 2,
EN 61000-4-6 (CS) Level 2,
EN 61000-4-8 Level 1,
EN 61000-4-11

Freefall

IEC-68-2-6, IEC-68-2-34, IEC-68-2-32

Vibration

IEC-68-2-6, IEC-68-2-34

Green Product

RoHS, CRoHS, WEEE

• Reliability

Alert Tools

Built-in buzzer and RTC (real-time clock)

Automatic Reboot Trigger

Built-in WDT (watchdog timer)

MTBF (mean time between failures)

NPort 6610-8: 135,891 hrs NPort 6610-16: 102,373 hrs NPort 6610-32: 68,707 hrs NPort 6650-8: 135,370 hrs NPort 6650-16: 101,783 hrs NPort 6650-32: 68,177 hrs
