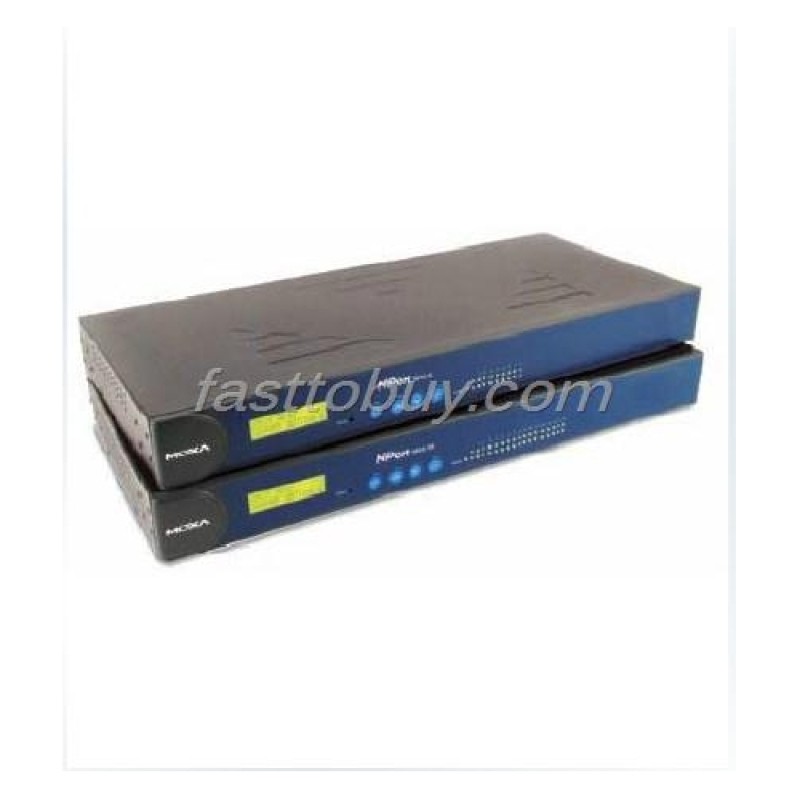

NPort 5610-16 MOXA Serial device servers 16-port RS-232

If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:
email:[email protected]
Tel:0086-574- 88333153
We will quote you our best price to you in 24hours.

NPort 5610-16

Ethernet: 10/100 Mbps, RJ45 LAN

Protection: the 1.5 embedded KV electromagnetic isolation

Serial port

NPort5610

Interface: RS-232, 8-pin RJ45

Signal: TxD, RxD, RTS, CTS, DTR, DSR, DCD

NPort5630

Interface: RS-232, 8-pin RJ45

Signal:

RS-422:Tx+, Tx-, Rx+, Rx-, GND

RS-485 ( line 2 ) :Data+, Data-, GND

RS-485 ( line 4 ) :Tx+, Tx-, Rx+, Rx-, GND

RS-485 data flow: enjoy the patent protection of the automatic data direction control function

Can ( ADDC ™)

NPort 5650

Interface: RS-232/422/485, 8-pin RJ45

Signal:

RS-232:TxD, RxD, RTS, CTS, DTR, DSR, GND, DCD

RS-422:Tx+, Tx-, Rx+, Rx-, GND

RS-485 ( line 2 ) :Data+, Data-, GND

RS-485 ( line 4 ) :Tx+, Tx-, Rx+, Rx-, GND

RS-485 data flow: enjoy the patent protection of the automatic data direction control function

Can ( ADDC ™)

Signal protection: all signals provides 15 KV ESD break protection

Power line protection: 1 KV Burst ( EFT, EN61000-4-4 )

0.5 KV Surge, EN61000-4-5

Optical fiber: distance:

Multimode: 0? 2 km, 1310 nm ( 62.5/125 μm, 500 MHz*km )

Single mode: 0? 40 km, 1310 nm ( 9/125 μm, 3.5 PS/ ( nm*km )

Minimum TX output:

Multimode: -20 dBm

Single mode: 0? 40 km, -20 dBm

The maximum TX output:

Multimode: -14 dBm

Single mode: 0? 40 km, 0 dBm

Sensitivity: -36 ~ -32 dBm ( single ), dBm ( -34? -30 multimode )

Inline function of embedded HMI LCM display, with 4 keys

Built-in buzzer

Real time clock

Embedded watchdog real-time clock

Serial communication parameters check bits: None, Even, Odd, Space, Mark

Data bits: 5, 6, 7, 8

Stop bits: 1, 1.5, 2

Flow control: RTS/CTS, DTR/DSR (NPort only 5610), XON/XOFF

Rate: 50 BPS? 921.6 Kbps

Software features: ICMP, IP protocol, TCP, UDP, DHCP, BootP, Telnet, DNS, SNMP,

HTTP, SMTP, SNTP

Tools: the administrator of the NPort used in Windows 95/98/ME/NT/2000/

XP/2003

Driving support: Windows 95/98/ME/NT/2000/XP/2003/XP

X64/2003 x64 COM driver, Linux real TTY driver, SCO Unix,

SCO OpenServer 5, UnixWare 7, UnixWare 2.1.x, SVR4.2

Configuration: Web browser / serial telnet console, or Windows tools

Power supply power supply input: 100? 240 VAC, 47? 63 Hz, or±48 VDC

Power consumption: 5610-16:200 mA@100V, 145 mA@ 240V

5610-16-48V:215 mA ( @48V max. )

5630-16:212 mA@100V, 130 mA@240V

5630-16-48V:215 mA ( @48V max. )

Mechanical properties of materials: SECC metal shell ( 1mm )

Working environment temperature: 0? 55? C ( 32? 131? F, 5? 95% RH )

Storage temperature: -20 ? 75? C ( -4 ? 167? F, 5? 95% RH )

Through the EMC certification:

CE:EN55022 Class A/EN 55024

IEC 61000-4-12 ( for NPort 5610-16, NPort5610-8-48 )

FCC:FCC Part 15 Subpart B Class A

Safety:

UL:UL60950-1

TÜ V:EN60950-1
