We use cookies 🍪
We use cookies and other similar technologies to improve your browsing experience and the functionality of our site. Learn more in our Privacy Policy.

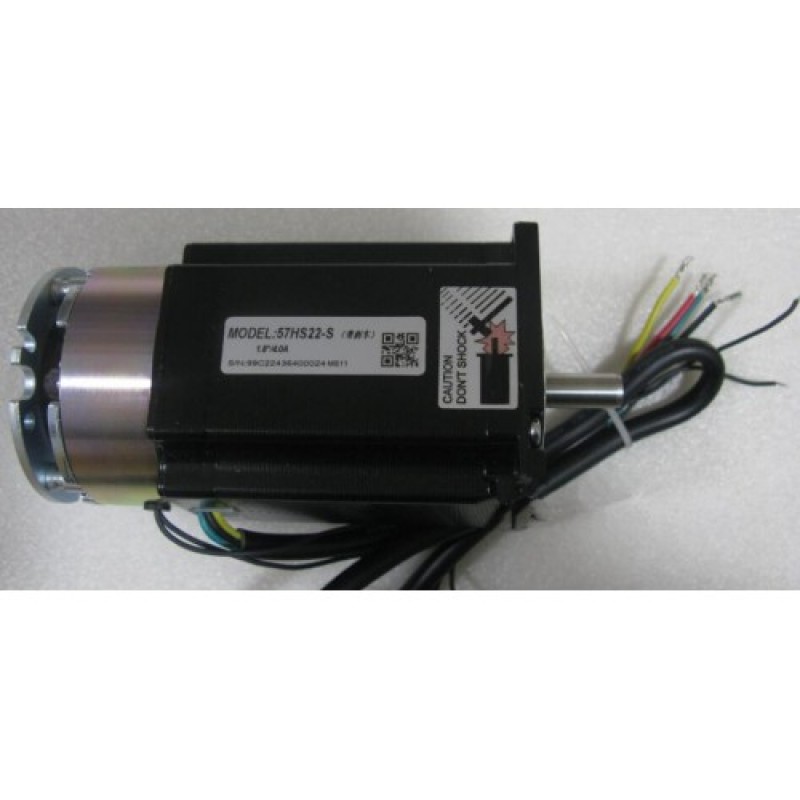

NEMA23 2.2NM 314oz-in 2ph 3.5A D=8mm Brake Stepper Motor 57HS22-S Laser Machine

NEMA23  2.2NM 314oz-in 2ph 3.5A D=8mm Brake Stepper Motor 57HS22-S Laser Machine
NEMA23  2.2NM 314oz-in 2ph 3.5A D=8mm Brake Stepper Motor 57HS22-S Laser Machine
NEMA23  2.2NM 314oz-in 2ph 3.5A D=8mm Brake Stepper Motor 57HS22-S Laser Machine
NEMA23  2.2NM 314oz-in 2ph 3.5A D=8mm Brake Stepper Motor 57HS22-S Laser Machine
NEMA23  2.2NM 314oz-in 2ph 3.5A D=8mm Brake Stepper Motor 57HS22-S Laser Machine
NEMA23  2.2NM 314oz-in 2ph 3.5A D=8mm Brake Stepper Motor 57HS22-S Laser Machine
NEMA23 2.2NM 314oz-in 2ph 3.5A D=8mm Brake Stepper Motor 57HS22-S Laser Machine
 NEMA23  2.2NM 314oz-in 2ph 3.5A D=8mm Brake Stepper Motor 57HS22-S Laser MachineTypical Application... Read More
$37.00
Ex Tax: $37.00
  • Stock: In Stock
  • Model: NEMA23
  • Weight: 1.50kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: NEMA23

 NEMA23  2.2NM 314oz-in 2ph 3.5A D=8mm Brake Stepper Motor 57HS22-S Laser Machine

Typical Applications

Suitable for applications require high reliability, high performance, low cost stepper systems, such as CNC routers, small and medium size milling or engraving machines, laser machines, textile equipment, medical devices, assembly machines, pick-and-place devices, etc.

57HS Series - 2 Phase NEMA 23 Stepper Motors

Highlights

1.  2 phase 1.8° stepping angle

2.  NEMA 23

3.  Holding toque of 0.9 N*m to 2.2 N*m (127.4 - 312 oz-in)

4.  High precision

5.  Smooth movement

6.  Low motor heating

7.  Low movement noise

General Specifications

Angle Accuracy

+5%(full step, no load)

Temperature Rise

80°C Max

Ambient Temperature

-10°C -- +50°C

Insulation Resistance

100MΩmin.500VDC

Dielectric Strength

500VAC for one minute

Shaft Radial Play

0.06 Max.(450g-load)

Shaft Axial Play

0.08 max.(450g-load)

electric parameter

Model

57HS09

57HS13

57HS22-A

57HS22-L

57HS22-C

57HS22-S

Step Angle

1.8

1.8

1.8

1.8

1.8

1.8

Holding torque

0.9NM

1.3

2.2

2.2

2.2

2.2

Rated current

2.8A

2.8

3.5

3.5

3.5

3.5

# of Leads

8

8

8

8

8

8

 Phase Inductance

1.2mh

2.1

1.8

1.8

1.8

1.8

Phase resistance

0.8

1

0.8

0.8

0.8

0.8

Rotor inertia

260 g.cm2

460

460

460

460

460

Length (mm)

56mm

76

80

80

80

80

Characteristic







Synchronous pulley

Double Shaft

Brake

Match Drives

DM432/DM556/M542

57HS22 shaft diameter: 8mm with platform

57HS22-L with Synchronous pulley:

Number of gears: 24

Spacing: 3mm

Width: 18mm

PLCAGE provides tens of models of stepper drives. From 2 phase to 3 phase, analog to DSP digital, DC input (18-80) to 110/120 AC or 220 / 220 AC input, PLCAGE can provide the right stepper drives to satisfy the needs of your stepper control systems. PLCAGE stepper products are well-known because of their wide choices, excellent performance, easy to use, high reliability, and low costs.

IF you need the suitable drive to match the motor. please do contact us for a better solution and optimal price.

Be the first to write a review for this product.

Write a review

Note: HTML is not translated!
Bad           Good
