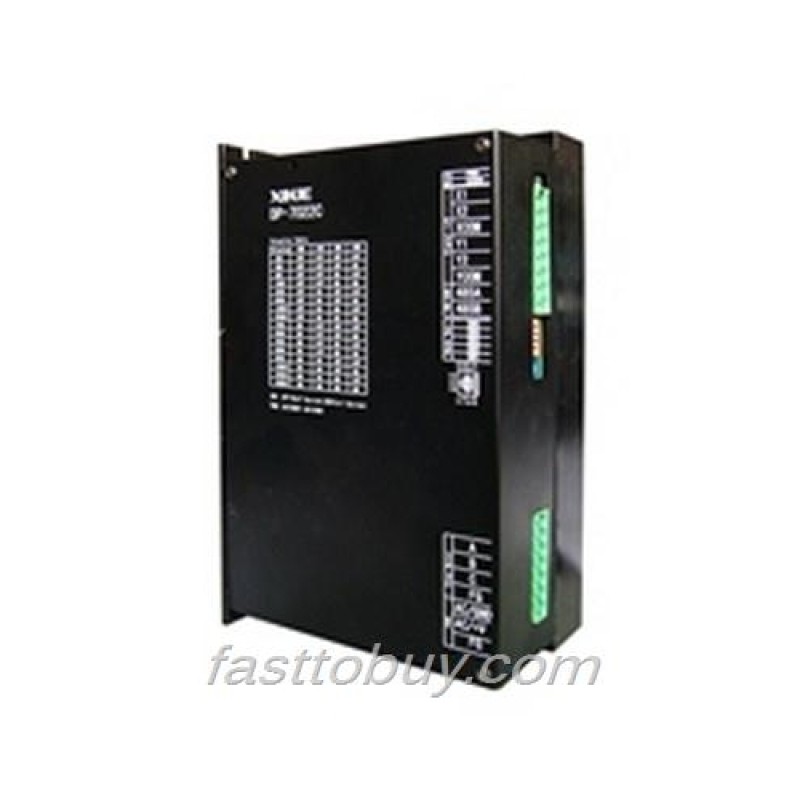

Xinje 3 Phase Stepper Drive Drive DP-7022C Up to 220VAC/336VDC 7.0A 200Hz New
Features:
Digital control, strong capacity of interference resistance, low motor noise
Power supply up to 220VAC or 336VDC, output current can be 7.0A
Two working modes: Internal pulse mode and external pulse mode
Dynamic selectable subdivision, any levels for current setting
Can drive any 3,6 lines three phases stepper motor below 7.0A
Protection for over voltage, over current, lack phase, under voltage, output short circuit
Specifications:
Item | Min | Typical | Max |
Input power supply(VAC) | 200 | 220 | 240 |
Input power supply(VDC) | 280 | 310 | 336 |
Output current virtual value(A) | 0 | - | 7 |
Logical input current(mA) | 4 | 7 | 16 |
Stepper pulse frequency(KHz) | 0 | - | 200 |
Insulated resistor(MΩ) | 500 | - | - |
Environment temperature | 0 °C ~50 °C | ||
Max working temperature | 60 °C | ||
Humidity | 40~90% RH(no dew or drop) | ||
Shake | 5.9m/s2 Max | ||
Reservation temperature | -20 °C ~65 °C | ||
Current setting
Set current through potentiometer, can set any current levels between 0~7.0A.
Subdivision
Set the subdivision through DIP switch SW2~SW5:
Subdivision time | step/circle (1.8°/step) | SW2 | SW3 | SW4 | SW5 |
1 | 200 | OFF | OFF | OFF | OFF |
2 | 400 | OFF | OFF | OFF | ON |
4 | 800 | OFF | OFF | ON | OFF |
8 | 1600 | OFF | OFF | ON | ON |
16 | 3200 | OFF | ON | OFF | OFF |
32 | 6400 | OFF | ON | OFF | ON |
64 | 12800 | OFF | ON | ON | OFF |
128 | 25600 | OFF | ON | ON | ON |
5 | 1000 | ON | OFF | OFF | OFF |
10 | 2000 | ON | OFF | OFF | ON |
20 | 4000 | ON | OFF | ON | OFF |
25 | 5000 | ON | OFF | ON | ON |
40 | 8000 | ON | ON | OFF | OFF |
50 | 10000 | ON | ON | OFF | ON |
100 | 20000 | ON | ON | ON | OFF |
200 | 40000 | ON | ON | ON | ON |
