- Model: DP504-L
- Weight: 1.00kg
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.
Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:
email:[email protected]
Tel:0086-574- 88333153
We will quote you our best price to you in 24hours.

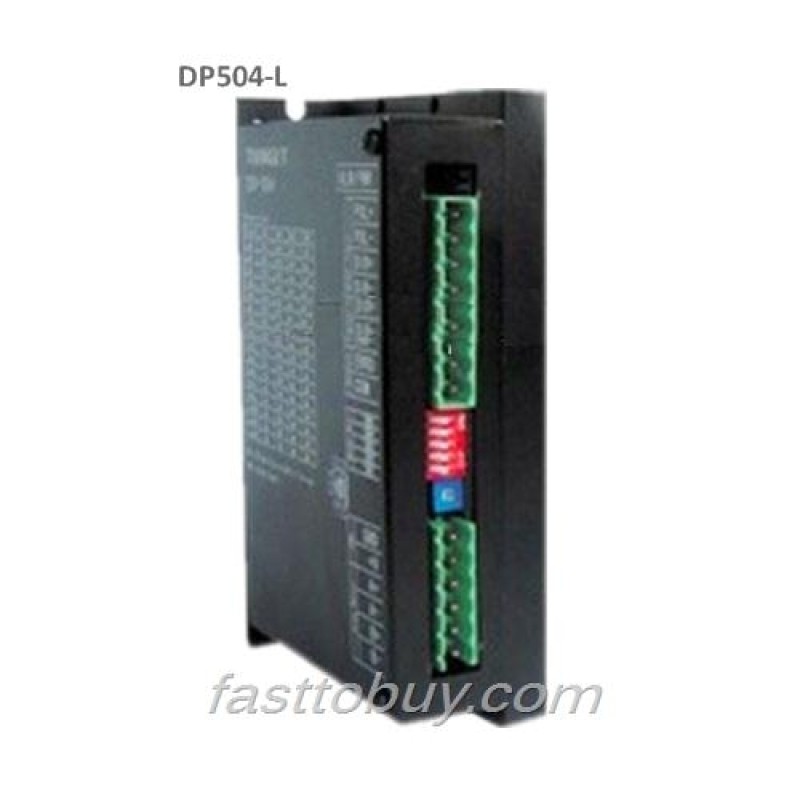

Features:
Low motor running noise, complete digital control
Power supply up to 40VDC
Output current up to 5.0A
Dynamic selectable subdivision up to 200
Can drive any 4, 6, 8 lines two phases stepper motor below 5.0A
Optical isolation input, over current and over voltage protection
Specifications:
Item | Minimum | Type | Maximum |
Input Voltage(VDC) | 20 | 36 | 40 |
Output Current(A) | 0 | - | 5 |
Logic input current(mA) | 4 | 7 | 16 |
Step Pulse Frequency(KHz) | 0 | - | 200 |
Insulated Resistance(MΩ) | 500 | - | - |
Ambient Temperature | 0 °C ~50 °C | ||
Peak Temperature | 70 °C | ||
Humidity | 40~90% RH(No condensing, dry bulb) | ||
Resistance | 5.9m/s2 Max | ||
Storage Temperature | -20 °C ~65 °C | ||
External Dimensions | 138×85×38mm | ||
Current setting
Can set any current levels between 0~5.0A with single-turn potentiometer.
Product type
DP504: pulse signal connects to 24V; DP504-L: pulse signal connects to 5V.
Subdivision setting
subdivision times | steps/round(1.8°/step) | SW2 | SW3 | SW4 | SW5 |
1 | 200 | OFF | OFF | OFF | OFF |
2 | 400 | OFF | OFF | OFF | ON |
4 | 800 | OFF | OFF | ON | OFF |
8 | 1600 | OFF | OFF | ON | ON |
16 | 3200 | OFF | ON | OFF | OFF |
32 | 6400 | OFF | ON | OFF | ON |
64 | 12800 | OFF | ON | ON | OFF |
128 | 25600 | OFF | ON | ON | ON |
5 | 1000 | ON | OFF | OFF | OFF |
10 | 2000 | ON | OFF | OFF | ON |
20 | 4000 | ON | OFF | ON | OFF |
25 | 5000 | ON | OFF | ON | ON |
40 | 8000 | ON | ON | OFF | OFF |
50 | 10000 | ON | ON | OFF | ON |
100 | 20000 | ON | ON | ON | OFF |
200 | 40000 | ON | ON | ON | ON |
