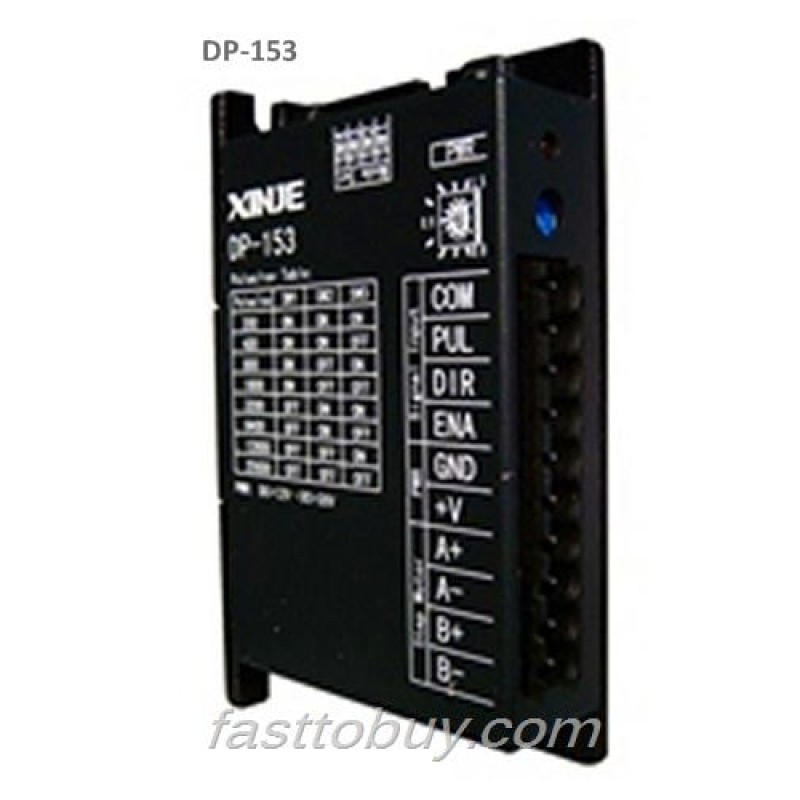

Xinje 2 Phase Stepper Drive DP-153 Up to 30VDC 1.5A 200Hz 128 Subdivision New

Xinje 2 Phase Stepper Drive DP-153 Up to 30VDC 1.5A 200Hz 128 Subdivision New
Xinje 2 Phase Stepper Drive DP-153 Up to 30VDC 1.5A 200Hz 128 Subdivision New
Xinje 2 Phase Stepper Drive DP-153 Up to 30VDC 1.5A 200Hz 128 Subdivision New
Xinje 2 Phase Stepper Drive DP-153 Up to 30VDC 1.5A 200Hz 128 Subdivision New
Xinje 2 Phase Stepper Drive DP-153 Up to 30VDC 1.5A 200Hz 128 Subdivision New
Xinje 2 Phase Stepper Drive DP-153 Up to 30VDC 1.5A 200Hz 128 Subdivision NewIf you need more than 1... Read More
$67.00
Ex Tax: $67.00
  • Stock: In Stock
  • Model: Xinje
  • Weight: 1.00kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: Xinje
Xinje 2 Phase Stepper Drive DP-153 Up to 30VDC 1.5A 200Hz 128 Subdivision New

If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:
email:[email protected]
Tel:0086-574- 88333153
We will quote you our best price to you in 24hours.

Features:

Low motor running noise

Power supply up to 30VDC

Output current up to 1.5A

Dynamic selectable subdivision up to 128

Can drive any 4, 6, 8 lines two phases stepper motor below 1.5A

Optical isolation input

Over current and over heat protection

Auto semi-current lock, output short circuit protection

Specifications:

Product type

DP153: pulse signal connects to 24V; DP153-L: pulse signal connects to 5V.

Item

Minimum

Type

Maximum

Input Voltage(VDC)

12

24

30

Output Current(A)

0

-

5

Logic input current(mA)

4

7

16

Step Pulse Frequency(KHz)

0

-

200

Insulated Resistance(MΩ)

500

-

-

Ambient Temperature

0 °C ~50 °C

Peak Temperature

60 °C

Humidity

40~90% RH(No condensing, dry bulb)

Resistance

5.9m/s2 Max

Storage Temperature

-20 °C ~65 °C

Current setting

Can set any current levels between 0~1.5A with single-turn potentiometer.

Subdivision setting

Subdivision time

step/circle(1.8°/step)

       SW1

SW2

SW3

1

200

ON

ON

ON

2

400

ON

ON

OFF

4

800

ON

OFF

ON

8

1600

ON

OFF

OFF

16

3200

OFF

ON

ON

32

6400

OFF

ON

OFF

64

12800

OFF

OFF

ON

128

25600

OFF

OFF

OFF





Extension Reading

Xinje OP,HMI,Stepper Drive. PLC are widely used on food processing machine, automatic hydraulic machine, packaging machine, sleeve labeling machine, bag making machine, temperature control system, central air conditioning, production control and other industries.
