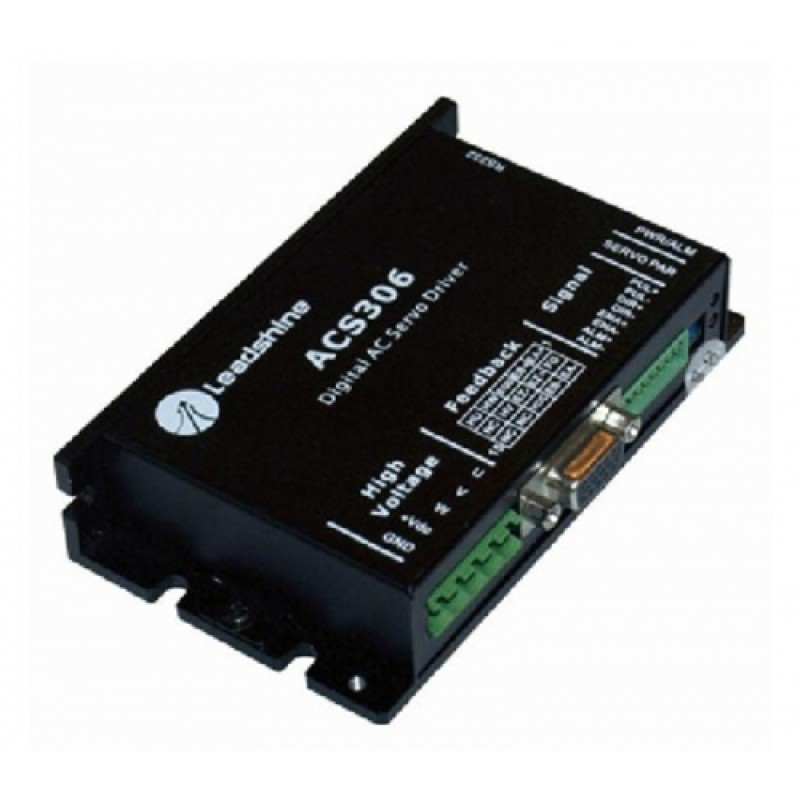

CNC brushless DC servo Drive 6A 18-30VDC Matching 10-180W Motor ACS306 Leadshine

ACS306

Leadshine's fully digital AC servo drive ACS306 is developed with 32-bit DSP based on advanced control algorithm. Since its input commands are PUL/DIR signals, the users can upgrade stepping drives to the ACS306 without changing control systems. The ACS306 can offer high precision, high speed and high reliability performance, and widely used in inkjet printers, engraving machines, and etc. A built-in controller can be used for testing and tuning. PC based and handheld configuration & tuning tools can meet different tuning environments or requirements. The ACS306 can drive both DC brushless and AC servo motors. But it is more suitable for the DC brushless servo motors. Compare to ACS606, the ACS306 has smaller size and additional alarm (fault) signal output to indicate error.

Features

Advance DSP current control technology

Step & Dir, or CW/CCW control

High precision; smooth & quiet motor movement

Input voltage: 20-30 VDC

Continuous current: 6 A

Peak current: 15A

Capable of driving 10 - 180 W brushless servo motors

Electronic gear rate from 1/255 to 255

Built-in motion profile for servo tuning and testing

Small size, surface-mount technology

Specifications

Typical Connecitions

Application

Suitable for inkjet printers, dispensers, electronic processing equipment, automatic capture equipment, special machine tools, packaging equipment, medical equipment, imaging detection equipment and other automated equipment. Users expect minimal vibration, low noise, high precision and high-speed devices, the better.
