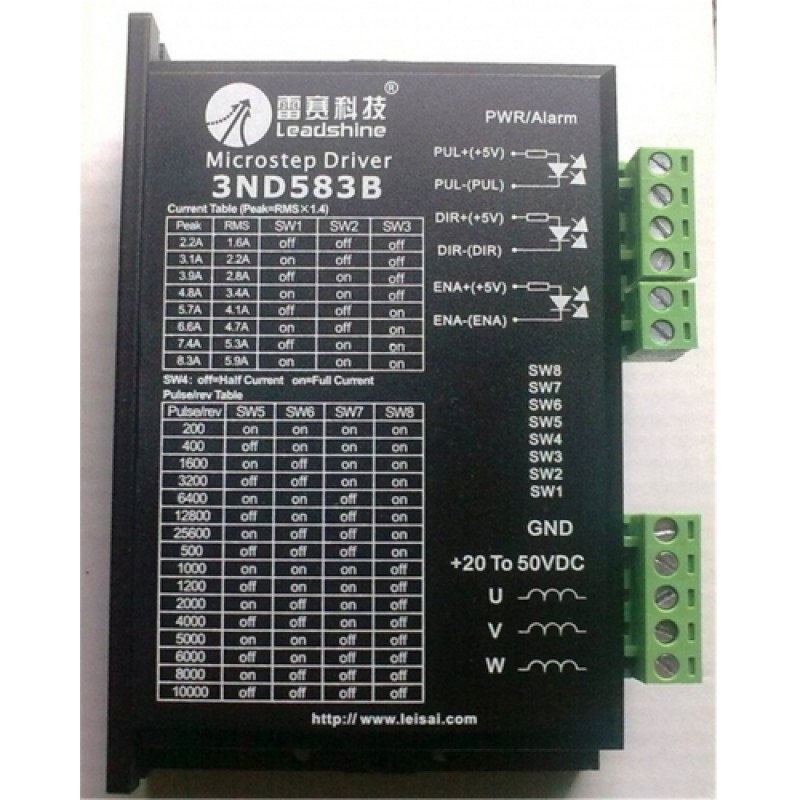

Stepper Drive 3ph 2.2~8.3A 20~50VDC Laser Cutting Machine Matching 57mm NEMA23 86mm NEMA34 motor 3ND583B Leadshine
Features
High performance, low noise and lost cost
Low driver heating and low motor heating
Supply voltage up to 50 VDC
Output current up to 8.3A (RMS 5.9A)
Input signal TTL compatible
Automatic idle-current reduction
Suitable for 3-phase stepping motors, including 3 lead and 6 lead motors
Optically isolated differential input signals, pulse frequency up to 300 KHz
8 selectable resolutions up to 10000 steps/rev
DIP switch current setting with 16 different values
PUL/DIR & CW/CCW modes optional
Over-voltage, short-voltage, over-current and short-circuit protection
Small size for easy mounting
Specifications
Parameters | 3ND583B | |||
Min | Typical | Max | Unit | |
Output current | 2.1(1.5A RMS) | - | 8.3 (5.9 RMS) | A |
Supply voltage | 20 | 36 | 50 | VDC |
Logic signal current | 7 | 10 | 16 | mA |
Pulse input frequency | 0 | - | 300 | kHz |
Isolation resistance | 500 | - | - | Mohm |
Application Fields
laser cutting machine
