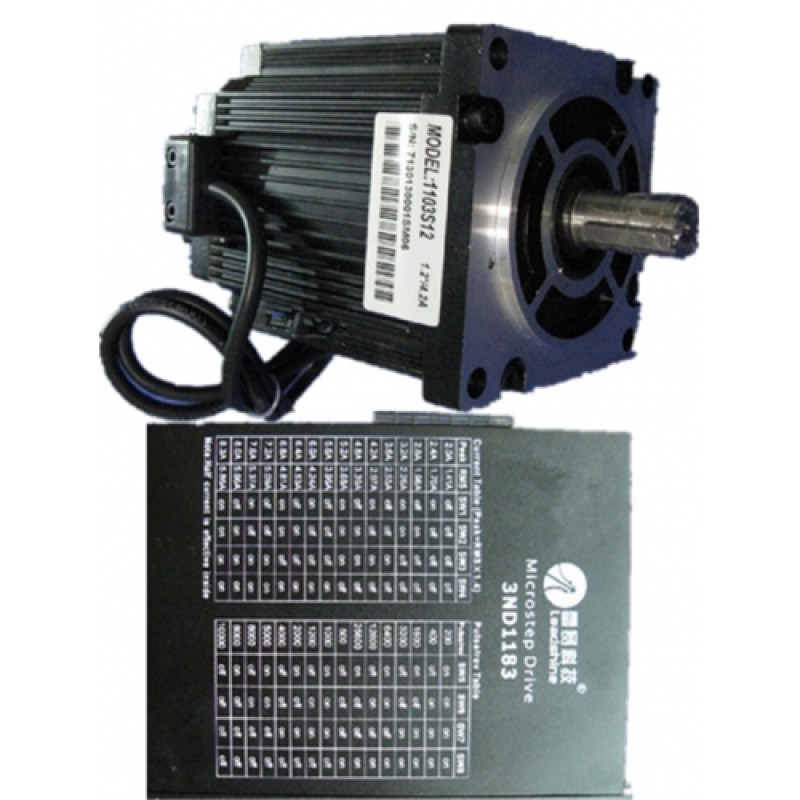

Leadshine NEMA42 110mm 1700oz-in 12N.M 80-150VAC 3phase Stepper motor Drive kits 1103S12+3ND1183

Leadshine NEMA42 110mm 1700oz-in 12N.M 80-150VAC 3phase Stepper motor Drive kits 1103S12+3ND1183
Leadshine NEMA42 110mm 1700oz-in 12N.M 80-150VAC 3phase Stepper motor Drive kits 1103S12+3ND1183
Leadshine NEMA42 110mm 1700oz-in 12N.M 80-150VAC 3phase Stepper motor Drive kits 1103S12+3ND1183
Leadshine NEMA42 110mm 1700oz-in 12N.M 80-150VAC 3phase Stepper motor Drive kits 1103S12+3ND1183
Leadshine NEMA42 110mm 1700oz-in 12N.M 80-150VAC 3phase Stepper motor Drive kits 1103S12+3ND1183
 Leadshine NEMA42 110mm 1700oz-in 12N.M 80-150VAC 3phase Stepper motor Drive kits 1103S12+3ND11831... Read More
$338.00
Ex Tax: $338.00
  • Stock: In Stock
  • Model: NEMA42
  • Weight: 10.00kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: NEMA42

 Leadshine NEMA42 110mm 1700oz-in 12N.M 80-150VAC 3phase Stepper motor Drive kits 1103S12+3ND1183

1103S12+3ND1183

Stepper Motor 1103S12

General Specifications

Angle Accuracy

0.06 degree (full step, no load)

Temperature Rise

80K

Ambient Temperature

temperature-10°C -- +50°C; humidity: 85% MAX

Insulation Resistance

100MΩmin.500VDC

Dielectric Strength

1000VAC for one minute

Shaft Radial Play

0.025mm MAX.(5N load)

Shaft Axial Play

0.075mm MAX.(10N load)

Electric

Model No.

1103S12

Step Angle

1.2°

Phase

3 Phase

Holding Torque

12 N.M

1700 oz-in

NEME Size

NEME 42

Motor frame size

Frame 110

Current /phase

4.2A

Motor Weight

7.1Kg

Motor Length L

139 mm

Drive 3ND1183

General Introduction

The 3ND1183 is a high resolution 3-phase microstepping driver based on precision current control technology. By using the advanced pure-sinusoidal current control technology, both the noise and vibration of the stepping motor have been greatly reduced, which makes the stepping motors offer servo-like performances.

It’s lighter and smaller, and compared to most of the microstepping drivers in the market, both driver heating and motor heating have been reduced by 15-30%.

Electrical Specifications

Phase

Series

Model

Current

Voltage

Microstep

Motor Adapter

Weight

Size

Controlling Signal

3 Phase

ND

3ND1183

2.0-8.2A

80-150VAC

--

86, 110

--

--

--

Applications

Suitable for big-and-mid-size automation devices or equipment, such as: engraving machine, labeller, cutting machine, laser photo-typesetting, graphic plotter, CNC machine and handle device. It has good application effects on low vibration, low noice, high speed and high precision devices.

1103S12 Dimension




110 Series 3 Phase Electrical Connection
