| Leadshine NEMA17 42mm 31.2oz-in 0.22N.M 18-40VDC 2phase Stepper motor Drive kits 42HS02+DM442 |

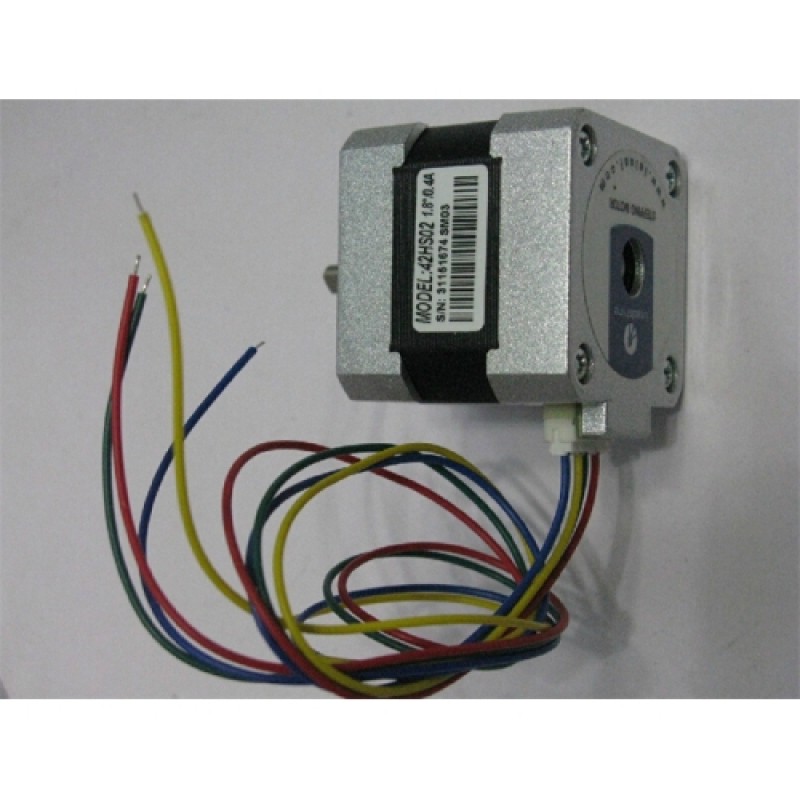

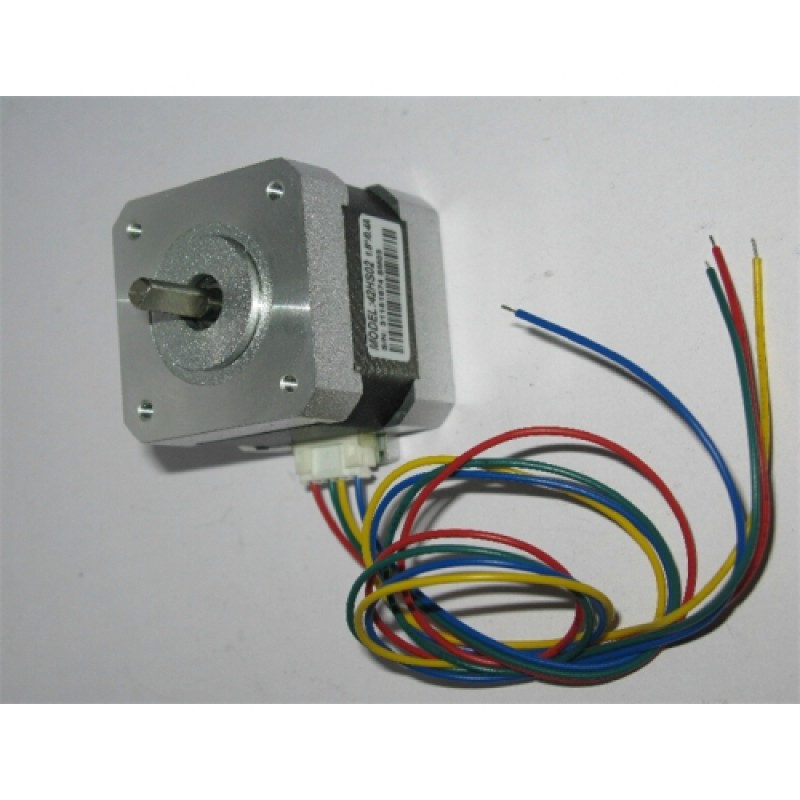

Stepper Motor 42HS02
General Specifications
Angle Accuracy | +5%(full step, no load) |
Temperature Rise | 80°C Max |
Ambient Temperature | -10°C -- +50°C |
Insulation Resistance | 100MΩmin.500VDC |
Dielectric Strength | 500VAC for one minute |
Shaft Radial Play | 0.06 Max.(450g-load) |
Shaft Axial Play | 0.08 max.(450g-load) |
Electric
Model No. | 42HS02 |
Step Angle | 1.8° |
Phase | 2 Phase |
Holding Torque | 0.22 N.m |
31.2 oz-in | |
NEME Size | NEME 17 |
Motor frame size | Frame 42 |
Current /phase | 0.4 A |
# of leads | 4 |
Motor Weight | 0.24 Kg |
Motor Length L | 40 mm |
Drive DM442
DM Series Classis Analog Stepper Drives
Highlights
Step & direction or CW/CCW control
Advanced DSP-based current control algorithm
Low-middle speed anti-resonance
Extra low noise; extra low motor heating; smooth motor movement
Easy setup via DIP switches for microstepping resolution and output current
Free software for fine tuning, output current, resolutions...
Automatic stepper motor identification and self configuration
Electrical Specifications (Tj = 25oC/77oF)
Phase | Series | Model | Current | Voltage | Microstep | Motor Adapter | Weight | Size | Controlling Signal |
2 Phase | DM | DM442 | 1.46-4.2A | 18-40DCV | 2-128, 5-125 | 42,57 | 0.2 | 116*69.2*26.5 | differentialSignal |
DM Series Applications
Suitable for applications require high performance, extra low motor noise, extra smooth movement stepper systems, such as CNC routers, small and medium size milling or engraving machines, laser machines, lab automation instruments, textile equipment, medical devices, assembly machines, pick-and-place devices, etc.
42HS02 Dimension
DM442 Dimension
Typical Connection
