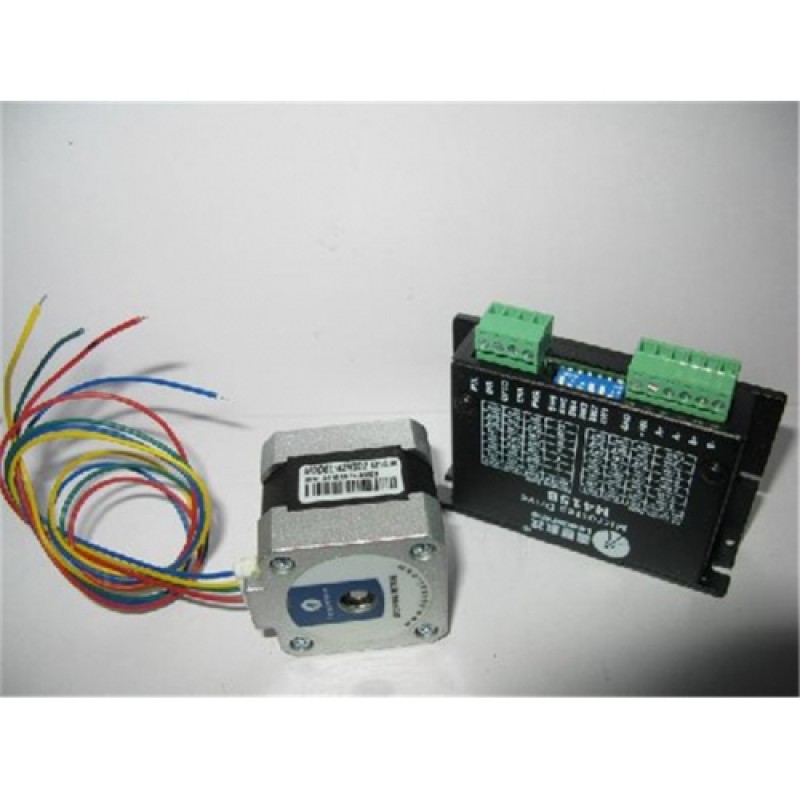

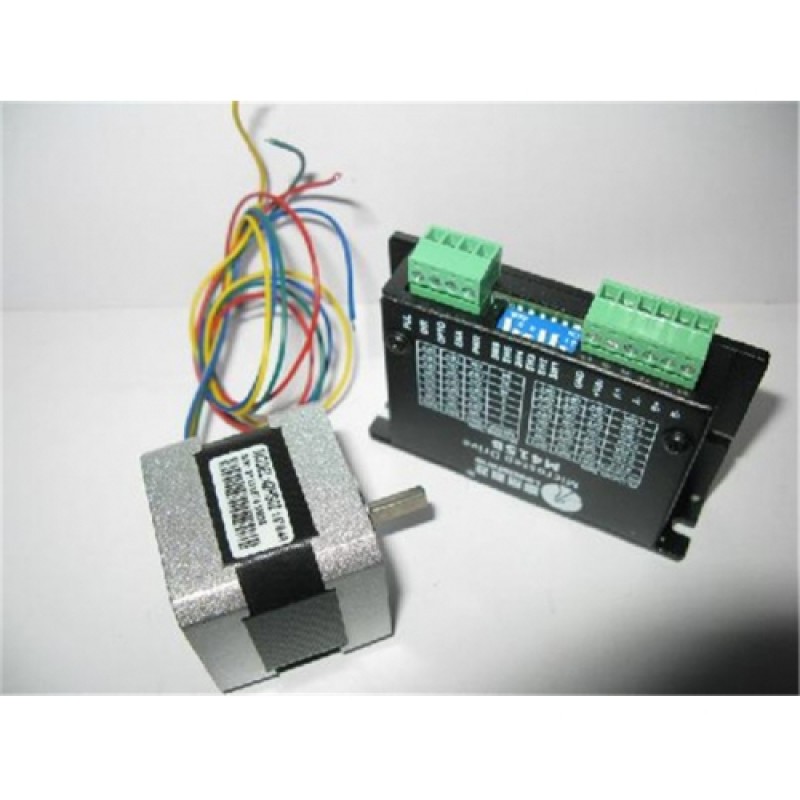

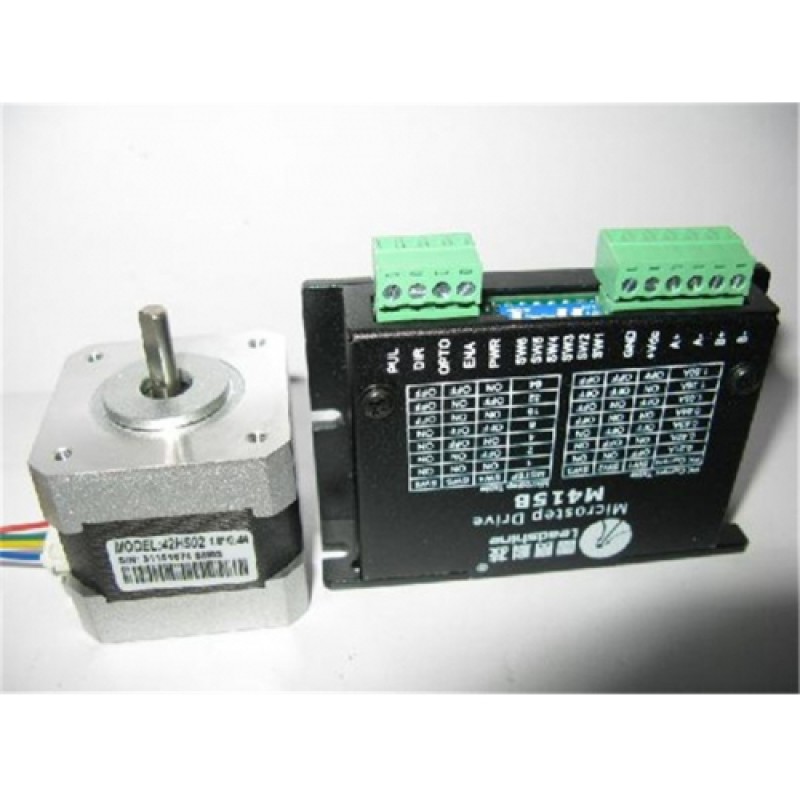

Leadshine NEMA17 42mm 31.2oz-in 0.22N.M 18-36VDC 2phase Stepper motor Drive kits 42HS02+M415B |
Stepper Motor 42HS02
General Specifications
Angle Accuracy | +5%(full step, no load) |
Temperature Rise | 80°C Max |
Ambient Temperature | -10°C -- +50°C |
Insulation Resistance | 100MΩmin.500VDC |
Dielectric Strength | 500VAC for one minute |
Shaft Radial Play | 0.06 Max.(450g-load) |
Shaft Axial Play | 0.08 max.(450g-load) |
Electric
Model No. | 42HS02 |
Step Angle | 1.8° |
Phase | 2 Phase |
Holding Torque | 0.22 N.m |
31.2 oz-in | |
NEME Size | NEME 17 |
Motor frame size | Frame 42 |
Current /phase | 0.4 A |
# of leads | 4 |
Motor Weight | 0.24 Kg |
Motor Length L | 40 mm |
Drive M415B
M Series Classis Analog Stepper Drives
Highlights
Pure sinusoidal current control technology with less motor heating
Self-adjustment technology, providing optimal performance with different motors
7 models, covering 20 VDC to 112VDC or 18 VAC to 80VAC operating voltage ranges
Excellent high-speed performance
Smoother movement at low-speed
Lower motor noise and heating than most analog stepper drives on the market
Electrical Specifications (Tj = 25oC/77oF)
Parameters | M415B |
Current | 0.21-1.5A |
Voltage | DC18-40V |
Microstepping | 1-64 |
Phase | 2 Phase |
Supply voltage | +15 to 40 VDC |
Typical supply voltage | +24-+36 VDC |
Output current (Peak) | 0.21 to 1.5 A |
Microstep resolutions | 1, 2, 4, 8, 16, 32, 64. |
M Series Applications
Suitable for applications require high reliability, good high speed performance, extremely low cost stepper systems, such as CNC routers, milling or engraving machines, textile equipment, assembly machines, pick-and-place devices, etc.
42HS02 Dimension
M415B Dimension
Typical Connection
