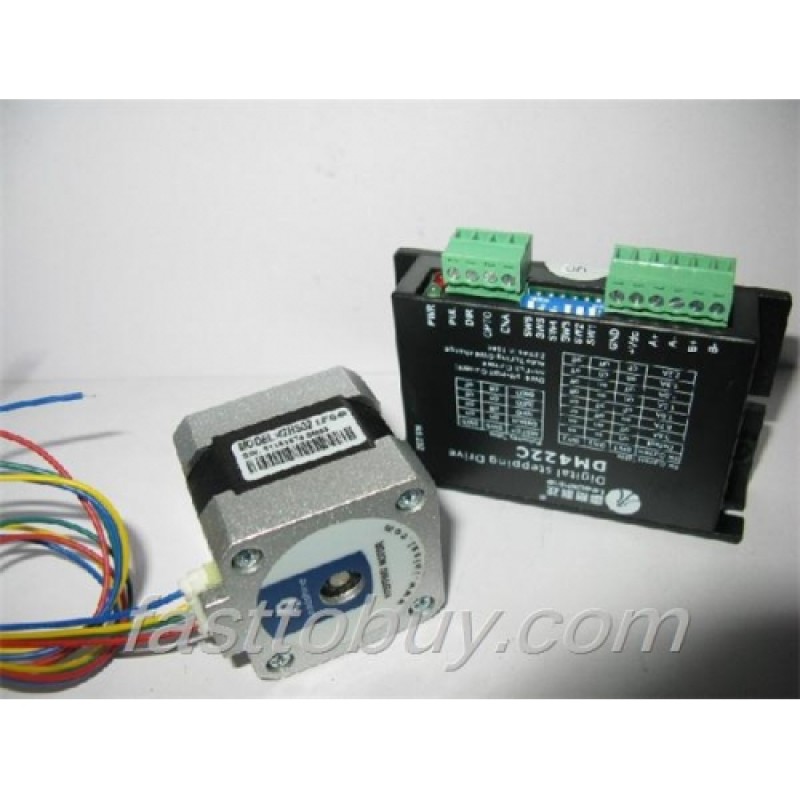

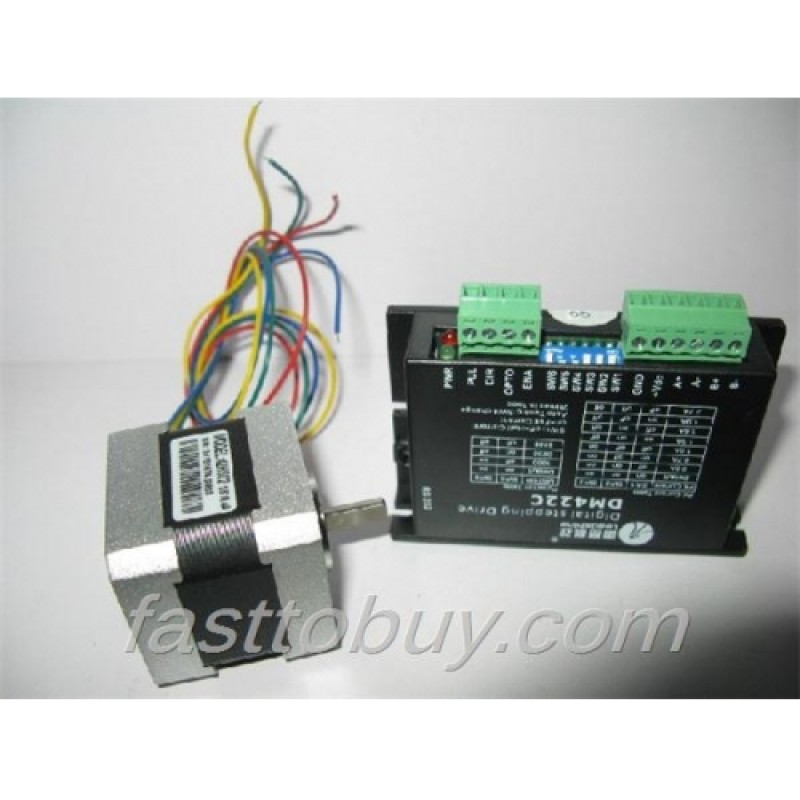

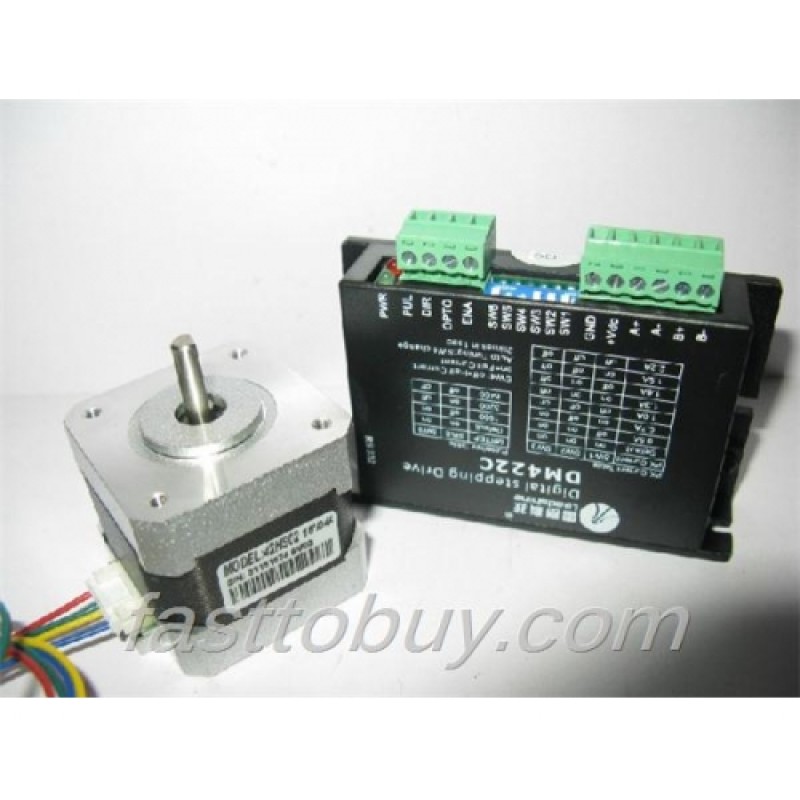

Leadshine 2-phase Stepper Set (Drive + Motor) DM422C + 42HS02 0.22N.m New

PLCAGE: Leadshine 2-phase Stepper Set (Drive + Motor) DM422C + 42HS02 0.22N.m New

DM422C

Features:

*Anti-Resonance, provides optimum torque and nulls mid-range instability

*Motor self-test and parameter auto-setup technology, offers optimum responses with different motors

*Multi-Stepping allows a low resolution step input to produce a higher microstep output for smooth system performance

*Microstep resolutions programmable, from full-step to 102,400 steps/rev

*Supply voltage up to +40 VDC

*Output current programmable, from 0.3A to 2.2A

*Pulse input frequency up to 75 KHz

*TTL compatible and optically isolated input

*Automatic idle-current reduction

*Suitable for 2-phase and 4-phase motors

*Support PUL/DIR and CW/CCW modes

*Over-voltage, over-current, phase-error protections

Specifications:

Applications:

Suitable for a wide range of stepping motors, from NEMA frame size 14 to 23. It can be used in various kinds of machines, such as laser cutters, laser markers, high precision X-Y tables, labeling machines, and so on. Its unique features make the DM422C an ideal solution for applications that require low-speed smoothness.

42HS02

Features:

*2-phase hybrid step motor

*High torque design

*Standard NEMA 17 dimensions

*Optimized for microstepping

Specifications:

General

Electric

Matching drives:

Applications:

Suitable for all kinds of small automation equipment and instruments, such as: pneumatic marking machine, marking machine, cutting machine, laser marking machine, plotter, small engraving machine, CNC machine tools, handling equipment, etc. The efficiency is very high for the users who expect low vibration, little noise, high precision and high speed small equipments.
