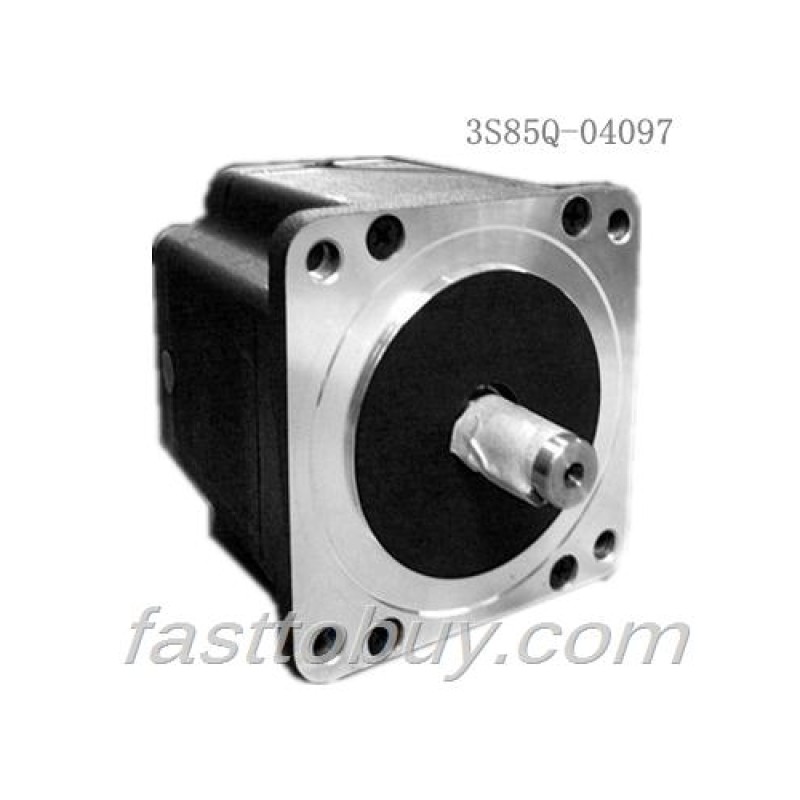

Kinco Stepper Motor 3S85Q-04097 3 phase 5.8 A Holding Torque 2~4Nm New

Kinco Stepper Motor 3S85Q-04097 3 phase 5.8 A Holding Torque 2~4Nm New
Kinco Stepper Motor 3S85Q-04097 3 phase 5.8 A Holding Torque 2~4Nm New
Kinco Stepper Motor 3S85Q-04097 3 phase 5.8 A Holding Torque 2~4Nm New
Kinco Stepper Motor 3S85Q-04097 3 phase 5.8 A Holding Torque 2~4Nm New
Kinco Stepper Motor 3S85Q-04097 3 phase 5.8 A Holding Torque 2~4Nm New
Kinco Stepper Motor 3S85Q-04097 3 phase 5.8 A Holding Torque 2~4Nm New Free shippingIf you need more... Read More
$200.00
Ex Tax: $200.00
  • Stock: In Stock
  • Model: 3S85Q-04097
  • Weight: 2.70kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: 3S85Q-04097
Kinco Stepper Motor 3S85Q-04097 3 phase 5.8 A Holding Torque 2~4Nm New Free shipping

If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:
email:[email protected]
Tel:0086-574- 88333153
We will quote you our best price to you in 24hours.


Specifications:

3 Phase Stepper Motor 85 Series

Phase Current(A): 5.8

Holding Torque(Nm): 2~4

Flange Dimension(mm): 85

Model

3S85Q-04097

3S85Q-04067

Step Angle

1.2°C +/- 5%

Phase Current (A)

5.8

5.8

Holding Torque (Nm)

4

2

Damping Torque (Nm)

0.12

0.08

Winding Resistance (Ω)

1.1 +/- 10%

0.6 +/- 10%

Winding Inductance(mH)

4.6 +/- 20%

1.8 +/- 20%

Motor Inertia (Kg.com²)

2.32

1.1

Motor Length L(mm)

97

67

Number of Lead Wires

6



Insulation Class

B

Withstand Voltage Level

600VAC 1S 5mA

Max.Axial Load (N)

60

Max.Readial Load (N)

220

Operating Temperature

 -20°C ~50°C

Surface Temperature Rise

Max.80°C (Rated Phase Current after Phases are Connected)

Insulation Impedance

Minimum 100MΩ,500VDC

Weight (Kg)

2.7

1.65
