- Stock: In Stock

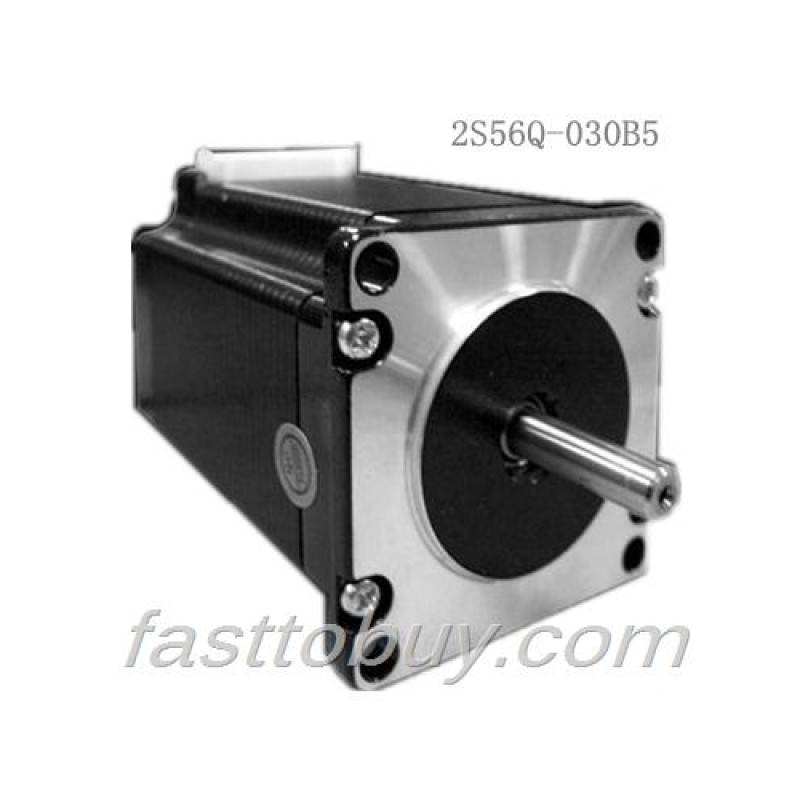

- Model: 2S56Q-030B5
- Weight: 1.50kg
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.
Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:
email:[email protected]
Tel:0086-574- 88333153
We will quote you our best price to you in 24hours.
Specifications:
2 Phase Stepper Motor 56 Series
Phase Current (A) : 1.5~6
Holding Torque (Nm): 0.5~2.5
Flange Dimension(mm): 56.4
Model | 2S56Q-030B5 | 2S56Q-02976 | 2S56Q-02054 | 2S56Q-02741 |
Step Angle | 1.8°C +/- 5% | |||
Phase Current (A) | 6 | 3 | 3 | 1.5 |
Holding Torque (Nm) | 2.5 | 1.5 | 0.9 | 0.5 |
Damping Torque (Nm) | 0.17 | 0.07 | 0.04 | 0.02 |
Winding Resistance (Ω) | 0.5 +/- 10% | 0.95 +/- 10% | 0.65 +/- 10% | 1.8 +/- 10% |
Winding Inductance(mH) | 1.5 +/- 20% | 3.4 +/- 20% | 2.5 +/- 20% | 4.1 +/- 20% |
Motor Inertia (Kg.com²) | 0.7 | 0.46 | 0.26 | 0.14 |
Motor Length L(mm) | 115 | 76 | 54 | 41 |
Number of Lead Wires | 4 | |||
Insulation Class | B | |||
Withstand Voltage Level | 500VAC,one minute | |||
Max.Axial Load (N) | 15 | |||
Max.Readial Load (N) | 75 | |||
Operating Temperature | -20°C~50°C | |||
Surface Temperature Rise | Max.80°C (Rated Phase Current after Two Phases are Connected) | |||
Insulation Impedance | Minimum 100MΩ,500VDC | |||
Weight (Kg) | 1.5 | 1 | 0.6 | 0.42 |
Lead Wire Length (mm) | 300 +/- 10 | 300 +/- 5 | ||
