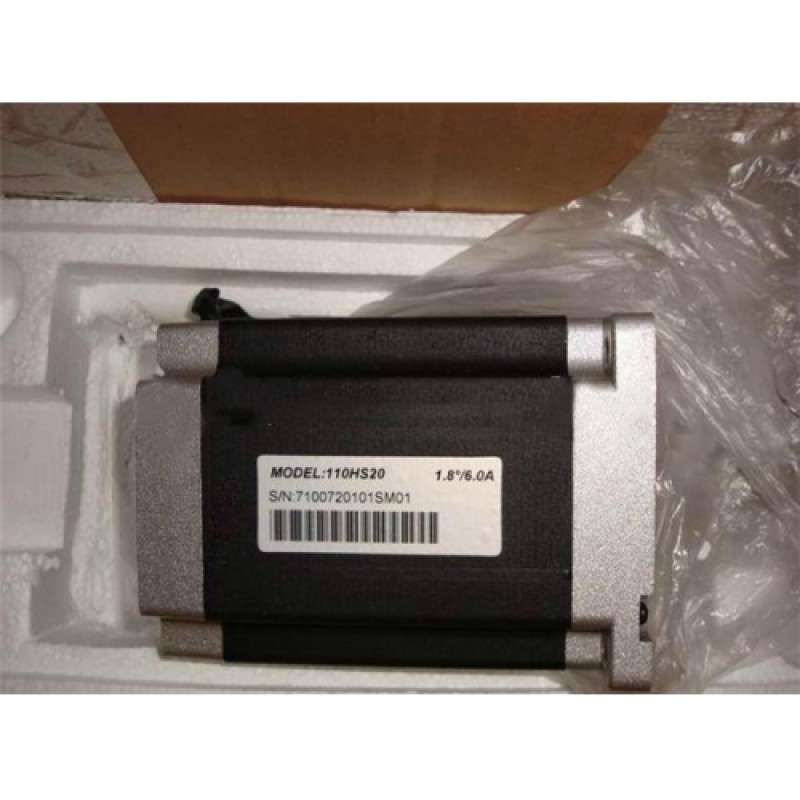

110HS20 Leadshine 2 phase stepper motor 110HS 20NM 1.8 degree 6.5A original brand new

110HS20 Leadshine 2 phase stepper motor 110HS 20NM 1.8 degree 6.5A original brand new
110HS20 Leadshine 2 phase stepper motor 110HS 20NM 1.8 degree 6.5A original brand new
110HS20 Leadshine 2 phase stepper motor 110HS 20NM 1.8 degree 6.5A original brand new
110HS20 Leadshine 2 phase stepper motor 110HS 20NM 1.8 degree 6.5A original brand new
110HS20 Leadshine 2 phase stepper motor 110HS 20NM 1.8 degree 6.5A original brand new
110HS20 Leadshine 2 phase stepper motor 110HS 20NM 1.8 degree 6.5A original brand new DescriptionThe... Read More
0 reviews • Write a review
$394.00
Ex Tax: $394.00
  • Stock: In Stock
  • Model: 110HS20
  • Weight: 9.50kg
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.

We accept many payments,include Paypal,Bank Transfer etc
110BYGH150-001 + DQ2722M WANTAI Hybrid Stepping Set (Motor + Drive) NEW
Quickview
110BYGH150-001 + DQ2722M WANTAI Hybrid Stepping Set (Motor + Drive) NEW
$448.00
Ex Tax:$448.00
Add to Cart Add to Wish List Compare this Product
110BYGH150-001 WANTAI Hybrid Stepping Motor 110BYGH series NEW
Quickview
110BYGH150-001 WANTAI Hybrid Stepping Motor 110BYGH series NEW
$205.00
Ex Tax:$205.00
Add to Cart Add to Wish List Compare this Product
110BYGH201-001 WANTAI Hybrid Stepping Motor 110BYGH series NEW
Quickview
110BYGH201-001 WANTAI Hybrid Stepping Motor 110BYGH series NEW
$265.00
Ex Tax:$265.00
Add to Cart Add to Wish List Compare this Product
110BYGH99-001 WANTAI Hybrid Stepping Motor 110BYGH series NEW
Quickview
110BYGH99-001 WANTAI Hybrid Stepping Motor 110BYGH series NEW
$164.00
Ex Tax:$164.00
Add to Cart Add to Wish List Compare this Product
110HS1250A4 SUMTOR two-phase stepper motor 110BYG NEW
Quickview
110HS1250A4 SUMTOR two-phase stepper motor 110BYG NEW
$133.00
Ex Tax:$133.00
Add to Cart Add to Wish List Compare this Product
110HS20 Leadshine 2 phase stepper motor 110HS 20NM 1.8 degree 6.5A original brand new
Quickview
110HS20 Leadshine 2 phase stepper motor 110HS 20NM 1.8 degree 6.5A original brand new
$394.00
Ex Tax:$394.00
Add to Cart Add to Wish List Compare this Product
110HS2160A4 SUMTOR two-phase stepper motor 110BYG NEW
Quickview
110HS2160A4 SUMTOR two-phase stepper motor 110BYG NEW
$185.00
Ex Tax:$185.00
Add to Cart Add to Wish List Compare this Product
110HS28 Leadshine Stepper motor 1.8?6.5A 28NM NEMA42 110mm one year Warranty
Quickview
110HS28 Leadshine Stepper motor 1.8?6.5A 28NM NEMA42 110mm one year Warranty
$195.00
Ex Tax:$195.00
Add to Cart Add to Wish List Compare this Product
Tags: 110HS20

110HS20 Leadshine 2 phase stepper motor 110HS 20NM 1.8 degree 6.5A original brand new



Description

The 110HS20 high torque 2-phase stepper motor is suitable for a wide range of motion control applications.

Features

2 phase 1.8° stepping angle

NEMA 42

Holding toque of  20 N*m (2832 oz-in)

High precision

Smooth movement

Low motor heating

Low movement noise

Specifications:


General

Step Angle

1.8°

Step Angle Accuracy

+5%(full step, no load)

Temperature Rise

80°CMax

Ambient Temperature

-10°C -- +50°C

Insulation Resistance

100MΩmin.500VDC

Dielectric Strength

500VAC for one minute

Shaft Radial Play

0.06 Max.(450g-load)

Shaft Axial Play

0.08 max.(450g-load)

Number of Leads

4

Applications

Suitable for all kinds of small automation equipment and instruments, such as: pneumatic marking machine, marking machine, cutting machine, laser marking machine, plotter, small engraving machine, CNC machine tools, handling equipment, etc. The efficiency is very high for the users who expect low vibration, little noise, high precision and high speed small equipments.

Mechanical specifications



2 phase stepper motor Lectotype List

Phase

Ideotype

Model

StallTorque (NM)

Step angle(º)

Pin count

Phase Current

Electric resistance(Ω)

Electrical inductance (mH)

Length L(mm)

Rotor inertia (g.cm²)

weight(kg)

Matching drives

Series connection

Paralleling connection

2 phase stepper

35

35HS01

0.07

1.8

4

0.4

35

8.0

28

12

0.17

M415B/DM320/M325

39

39HS02

0.065

1.8

4

0.6

15

16

34

20

0.18

M415B/DM320/M325

42

42HS02

0.22

1.8

4

0.4

12.5

21

40

57

0.24

DM320/DM422C/DM432C/
DM556/DM856/M542V2.O/
ND556/ M415B/M325

42HS03

0.34

1.8

8

0.7

1.4

4.6

4.0

48

82

0.34

57

57HS06

0.6

1.8

8

1.4

2.8

1.35

1.8

55

145

0.6

DM422C/DM432C/DM556/
DM856/M752/M542/
M860/M880A/MA550/
MA860/H850/ND556/
ND882/M415B/M325

57HS09

0.9

1.8

8

2.1

4.2

0.8

1.2

54

260

0.6

57HS13

1.3

1.8

8

2.0

4.0

1.0

2.1

76

460

1.0

57HS22

2.2

1.8

8

2.8

5.6

0.67

1.8

76

480

1.1

86

86HS35

3.0

1.8

8

2.0

4.0

1.4

3.9

65

800

2.0

DM556/DM856/M752/
M860/M880A/MA550/
MA860/H850/MA860H/
ND882/ND1182/ND2282/
M535/MD2278

86HS38

3.8

1.8

8

3.0

6.0

0.6

2.7

71

1200

2.6

86HS45

4.5

1.8

8

3.0

5.9

0.8

3.5

79.5

1400

2.3

86HS85

8.5

1.8

8

3.5

7.0

0.95

5.2

118

2800

3.8

110

110HS12

12

1.8

4

5.0

0.95

15

99

5500

5.0

MA860H/ND1182/ND2282/MD2278

110HS20

20

1.8

4

6.5

1.15

18.9

150

11000

8.4

MA860H/ND1182/ND2282/MD2278

130

130HS27

27

1.8

4

6.0

0.65

13.8

227

35000

13

ND2282/MD2278

130HS45

45

1.8

4

7.0

0.9

9.5

283

48400

19

ND2282/MD2278
