Ratio1:20 NEMA34 5A 6NM 857oz-in L 98mm Gear reducer Stepper Motor CNC machining

Ratio1:20 NEMA34 5A 6NM 857oz-in L 98mm Gear reducer Stepper Motor CNC machining
Ratio1:20 NEMA34 5A 6NM 857oz-in L 98mm Gear reducer Stepper Motor CNC machining
Ratio1:20 NEMA34 5A 6NM 857oz-in L 98mm Gear reducer Stepper Motor CNC machining
Ratio1:20 NEMA34 5A 6NM 857oz-in L 98mm Gear reducer Stepper Motor CNC machining
Ratio1:20 NEMA34 5A 6NM 857oz-in L 98mm Gear reducer Stepper Motor CNC machining
Ratio1:20 NEMA34 5A 6NM 857oz-in L 98mm Gear reducer Stepper Motor CNC machining
Ratio1:20 NEMA34 5A 6NM 857oz-in L 98mm Gear reducer Stepper Motor CNC machining
 Ratio1:20 NEMA34 5A 6NM 857oz-in L 98mm Gear reducer Stepper Motor CNC machining 86HS9850A4-G20Ap... Read More
$119.00
Ex Tax: $119.00
  • Stock: In Stock
  • Model: Ratio1:20
  • Weight: 6.00kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: Ratio1:20

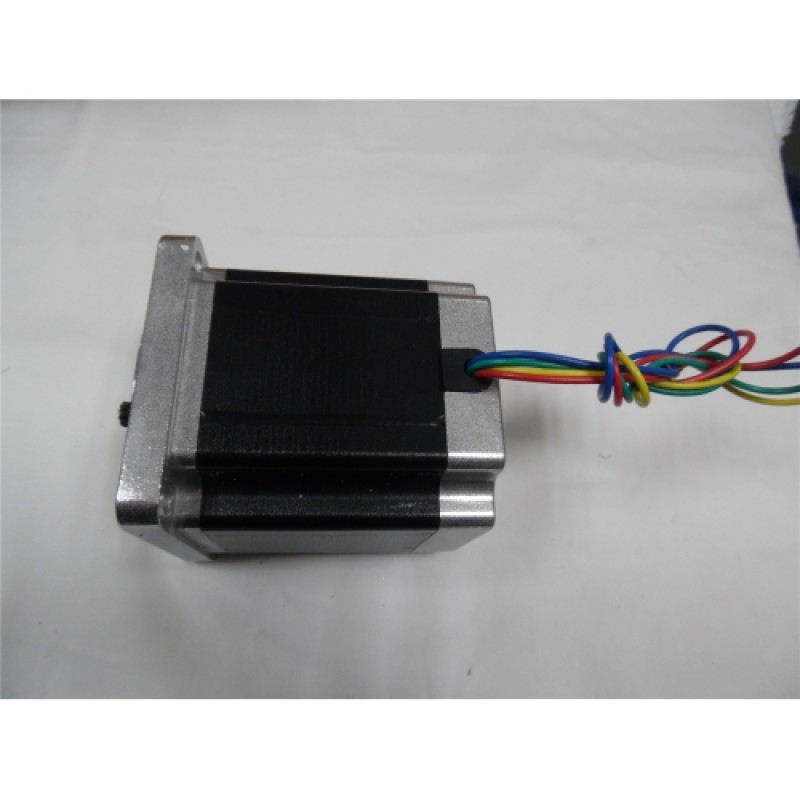

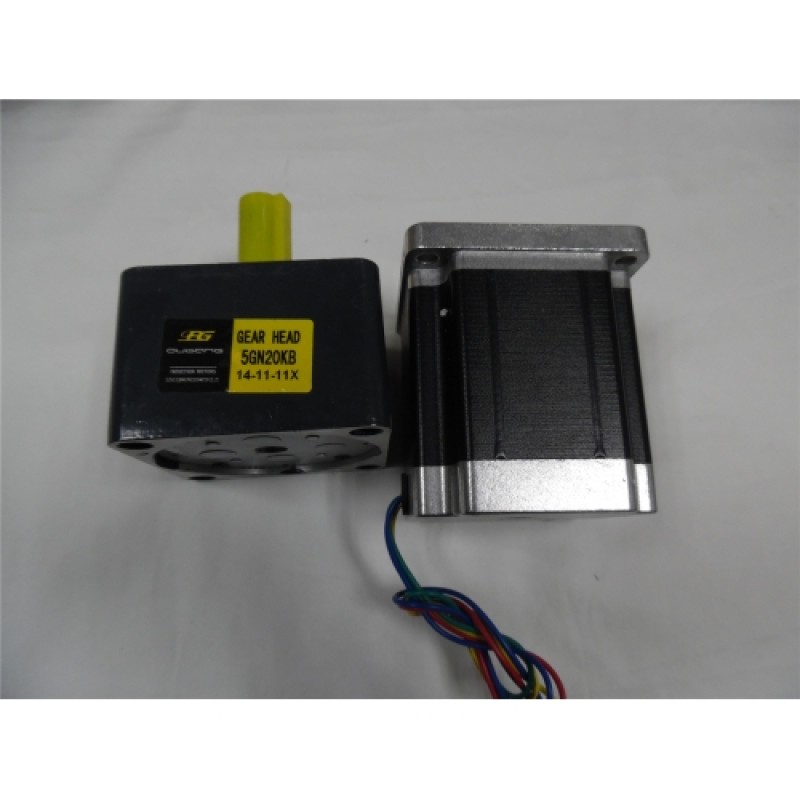

 Ratio1:20 NEMA34 5A 6NM 857oz-in L 98mm Gear reducer Stepper Motor CNC machining 86HS9850A4-G20

Appliaction:

Inject printers, Textile Equipment, Embroidery Machine, Precision Telescope Positioning Systems, engraving machine, packaging machinery, CNC numerically-controlled machine tool and transmission.

Motor Product Description:

Step Angle Accuracy: ±5%(full step, no load)

Resistance Accuracy: ±10%

Inductance Accuracy: ±20%

Temperature Rise: 80 Degrees Celsius Max.(rated current,2 phase on)

Ambient Temperature: -20°C-+50°C

Insulation Resistance: 100MΩ Min.500V DC

Dielectric Strength: 500V AC for one minute

Gear Reduction Motor Specifications

Model

86HS9850A4

86HS11450A4

Step Angle

1.8

1.8

Rated Current

5A

5A

Holding Torque

6NM

8NM

Motor length

98mm

114mm

Reduction box

104*104*72mm

104*104*72mm

Gear Ratio

1:20

1:20

Output shaft diamete

15mm

15mm
