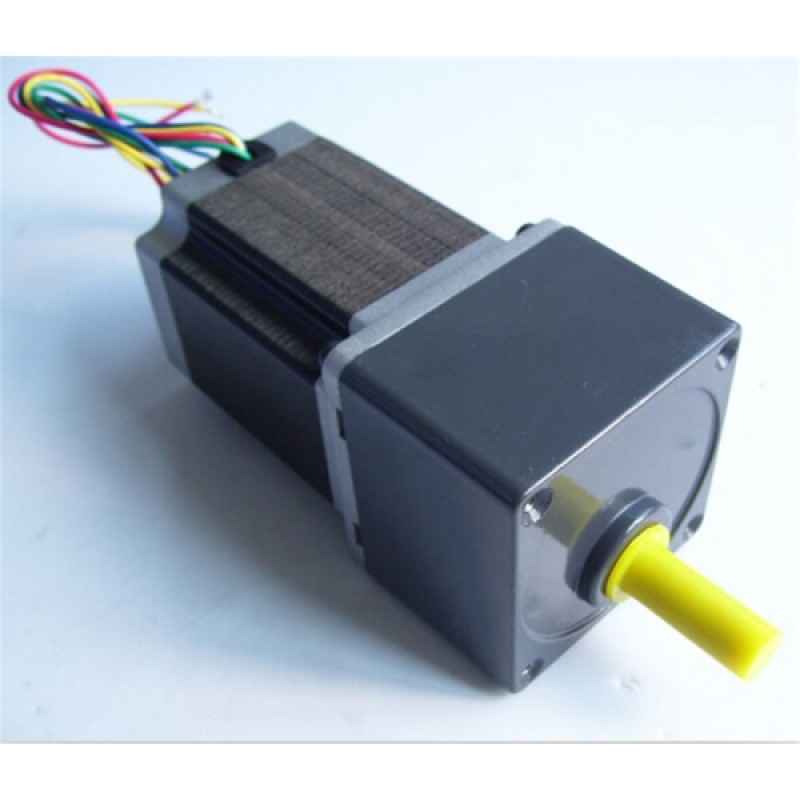

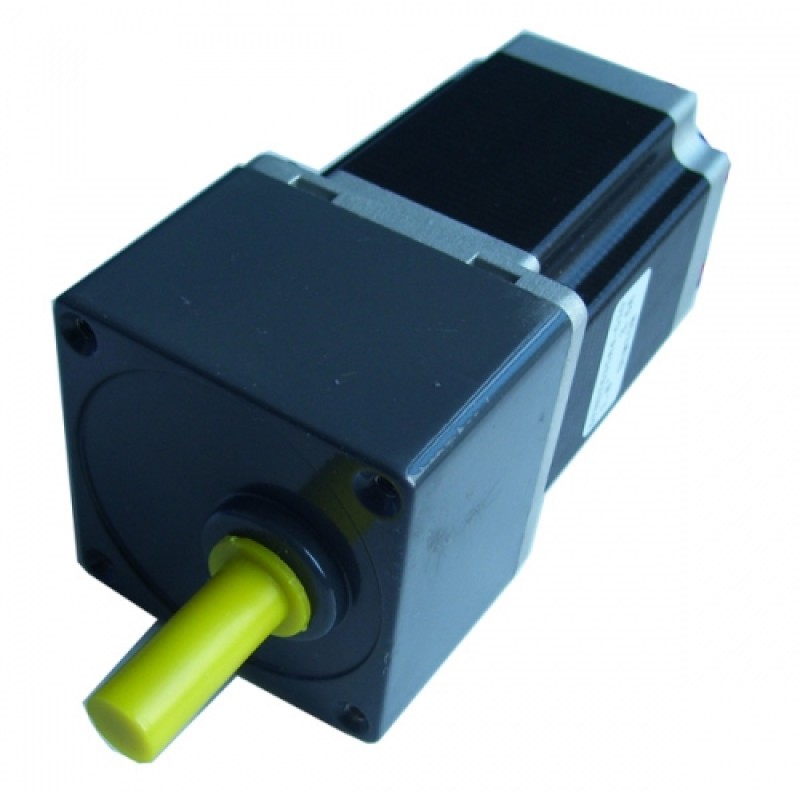

Ratio1:10 NEMA23 4.2A 3NM 429oz-in L 112mm Gear reducer Stepper Motor Marking Machine

Ratio1:10 NEMA23 4.2A 3NM 429oz-in L 112mm Gear reducer Stepper Motor Marking Machine
Ratio1:10 NEMA23 4.2A 3NM 429oz-in L 112mm Gear reducer Stepper Motor Marking Machine
Ratio1:10 NEMA23 4.2A 3NM 429oz-in L 112mm Gear reducer Stepper Motor Marking Machine
Ratio1:10 NEMA23 4.2A 3NM 429oz-in L 112mm Gear reducer Stepper Motor Marking Machine
Ratio1:10 NEMA23 4.2A 3NM 429oz-in L 112mm Gear reducer Stepper Motor Marking Machine
Ratio1:10 NEMA23 4.2A 3NM 429oz-in L 112mm Gear reducer Stepper Motor Marking Machine
Ratio1:10 NEMA23 4.2A 3NM 429oz-in L 112mm Gear reducer Stepper Motor Marking Machine
Ratio1:10 NEMA23 4.2A 3NM 429oz-in L 112mm Gear reducer Stepper Motor Marking Machine
Ratio1:10 NEMA23 4.2A 3NM 429oz-in L 112mm Gear reducer Stepper Motor Marking Machine
 Ratio1:10 NEMA23 4.2A 3NM 429oz-in L 112mm Gear reducer Stepper Motor Marking Machine 57HS11242A4-G... Read More
$47.00
Ex Tax: $47.00
  • Stock: In Stock
  • Model: Ratio1:10
  • Weight: 2.50kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: Ratio1:10

 Ratio1:10 NEMA23 4.2A 3NM 429oz-in L 112mm Gear reducer Stepper Motor Marking Machine 57HS11242A4-G10

Appliaction:

Marking machine, labeling machine, cutting machine, plotter, small engraving machine, NC machine tools, transmission mechanism, medical apparatus and instruments, etc. For the vibration of the motor itself, the output torque of noise and its accuracy and high speed have been improved obviously.

Product Description

Step Angle Accuracy: ±5%(full step, no load)

Resistance Accuracy: ±10%

Inductance Accuracy: ±20%

Temperature Rise: 80 Degrees Celsius Max.(rated current,2 phase on)
Ambient Temperature: -20°C-+50°C

Insulation Resistance: 100MΩ Min.500V DC

Dielectric Strength: 500V AC for one minute

There are multiple choice for 57BYG series geared motor. if you any other choice, please do contact us for a better solution.

Motor Length: 41mm  56mm   76mm  112mm

Gear Ratio: 1:3   1:5    1:10    1:20   1:50  1:100

Reduction box: 60*60*41.5mm

Gear Reduction Motor Specifications

Model

Step Angle

Rated Current (A)

Phase Resistance

(ohm)

Phase Inductance

(mH)

Holding Torque

(N*m)

Detent Torque

(N*cm)

Rotor Inertia

(g*cm2)

Motor Length

(mm)

57HS4120A4

1.8

2

1.2

2.5

0.55

2.5

150

41

57HS5630A4

1.8

3

0.8

2.4

1.1

3.5

280

56

57HS7630A4

1.8

3

1

3.5

1.8

6

440

76

57HS11242A4

1.8

4.2

1.4

1.8

3

12

800

112
