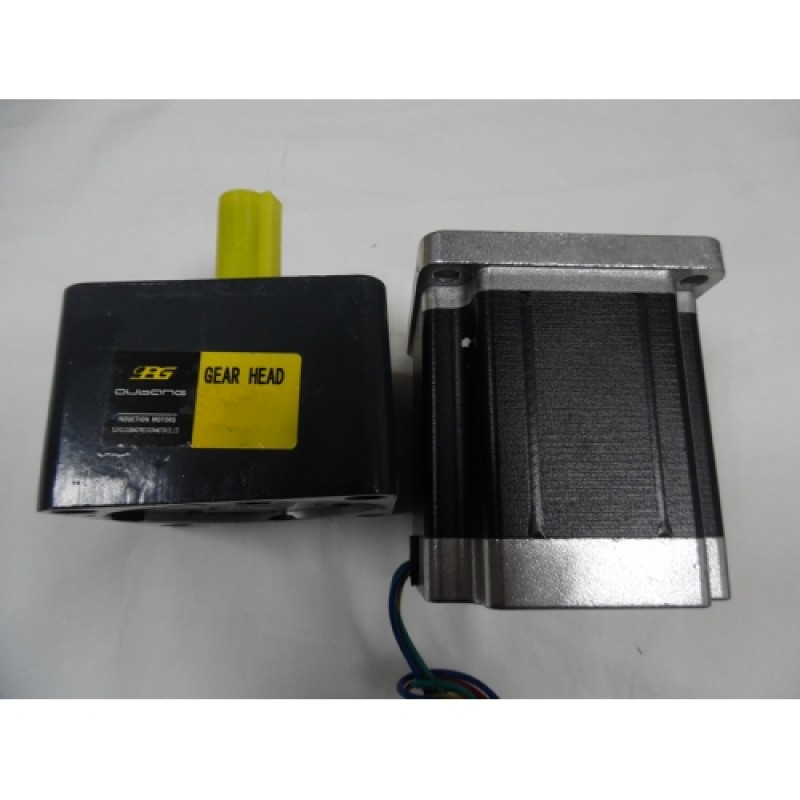

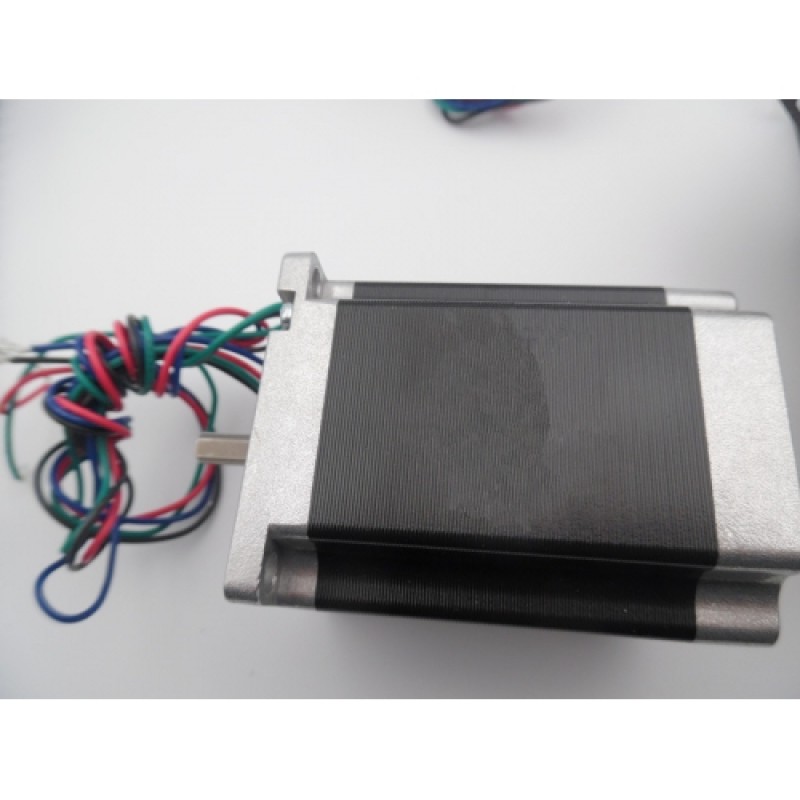

Ratio1:10 NEMA23 3A 1.8NM 257oz-in L 76mm Gear reducer Stepper Motor Marking Machine 57HS7630A4-G10
Appliaction:
Marking machine, labeling machine, cutting machine, plotter, small engraving machine, NC machine tools, transmission mechanism, medical apparatus and instruments, etc. For the vibration of the motor itself, the output torque of noise and its accuracy and high speed have been improved obviously.
Product Description
Step Angle Accuracy: ±5%(full step, no load)
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80 Degrees Celsius Max.(rated current,2 phase on)
Ambient Temperature: -20°C-+50°C
Insulation Resistance: 100MΩ Min.500V DC
Dielectric Strength: 500V AC for one minute
There are multiple choice for 57BYG series geared motor. if you any other choice, please do contact us for a better solution.
Motor Length: 41mm 56mm 76mm 112mm
Gear Ratio: 1:3 1:5 1:10 1:20 1:50 1:100

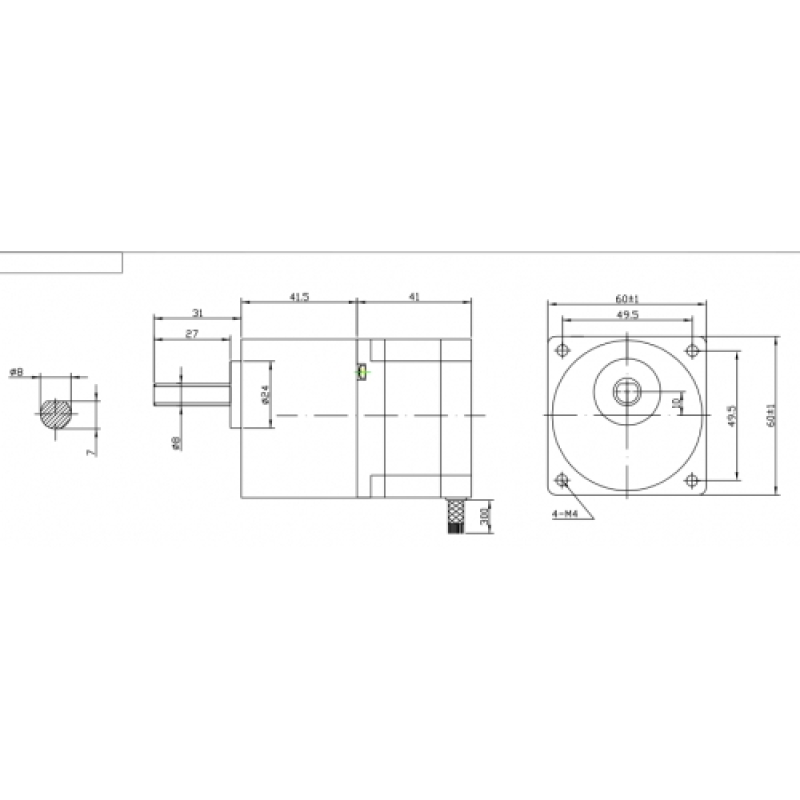

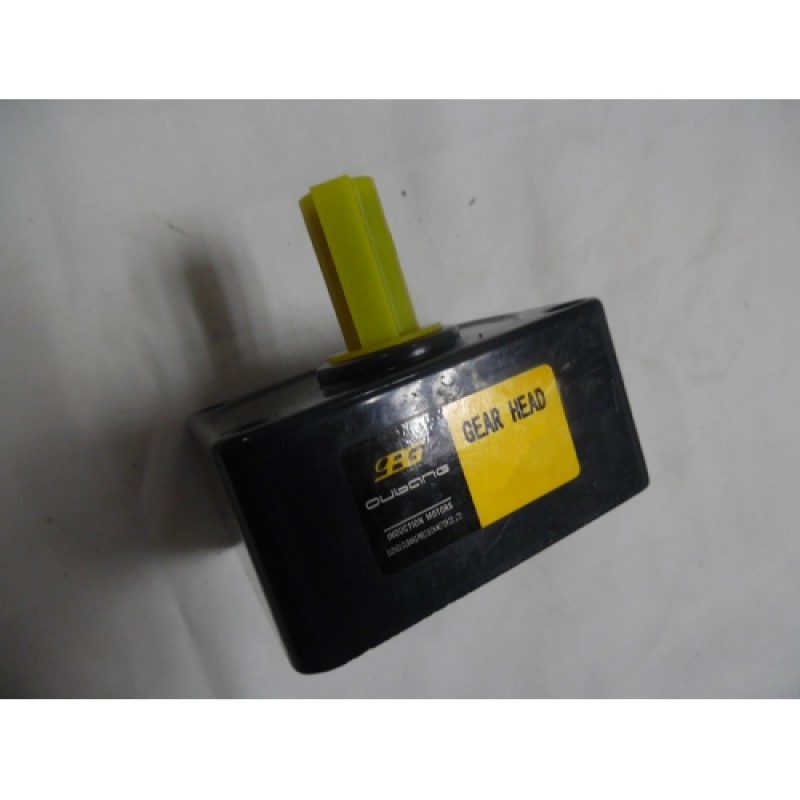

Reduction box: 60*60*41.5mm
Gear Reduction Motor Specifications
Model | Step Angle | Rated Current (A) | Phase Resistance (ohm) | Phase Inductance (mH) | Holding Torque (N*m) | Detent Torque (N*cm) | Rotor Inertia (g*cm2) | Motor Length (mm) |
57HS4120A4 | 1.8 | 2 | 1.2 | 2.5 | 0.55 | 2.5 | 150 | 41 |
57HS5630A4 | 1.8 | 3 | 0.8 | 2.4 | 1.1 | 3.5 | 280 | 56 |
57HS7630A4 | 1.8 | 3 | 1 | 3.5 | 1.8 | 6 | 440 | 76 |
57HS11242A4 | 1.8 | 4.2 | 1.4 | 1.8 | 3 | 12 | 800 | 112 |
