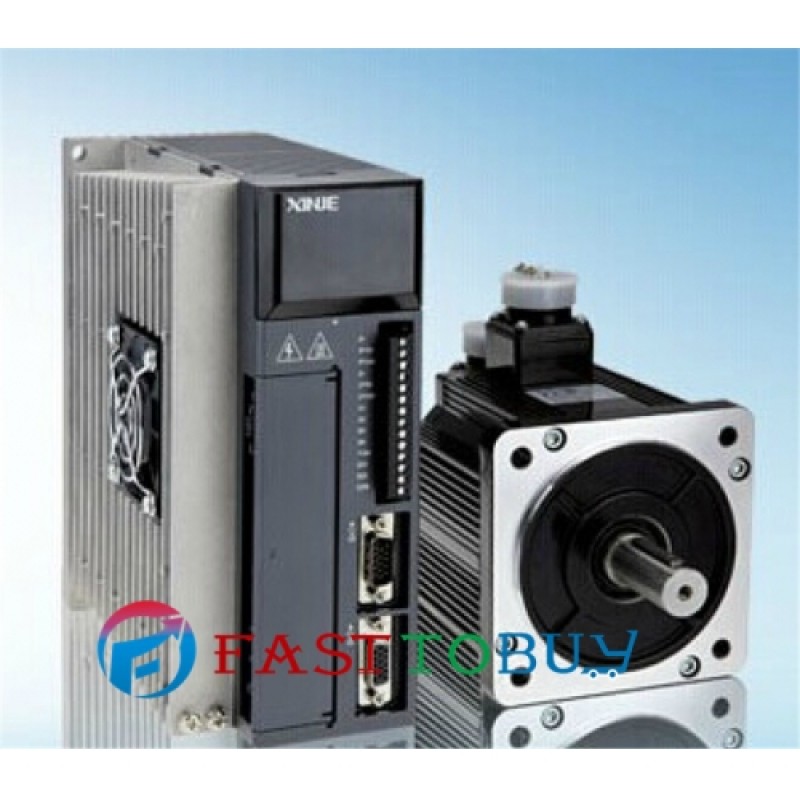

380VAC 1.5KW 10NM 1500rpm MS-130ST-M10015B-41P5+DS2-41P5-AS AC Servo Motor Drive kits Keyway with 3M cable

380VAC 1.5KW 10NM 1500rpm MS-130ST-M10015B-41P5+DS2-41P5-AS AC Servo Motor Drive kits Keyway  with 3M cable
380VAC 1.5KW 10NM 1500rpm MS-130ST-M10015B-41P5+DS2-41P5-AS AC Servo Motor Drive kits Keyway  with 3M cable
380VAC 1.5KW 10NM 1500rpm MS-130ST-M10015B-41P5+DS2-41P5-AS AC Servo Motor Drive kits Keyway  with 3M cable
380VAC 1.5KW 10NM 1500rpm MS-130ST-M10015B-41P5+DS2-41P5-AS AC Servo Motor Drive kits Keyway  with 3M cable
380VAC 1.5KW 10NM 1500rpm MS-130ST-M10015B-41P5+DS2-41P5-AS AC Servo Motor Drive kits Keyway  with 3M cable
380VAC 1.5KW 10NM 1500rpm MS-130ST-M10015B-41P5+DS2-41P5-AS AC Servo Motor Drive kits Keyway  with 3M cable
380VAC 1.5KW 10NM 1500rpm MS-130ST-M10015B-41P5+DS2-41P5-AS AC Servo Motor Drive kits Keyway  with 3M cable
380VAC 1.5KW 10NM 1500rpm MS-130ST-M10015B-41P5+DS2-41P5-AS AC Servo Motor Drive kits Keyway  with 3M cable
380VAC 1.5KW 10NM 1500rpm MS-130ST-M10015B-41P5+DS2-41P5-AS AC Servo Motor Drive kits Keyway with 3M cable
380VAC 1.5KW 10NM 1500rpm MS-130ST-M10015B-41P5+DS2-41P5-AS AC Servo Motor Drive kits Keyway  with 3... Read More
$551.00
Ex Tax: $551.00
  • Stock: In Stock
  • Model: 380VAC
  • Weight: 15.00kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: 380VAC

380VAC 1.5KW 10NM 1500rpm MS-130ST-M10015B-41P5+DS2-41P5-AS AC Servo Motor Drive kits Keyway  with 3M cable

Package Content:

1*Motor+Drive: MS-130ST-M10015B-41P5+DS2-41P5-AS

1* 3M Encoder Cable &Power Cable

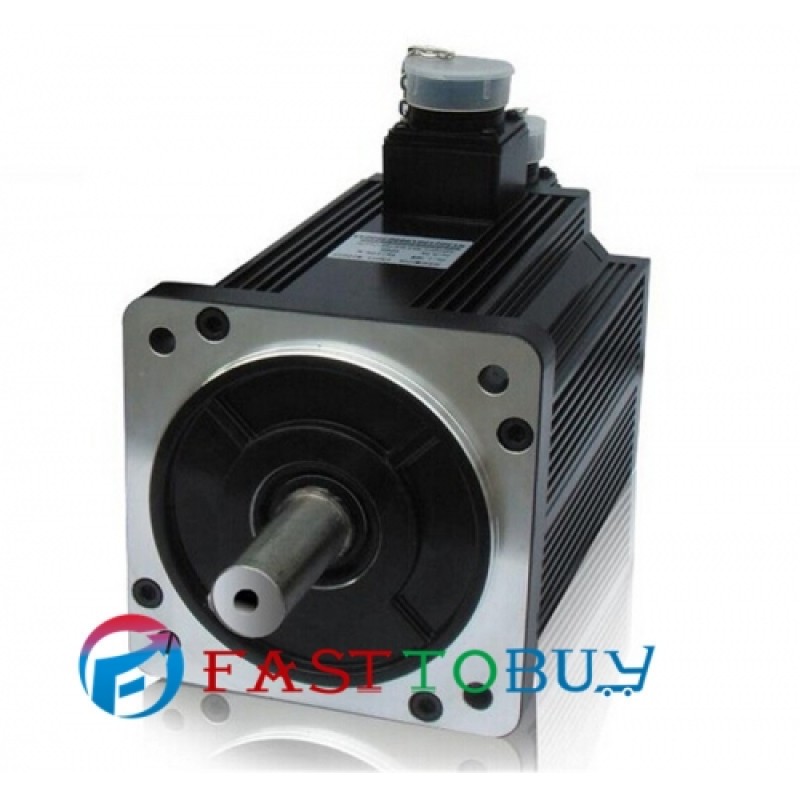

1 Motor Specifications

Voltage level

380V

Motor type name

MS-130ST-M10015B-41P5

Motor code

0144

Rated power (KW)

1.5

Rated current (A)

3.5

Rated speed (rpm)

1500

Max speed(rpm

2000

Rated torque(N·m)

10

Peak torque(N·m

25

Back EMF constat (V/krpm)

177

Torque coefficient (N·m/A)

2.86

Rotor inertia (Kg·m 2 )

1.94×10 -3

Winding resistor (Ω)

4.37

Winding inductance (mH)

15.00

Electrical time constant (ms)

3.46

Weight(Kg)

11.5

Encoder ppr(PPR)

2500

Pole pairs

4

Motor insulation level

Class B(130° C)

Protection level

IP65

Ambient

Temperature

-20° C ~ + 50° C

Humidity

Relative humidity <90% (no condensation)

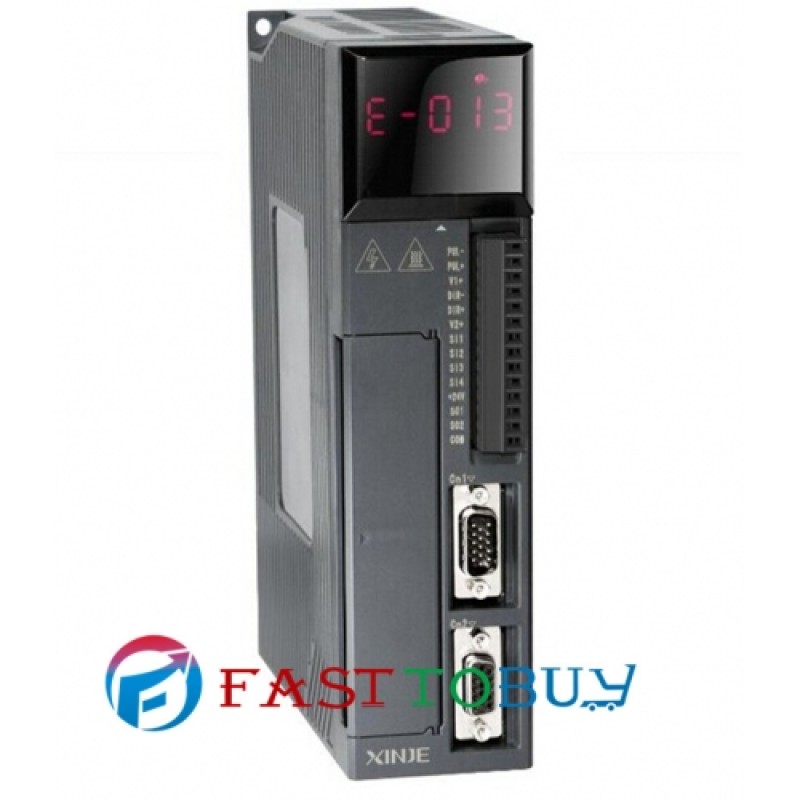

2  Drive Specifications
