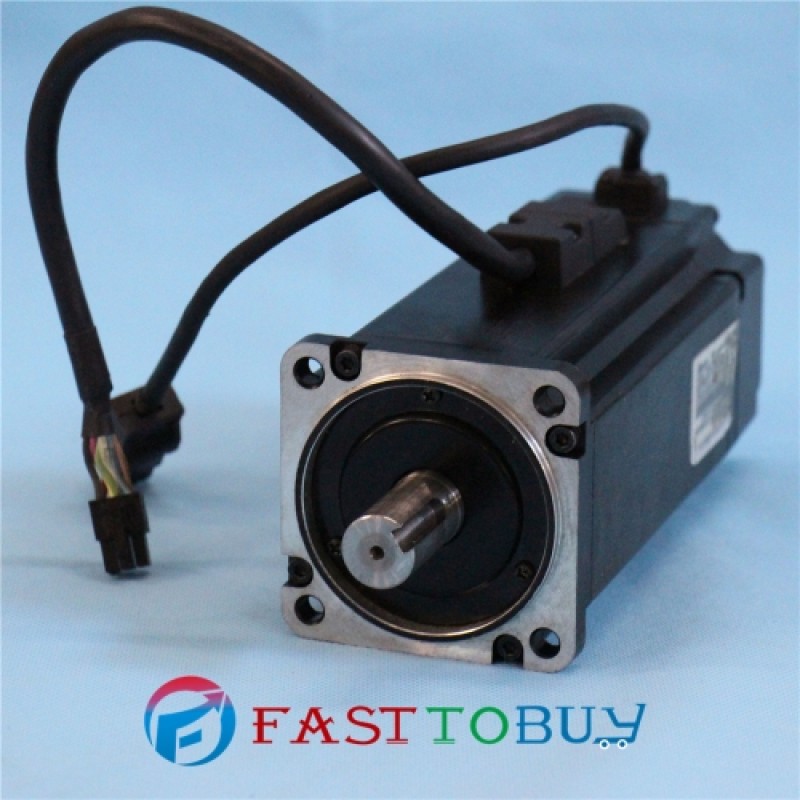

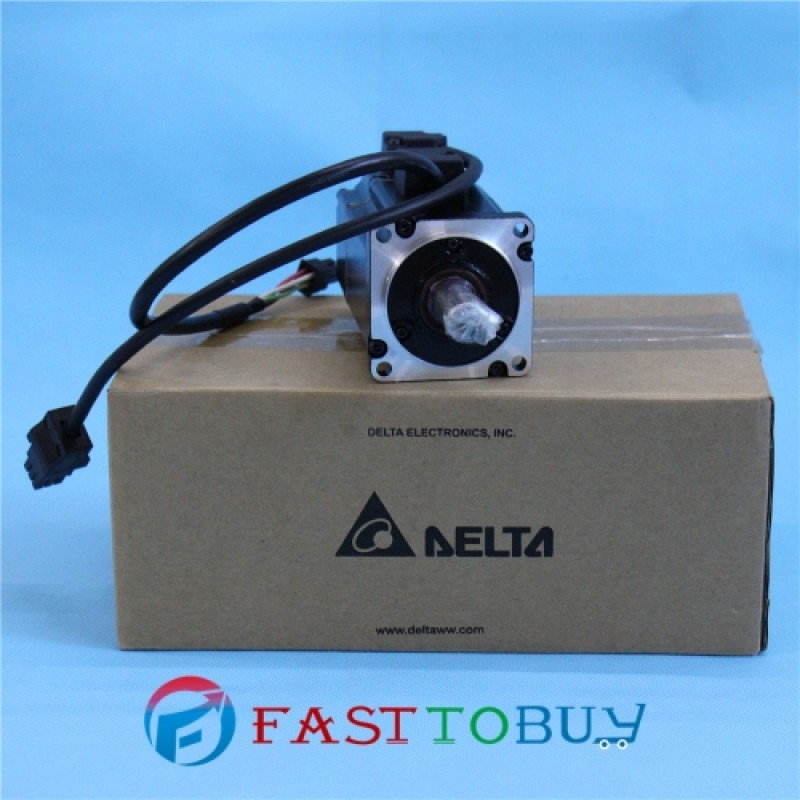

ECMA-C20604RC Delta AC Servo Motor 220V 400W 1.27NM 3000rpm with Keyway Oil Seal New

Model

ECMA-C20604RC

Product Name

Electronic Commutation Motor

Corresponding Servo Motor

ASD-B2-0421-B

Servo Type

AC Servo

Rated Voltage

220V

Encoder Type

Incremental, 17-bit

Motor Frame Size

60mm

Type of Shaft Diameter and Oil Seal

Keyway(with fixed screw holes) ,w/o Brake with Oil Seal

Standard Shaft Diameter

---

Motor Cable Length

Encoder Cable Length

3M

Rated Power Output

400W

Rated torque (N-m)*1

1.27

Max. torque (N-m)

3.82

Rated Speed

3000 rpm

Max. speed

5000 rpm

Rated current (A)

2.60 A

Max. instantaneous current (A)

7.80 A

Power rating (kW/s)

57.6

Rotor inertia  (× 10-4kg.m2)

0.277

Mechanical constant (ms)

0.53

Torque constant-KT (N-m/A)

0.49

Voltage constant-KE (mV/(r/min))

17.4

Armature resistance (Ohm)

1.55

Armature inductance (mH)

6.71

Electric constant (ms)

4.30

Insulation class

Class A (UL), Class B (CE)

Insulation resistance

> 100 M ohm , DC 500 V

Insulation strength

1.8k Vac, 1 sec

Weight (kg)  (without brake)

1.6 Kg

Radial max. loading (N)

196

Axial max. loading (N)

68

Power rating (kW/s) (with brake)

53.8

Rotor inertia  (× 10-4kg.m2) (with brake)

0.30

Mechanical constant (ms) (with brake)

0.57

Vibration grade (μm)

15

Operating temperature

0~40  degree centigrade

Storage temperature

-10~80  degree centigrade

Operating humidity

20% to 90% RH (non-condensing)

Storage humidity

20% to 90% RH (non-condensing)

Vibration capacity

2.5G

IP Rating

IP65

Approvals

CE  UL
