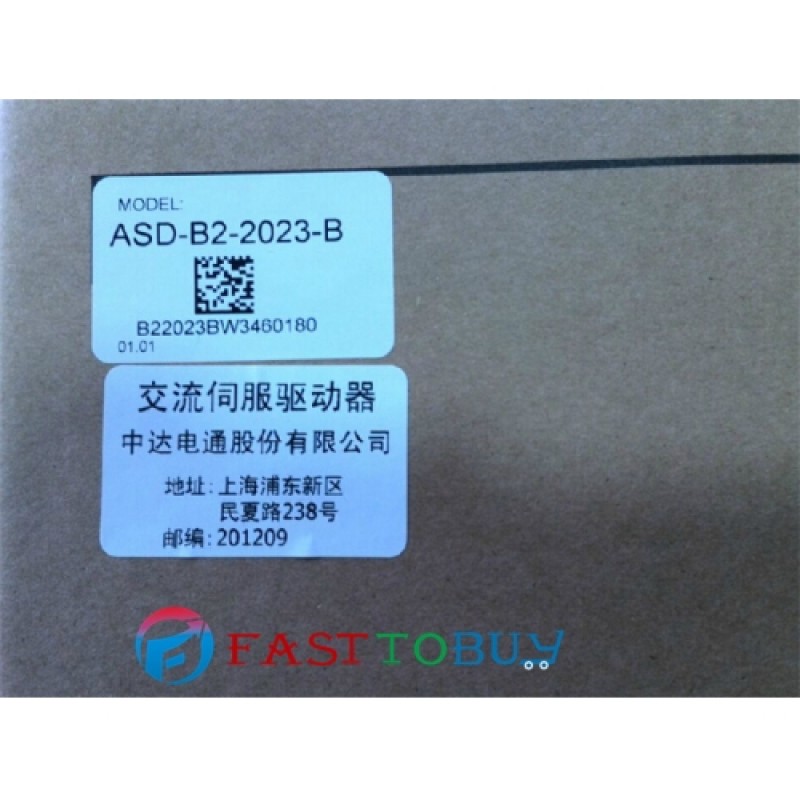

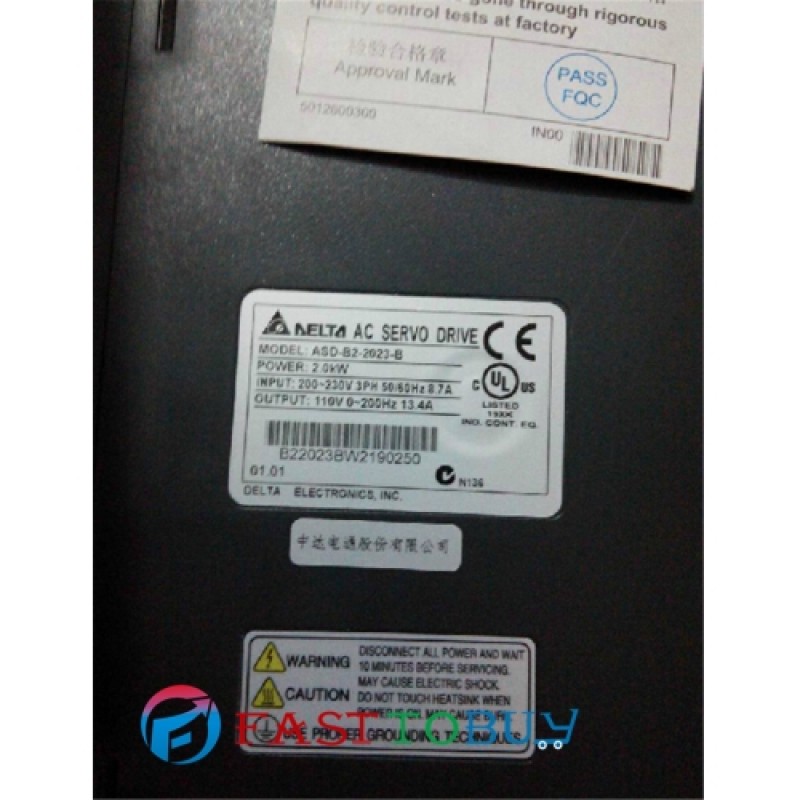

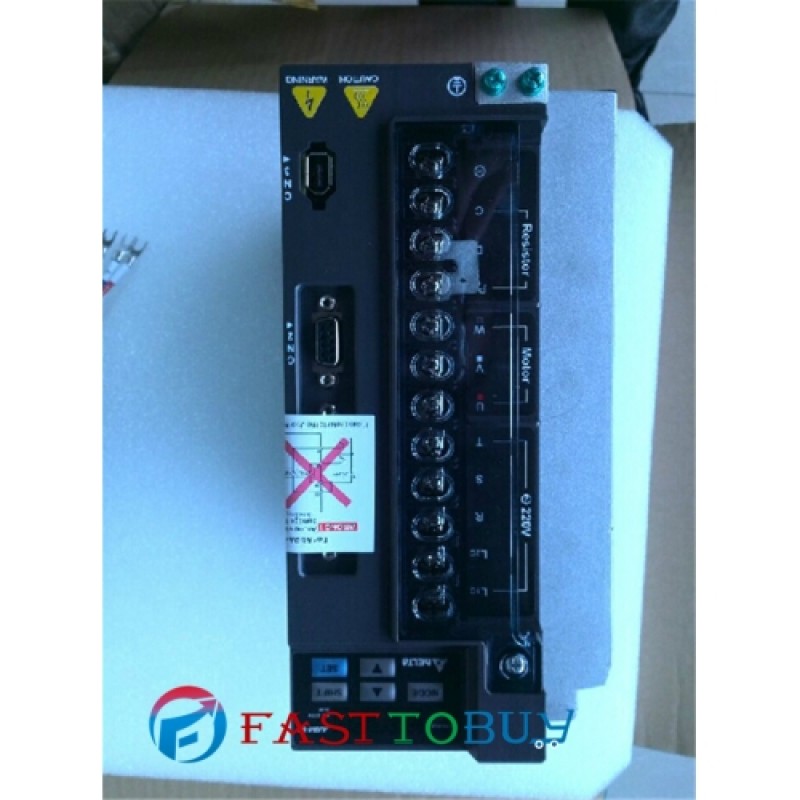

ASD-B2-2023-B Detla AC Sevor Drive 3ph 220V 2kW 13.4A New

Model

ASD-B2-2023-B

Product Name

AC SERVO Drive

Corresponding Servo Motor

ECMA- C*1020( )S (S = 22mm)

ECMA- E*1320( )S (S = 22mm)

ECMA- E*1820( )S (S = 35mm)

ECMA-F*1313( )S (S = 22mm)

ECMA-F11318( )S (S = 22mm)

Series

ASD-B2

Rated power

2KW

Power

Supply

Phase / Voltage

Three-phase:170 ~ 255VAC,50/60Hz ±5%

Continuous Output Current

13.4 Arms

Cooling method

Fan Cooling

Encoder Resolution /Feedback Resolution

17-bit (160000 p/rev)

Main Circuit Control

SVPWM Control

Tuning Modes

Auto/Manual

Dynamic Brake

Built-in

Position

Control

Mode

Max. Input Pulse

Frequency

Line driver: Max. 500Kpps (low speed)/Max.4Mpps(high speed) Open collector: Max. 200Kpps

Pulse Type

Pulse + Direction, A phase + B phase, CCW pulse + CW pulse

Command Source

External pulse train

Smoothing Strategy

Low-pass filter

Electronic Gear

Electronic gear N/M multiple N: 1 ~ (2 26 -1)/M:1 ~ (2 31 -1)

1/50 < N/M < 25600

Torque Limit Operation

Set by parameters

Feed Forward Compensation

Set by parameters

Speed

Control

Mode

Analog

Input

Command

Voltage

Range

0 ~ ±10 VDC

Input

Resistance

10 KΩ

Time

Constant

2.2 us

Speed Control Range*1

1 : 5000

Command Source

External analog signal /Internal parameters

Smoothing Strategy

Low-pass and S-curve filter

Torque Limit Operation

Set by parameters or via Analog input

Responsiveness

Characteristic

Maximum 550Hz

Speed Fluctuation Rate *2(at rated speed)

0.01% or less at load fluctuation 0 to 100%

0.01% or less at power fluctuation ±10%

0.01% or less at 0 to 50 degree centigrade ambient temperature fluctuation

Torque

Control

Mode

Analog

Command

Input

Voltage

Range

0 ~ ±10 VDC

Input

Resistance

10 KΩ

Time

Constant

2.2 us

Command Source

External analog signal / Internal parameters

Smoothing Strategy

Low-pass filter

Speed Limit Operation

Parameter Setting or via Analog input

Analog Monitor Output

Monitor signal can set by parameters (Output voltage range: ±8 V)
