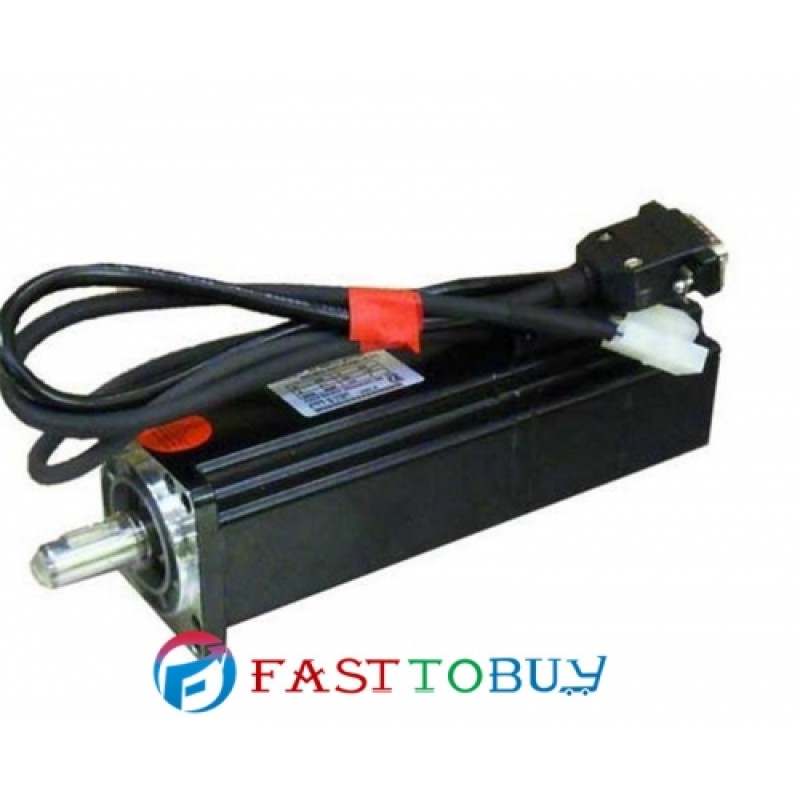

AC220V 750W 3.9A 2.39NM 3Krpm 80mm AC Servo Motor Drive Kit SME80S-0075-30AAK-3LKH+CD422-AA-000 with 3M cable

Motor series

Small inertia, flange size 80mm

Model

SME80S-0075-30AAK-3LKH

DC link voltage UDC

300

Continuous
 performance

Rated power   PN (W)

750

Rated torque   TN (Nm)

2.39

Rated speed nN (rpm)

3000

Rated current IN (A)

3.9

Maximum torque  Tm (Nm)

7.17

Maximum current  Im (A)

11.7

Standstill torque  TS (Nm)

2.63

Standstill current  IS (A)

4.29

Resistance line-line RL (ohm)

3

Inductance line-line  LL (mH)

16.2

Electrical time constant τe (ms)

5.4

Mechanical time constant τm (ms)

1.49

Reverse voltage constant Ke (V/krpm)

40

Torque constant Kt (Nm/A)

0.662

Rotor moment of inertia Jm (Kg·cm² )

1.255

Pole pair number

3

Maximum voltage rising du/dt (KV/μs)

8

Insulation class

F

Maximum radial force F (N)

335

Maximum axial force  F (N)

167.5

Weight  G(Kg)

2.9

Length of motor  L(mm)

132±1.5

Position feedback device

Incremental encoder 2500ppr

Cooling method

Totally enclosed, non-ventilated

Protection level

IP65 for body, shaft sealing IP54

Environmental
conditions for
operation

Temperature

-20centigrade degree~40centigrade degree

Humidity

Below 90% RH (No condensing)

Ambient enviroment

Away from active gas, combustible gas, oil drops and dust

Altitude

Maximum altitude 4000m, Rated power at 1000m or below, Above 1000m: Decreasing 1.5% per 100m rise

Model parameter

CD422-AA-000

Power

Main supply voltage

1phase AC220V -20/+15% 47~63Hz

Control circuit voltage

18VDC~30VDC 1A

Current

Rated current(RMS)

4A

Peak current(PEAK)

15A

Feedback signal

2500PPR (incremental encoder with 5V supply)

Brake chopper

Use an external braking resistor according to application, mainly in occasion of quick stop.

Brake chopper threshold

DC380V±5V

Over-voltage alarming threshold

DC400V±5V

Under-voltage alarming threshold

DC200V±5V

Cooling method

Natural air cooling

Weight

1.2kg

Position
Mode

Max. frequency of input pulse

Differential signal: 500KPPS, Open-collector signal: 200KPPS

Pulse command mode

Pulse+direction, CCW+CW, A+B phase (5V-24V)

Command smoothing

Low-pass filtering(Internal parameters)

Feedforward gain

Internal parameters

Electronic gear ratio

Setting range, Gear factor: -32768~32767, Gear divider: 1~32767, 1/50≤|Gear factor/Gear divider|≤50

Position loop sampling frequency

1KHz

Speed
Mode

Analog input voltage range

-10 ~+10V(Resolution 12bit)

Input impedance

200K

Analog input sampling frequency

4KHz

Command source

External analog command/internal command

Command smoothing

Low-pass filtering(Internal parameters)

Input voltage dead-zone setting

Internal parameters

Input voltage offset setting

Internal parameters

Speed limit

Internal parameters

Torque limit

Internal parameters / External analog command control

Speed loop sampling frequency

4KHz

Torque
Mode

Analog voltage input range

-10 ~+10V (Resolution 12bit)

Input impedance

200K

Input sampling frequency

4KHz

Command source

External analog command/internal command

Command smoothing

Low-pass filtering(Internal parameters)

Speed limit

Internal parameters /External analog command control

Input voltage dead-zone setting

Internal parameters

Input voltage offset setting

Internal parameters

Current sampling frequency

16KHz

Digital
Input

Input specification

7 digital inputs, with COMI terminal for PNP (high level valid 12.5-30V)or NPN (low level valid) connection.

Input function

Define freely according to requirement, supporting following functions: Driver enable, driver fault reset, driver mode control, proportional control, positive limit, negative limit, homing signal, reverse command, internal speed section control, internal positive section control, quick stop, start homing, active command, switch electronic gear ratio, switch gain

Digital
Onput

Output specification

5 digital outputs,OUT1 - OUT4 current is 100mA, BR+/BR- (Brake control output ) current is 500mA, can drive brake device directly

Output function

Define freely according to requirement, supporting following functions: Driver ready, driver fault, position reached, motor at zero speed, motor brake, motor speed reached, N signal, maximum speed obtained in torque mode, motor brake, position limiting, reference found, multi-position reached

Protection functions

Over-voltage protection, under-voltage protection, motor over-heat protection(I²T),short-circuit protection, drive over-heat protection,etc.

Communication interface

RS232 (Connections with PC: 2-2, 3-3, 5-5)

Operation
Environment

Operating temperature

0 - 40centigrade degree

Storage temperature

-10centigrade degree - 70centigrade degree

Humidity(non-condensing)

Below 90%RH

Protection class

IP20

Installation environment

Installed in a dust-free, dry and lockable environment(such as in a electrical cabinet)

Installation mode

Vertical installation

Height

No power limitation below 1000m

Atmospheric pressure

86kpa~106kpa
