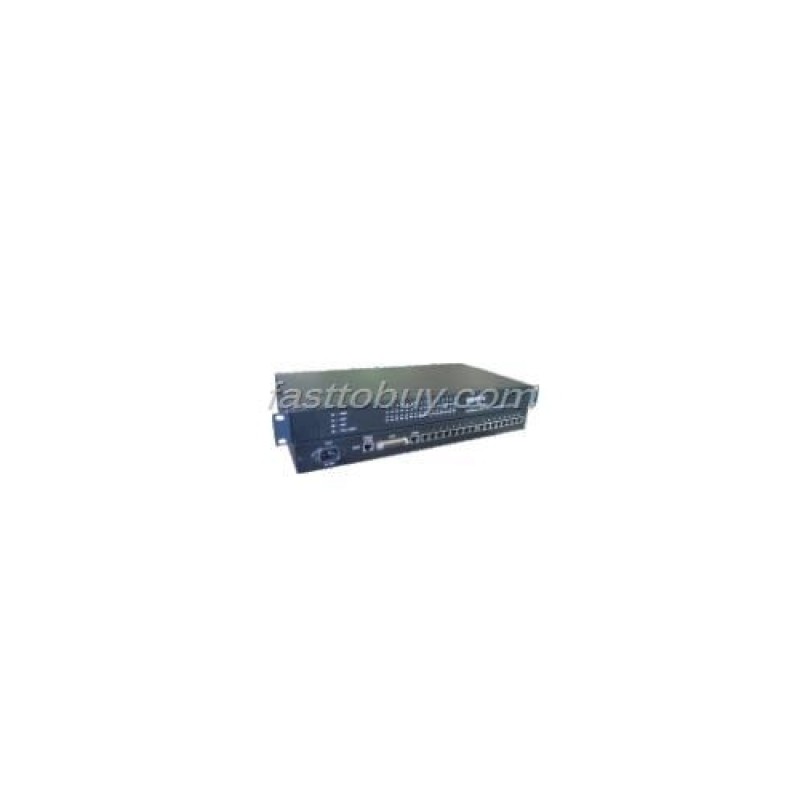

Ethernet to Serial Server TCP/IP to RS-232/485/422 UT-6616 16 ports NEW

If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:
email:[email protected]
Tel:0086-574- 88333153
We will quote you our best price to you in 24hours.

Product Description:

UT-6616 serial communication server, also known as a terminal server or serial server is a converter between the asynchronous serial port RS422/485 and Ethernet. Is an independent smart device with a CPU and embedded OS and complete the TCP / IP protocol stack. Complete bi-directional data transparent transmission between RS422/485 and Ethernet, RS422/485 serial devices to join the network immediately.

Features:

? Support dynamic IP (DHCP) and static IP.
? to support gateway and proxy server through the Internet to transfer data.
? provides bi-directional data transparent transmission, serial to TCP / IP functionality, users do not need to make any changes to the original system. Internal integration ARP, IP, TCP, HTTP, ICMP, SOCKET, UDP and other protocols. All Programs English interface, the Setup Wizard, can be used as long as the will to use the computer.

Hardware features:

? English menu configuration interface, operating mode, to meet different industry applications;
? Windows virtual COM driver;
? reasonable and flexible of UNIX under Fixedtty working mechanism;
? has 16 serial ports can be connected to the terminal, Modem, Barcode machines, cash registers, ISDN terminal adapters, serial printers, and PC, and other serial devices to achieve cost-effective;
? Reset button can force a reset when the machine crashes;
? 10/100M adaptive Ethernet ports, support manual settings;
? each serial port to provide a complete signal, DCD, Rx, Tx, DTR, DSR, RTS, CTS, GND;
? 32-bit embedded 100 MB CPU, 8M RAM The overall performance is strong;
? Each network port and serial port has a separate indicator to indicate working status;

Software features:

? supports ARP, IP, ICMP, UDP, TCP, PPP, HTTP, TELNET, DNS, DHCP, PAP, CHAP protocols such
? support
fully the Windows extended serial mode driver based on the Windows platform extension serial (com) and provide concise and easy-to-use Windows platform management program in the drives under WindowsNT/Windows2000/WindowsXP up 1024 serial. In this mode, the UT-6600 Series serial server serial port can be mapped into a the Window host of local COM port. This means that the use of these serial like to use local COM port on the host, but also on behalf of all existing software applications in the original serial devices or communication modules are can be used directly without modifying.
