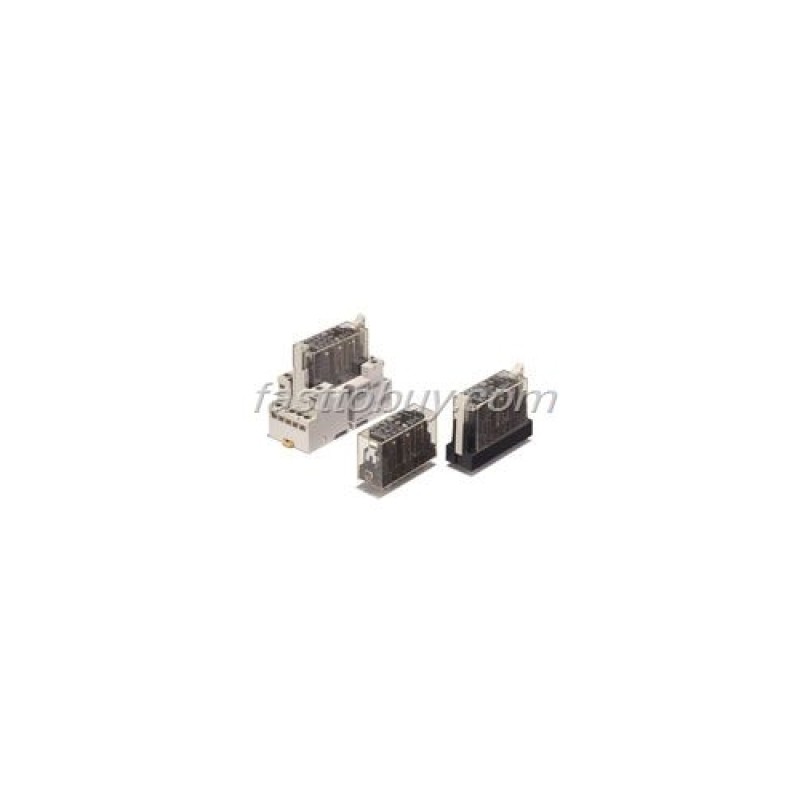

P7S-14F OMRON RELAY BASE NewProduct Description??Relays with forcibly guided contacts (EN50205 Class... Read More
$3.00
Ex Tax: $3.00
  • Stock: In Stock
  • Model: P7S-14F
  • Weight: 0.07kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: P7S-14F
P7S-14F OMRON RELAY BASE New

Product Description?

?Relays with forcibly guided contacts (EN50205 Class A, certified by VDE).

Supports the CE marking of machinery (Machinery Directive).

Helps avoid hazardous machine status when used as part of an interlocking circuit.

Track-mounting and Back-mounting Sockets are available.

Specifications:

Ratings

Coil

Item

Rated current
(mA)

Coil resistance
(Ω)

Must operate
voltage (V)

Must release
voltage (V)

Max. voltage
(V)

Power consumption
(W)

24 VDC

30

800

80% max.

10% min.

110%

Approx. 0.8

Note:
1. The rated current and coil resistance are measured at a coil temperature of 23°C with tolerances of ±15%.
2. Performance characteristics are based on a coil temperature of 23°C.
3. The maximum voltage is based on an ambient operating temperature of 23°C maximum.

Contacts

Load

Resistive load

Inductive load *

Rated load

NO contact

10 A at 250 VAC
10 A at 30 VDC

AC-15: 5 A at 240 VAC
DC-13: 2 A at 24 VDC

NC contact

6 A at 250 VAC
6 A at 30 VDC

AC-15: 3 A at 240 VAC
DC-13: 2 A at 24 VDC

Rated carry current

NO contact

10A

NC contact

6A

Maximum switching voltage

250 VAC, 30 VDC

Maximum switching current

NO contact

10A

NC contact

6A

*In the above table, cosΦ = 0.3 for AC-15 inductive loads and L/R = 96 ms for DC-13 inductive loads
