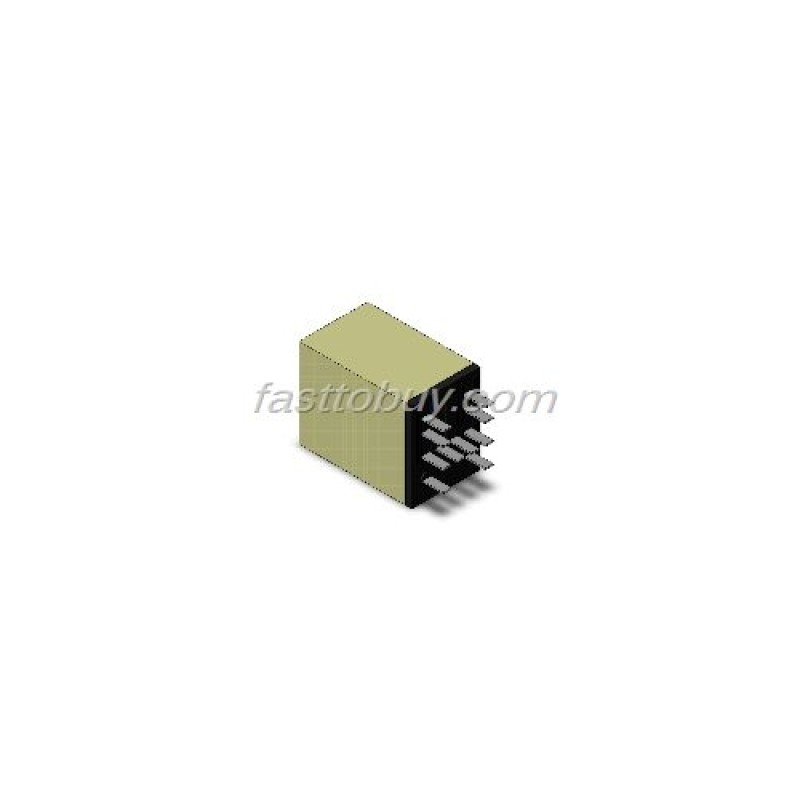

MY2K DC24V RELAY New

Ratings

Product classification

Bistable relays
Standard type

Coil ratings

Operate 24 VDC 52 mA
Release 24 VDC 25 mA

Coil resistance

Operate: 470 Ohm
Release: 940 Ohm

Operate voltage (Set voltage)

80% Max.

Release voltage (Reset voltage)

80% Max.

Max. voltage

110% (of rated voltage)

Power consumption (Latching (Operate))

1.3 W

Power consumption (Latching (Release))

0.6 W

Operating indicator

Not equipped

Coil surge killer

Not equipped

Contact Type

DPDT

Contact method

Single

Contact material

Contact body material: Ag
Contact finish: Au plated

Contact rated load

220 VAC 3 A (Resistive load (cos phi = 1))
220 VAC 0.8 A (Inductive load (cos phi = 0.4))
24 VDC 3 A (Resistive load)
24 VDC 1.5 A (Inductive load (L/R = 7 ms))

Maximum switching voltage

250 VAC (Resistive load (cos phi = 1))
250 VAC (Inductive load (cos phi = 0.4))
125 VDC (Resistive load)
125 VDC (Inductive load (L/R = 7 ms))

Maximum switching current

AC: 3 A (Resistive load (cos phi = 1))
AC: 3 A (Inductive load (cos phi = 0.4))
DC: 3 A (Resistive load)
DC: 3 A (Inductive load (L/R = 7 ms))

Maximum switching power

AC: 660 VA (Resistive load (cos phi = 1))
AC: 176 VA (Inductive load (cos phi = 0.4))

Failure rate

1 mA at 1 VDC (failure level: P Reference value)

Ambient temperature

Operating: -55 to 60 CEL
Storage: -55 to 60 CEL
(with no icing or condensation)

Ambient humidity

Operating: 5 to 85% RH
Storage: 5 to 85% RH
(with no icing or condensation)

Characteristics

Contact resistance

Max. 50 mOhm, Measuring the voltage drop across the contacts by applying test voltage/current as 5 VDC 1 A

Operating time (set time)

15 ms Max.

Release time (Reset time)

15 ms Max.

Min.set-reset signal width

30 ms Min.

Max.operating frequency (Mechanical)

18000 opn./h

Max.operating frequency (Erectrical)

1800 opn./h

Insulation resistance

Between coil and contacts: 100 MOhm Min. (at 500 VDC)
Between contacts of different polarity: 100 MOhm Min. (at 500 VDC)
Between contacts of same polarity: 100 MOhm Min. (at 500 VDC)
Between set and reset coils: 100 MOhm Min. (at 500 VDC)

Dielectric strength

Between coil and contacts: 1500 VAC 50/60 Hz for 1 min (Leakage current 3 mA 50/60 Hz 1 min)
Between contacts of different polarity: 1500 VAC 50/60 Hz for 1 min (Leakage current 3 mA 50/60 Hz 1 min)
Between contacts of same polarity: 1000 VAC 50/60 Hz for 1 min (Leakage current 3 mA 50/60 Hz 1 min)
Between set and reset coils: 1000 VAC 50/60 Hz for 1 min (Leakage current 3 mA 50/60 Hz 1 min)

Vibration resistance (Destruction)

10 to 55 to 10 Hz 0.5-mm single amplitude (1.0-mm double amplitude) for 2 hours each in X, Y, and Z directions (No defect in appearance and construction after applying variable vibration in each directions for 2 hours.)

Vibration resistance (Malfunction)

10 to 55 to 10 Hz 0.5-mm single amplitude (1.0-mm double amplitude) in each direction

Shock resistance (Destruction)

1000 m/s**2 each direction 3 times (No defect in appearance and construction after applying shock in each directions 3 times.)

Shock resistance (Malfunction)

200 m/s**2 (Contacts must not open for 1 ms or longer after the relay is subjected to a shock in each direction 3 times.)

Endurance (Mechanical)

100000000 operations Min.

Endurance (Electrical)

200000 operations Min.

Protective structure

Closed type (cover)

Applicable standard (UL)

Standard No.: UL508
File No.: E41515

Applicable standard (CSA)

Standard No.: C22.2 No.0, No.14
File No.: LR31928

Terminal structure

PCB

Weight

Approx. 30 g
