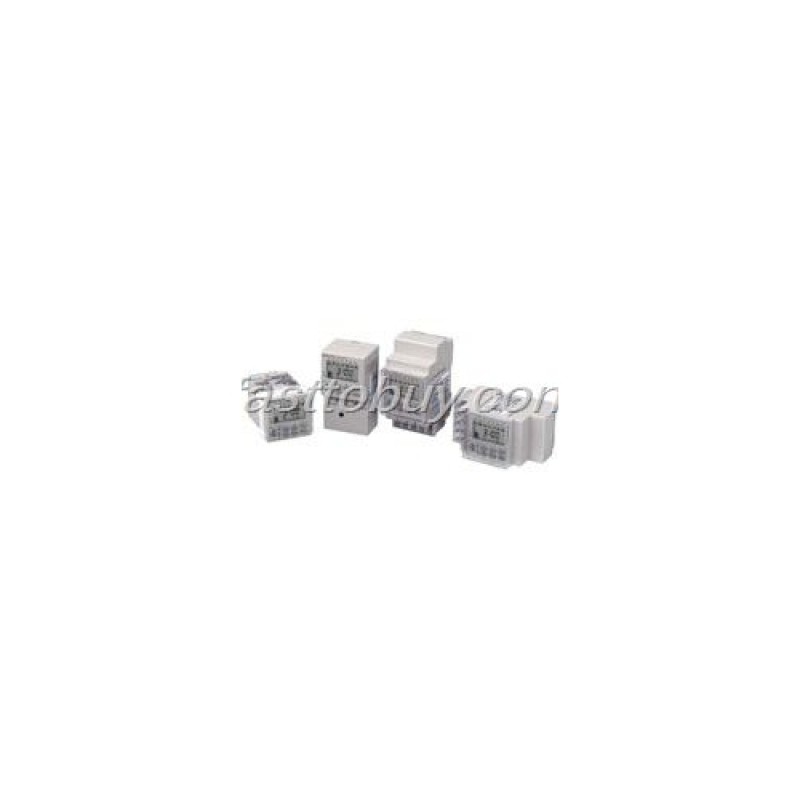

H5F-B AC100-240V Time Relay NEW

Accuracy of

±0.01% ±0.05 s max. (see note 1)

operating time

Setting error

Influence of voltage

Influence of

temperature

Time accuracy

±15 s per month (at 25°C)

Memory protection

Continuous use: 5 years min. (at 25°C); Power-interruption rate of 50%: 10 years min. (at 25°C) (see note 2) (lithium battery)

Insulation resistance

100 MΩ min. (between current-carrying terminals and exposed non-current-carrying metal parts, between operating power supply circuit and control output circuit and between non-continuous contacts)

Dielectric strength

2,000 VAC, 50/60 Hz for 1 min (between current-carrying terminals and exposed non-current-carrying metal parts and between operating power supply circuit and control output circuit)

1,000 VAC, 50/60 Hz for 1 min (between non-continuous contacts)

Noise immunity

1.5 kV (between power terminals)

Square-wave noise by noise simulator (pulse width: 100 ns/1 μs, 1-ns rise)

Vibration resistance

Destruction: 10 to 55 Hz with 0.375-mm single amplitude, four cycles each in three directions (8 minutes per cycle)

Malfunction: 10 to 55 Hz with 0.25-mm single amplitude for 10 minutes each in three directions

Shock resistance

Destruction: 300 m/s2 3 times each in 6 directions

Malfunction: 100 m/s2 3 times each in 6 directions

Ambient temperature

Operating: -10°C to 55°C (with no icing)

Storage: -25°C to 65°C (with no icing)

Ambient humidity

Operating: 35% to 85%

Life expectancy

Mechanical (at 20°C):

100,000 operations min.

Electrical (at 20°C):

50,000 operations min. (15 A, 250 VAC, resistive load)

50,000 operations min. (1 HP, 250 VAC, motor load)

50,000 operations min. (10 A, 250 VAC, inductive load (cosΦ = 0.7))

50,000 operations min. (100 W, 100 VAC, lamp load)

10,000 operations min. (300 W, 100 VAC, lamp load)

Approved safety

UL508/Listing, CSA C22.2 No. 14, conforms to EN61010-1 (Pollution degree 2/overvoltage category II)

standards

Conforms to VDE0106/P100 (finger protection).

Conforms to Electrical Appliance and Material Safety Law (for Japan)

EMC

(EMI): EN61326

Emission Enclosure: EN55011 Group 1 class A

Emission AC mains: EN55011 Group 1 class A

(EMS): EN61326

Immunity ESD: EN61000-4-2: 4 kV contact discharge (level 2), 8 kV air discharge (level 3)

Immunity RF-interference: EN61000-4-3: 10 V/m (Amplitude-modulated, 80 MHz to 1 GHz, 1.4 to 2 GHz) (level 3)

Immunity Conducted Disturbance: EN61000-4-6: 10 V (0.15 to 80 MHz) (according to EN61000-6-2)

Immunity Burst: EN61000-4-4: 2 kV power-line (level 3), 1 kV I/O signal-line (level 4)

Immunity Surge: EN61000-4-5: 1 kV line to lines (power and output lines) (level 2); 2 kV line to ground (power and output lines) (level 3)

Immunity Voltage Dip/Interruption: EN61000-4-11: 0.5 cycle, 100% (rated voltage)

Immunity Magnetic Power Field: EN61000-4-8: 30 A/m

Case color

Light gray (Munsell 5Y7/1)

Weight

H5F-B: approx. 115 g; H5F-KB: approx. 160 g; H5F-FB: approx. 130 g
