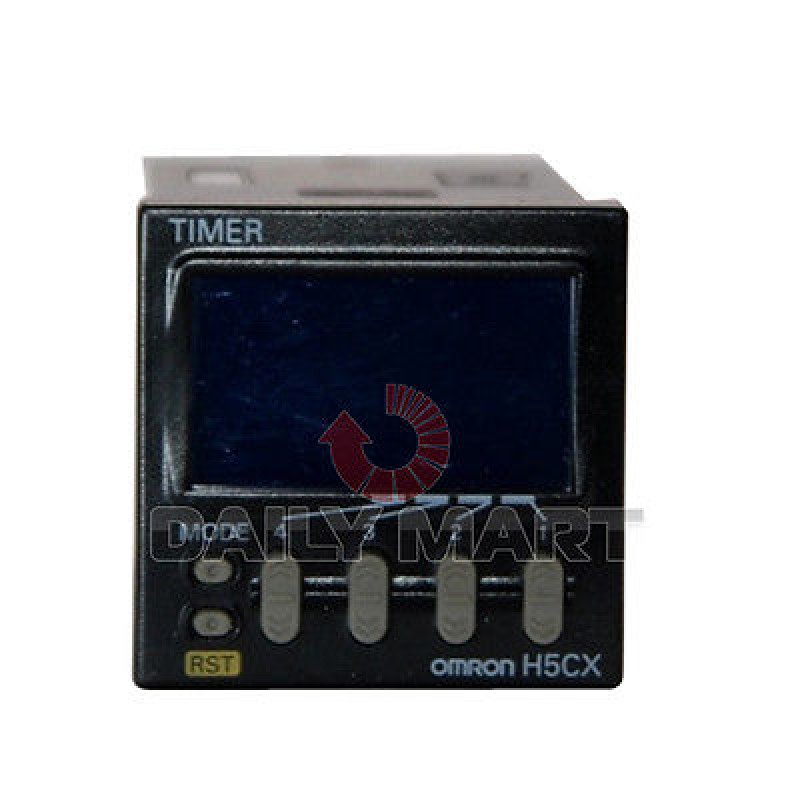

H5CX-AD-N Time Relay NEW

Accuracy of operating

Power-ON start: ±0.01% ±50 ms max. (See note 1.)

time and setting error

Signal start: ±0.005%±30 ms max. (See note 1.)

(including temperature

Signal start for transistor output model: ±0.005%±3 ms max. (See note 1 and 2.)

and voltage influences)

If the set value is within the sensor waiting time at startup the control output of the H5CX will not turn ON until the sensor waiting time passes.

Note:

1. The values are based on the set value.

2. The value is applied for a minimum pulse width of 1 ms.

Insulation resistance

100 MΩ min. (at 500 VDC) between current-carrying terminal and exposed non-current-carrying metal parts, and between non-continuous contacts

Dielectric strength

2,000 VAC, 50/60 Hz for 1 min between current-carrying metal parts and non-current-carrying metal parts

2,000 VAC, 50/60 Hz for 1 min between power supply and input circuits for the models other than H5CX-[]D-N

1,000 VAC, 50/60 Hz for 1 min between control output, power supply, and input circuits for H5CX-[]SD-N

2,000 VAC, 50/60 Hz for 1 min between control output, power supply, and input circuits for other models

1,000 VAC, 50/60 Hz for 1 min between non-continuous contacts

Impulse withstand voltage

3 kV (between power terminals) for 100 to 240 VAC, 1 kV for 24 VAC/12 to 24 VDC

4.5 kV (between current-carrying terminal and exposed non-current-carrying metal parts) for 100 to 240 VAC 1.5 kV for 24 VAC/12 to 24 VDC

Noise immunity

±1.5 kV (between power terminals) and ±600 V (between input terminals), square-wave noise by noise simulator (pulse width: 100 ns/ 1 μs, 1-ns rise)

Static immunity

Malfunction: 8 kV

Destruction: 15 kV

Vibration

Destruction

10 to 55 Hz with 0.75-mm single amplitude each in three directions for 2 h each

resistance

Malfunction

10 to 55 Hz with 0.35-mm single amplitude each in three directions for 10 min each

Shock

Destruction

300 m/s2 in three directions, three cycles

resistance

Malfunction

100 m/s2 in three directions, three cycles

Life

Mechanical

10,000,000 operations min. (under no load at 1,800 operations/h and ambient temperature of 23°C)

expectancy

Electrical

100,000 operations min. (5 A at 250 VAC, resistive load at 1,800 operations/h and ambient temperature of 23°C) *

Weight

Approx. 115 g (Timer only)
