H3Y-2 DC24 10S Time Relay NEW

H3Y-2 DC24 10S Time Relay NEW
H3Y-2 DC24 10S Time Relay NEW
H3Y-2 DC24 10S Time Relay NEW
H3Y-2 DC24 10S Time Relay NEW
H3Y-2 DC24 10S Time Relay NEW
H3Y-2 DC24 10S OMRON Time Relay NEWOMRON Time Relay H3Y-2 DC24 10S                Product Descriptio... Read More
0 reviews • Write a review
$11.00
Ex Tax: $11.00
  • Stock: In Stock
  • Model: H3Y-2
  • Weight: 0.05kg
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.

We accept many payments,include Paypal,Bank Transfer etc
10pcs/Lot LRE02N EasyPact TVS Thermorelay 0.16~0.25A New
Quickview
10pcs/Lot LRE02N EasyPact TVS Thermorelay 0.16~0.25A New
$90.00
Ex Tax:$90.00
Add to Cart Add to Wish List Compare this Product
10pcs/Lot LRE03N EasyPact TVS Thermorelay 0.25~0.40A New
Quickview
10pcs/Lot LRE03N EasyPact TVS Thermorelay 0.25~0.40A New
$90.00
Ex Tax:$90.00
Add to Cart Add to Wish List Compare this Product
10pcs/Lot LRE04N EasyPact TVS Thermorelay 0.40~0.63A New
Quickview
10pcs/Lot LRE04N EasyPact TVS Thermorelay 0.40~0.63A New
$90.00
Ex Tax:$90.00
Add to Cart Add to Wish List Compare this Product
10pcs/Lot LRE05N EasyPact TVS Thermorelay 0.63~1A New
Quickview
10pcs/Lot LRE05N EasyPact TVS Thermorelay 0.63~1A New
$90.00
Ex Tax:$90.00
Add to Cart Add to Wish List Compare this Product
10pcs/Lot LRE06N EasyPact TVS Thermorelay 1~1.6A New
Quickview
10pcs/Lot LRE06N EasyPact TVS Thermorelay 1~1.6A New
$90.00
Ex Tax:$90.00
Add to Cart Add to Wish List Compare this Product
10pcs/Lot LRE07N EasyPact TVS Thermorelay 1.6~2.5A New
Quickview
10pcs/Lot LRE07N EasyPact TVS Thermorelay 1.6~2.5A New
$90.00
Ex Tax:$90.00
Add to Cart Add to Wish List Compare this Product
10pcs/Lot LRE08N EasyPact TVS Thermorelay 2.5~4A New
Quickview
10pcs/Lot LRE08N EasyPact TVS Thermorelay 2.5~4A New
$90.00
Ex Tax:$90.00
Add to Cart Add to Wish List Compare this Product
10pcs/Lot LRE12N EasyPact TVS Thermorelay 5.5~8A New
Quickview
10pcs/Lot LRE12N EasyPact TVS Thermorelay 5.5~8A New
$90.00
Ex Tax:$90.00
Add to Cart Add to Wish List Compare this Product
Tags: H3Y-2

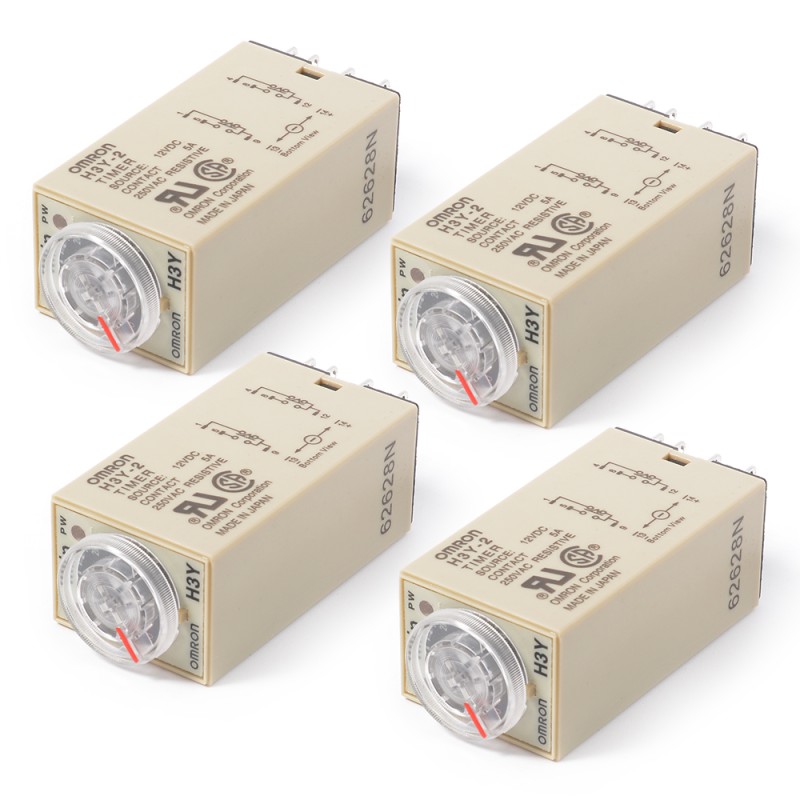

H3Y-2 DC24 10S OMRON Time Relay NEW
