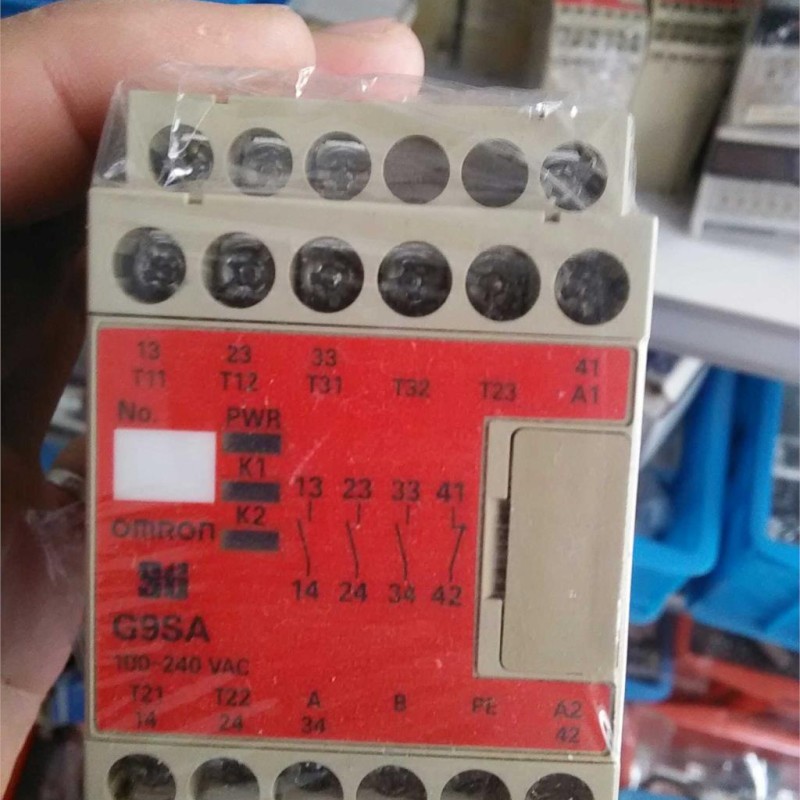

G9SA-301 AC/DC24V Relay NEW

G9SA-301 AC/DC24V Relay NEW
G9SA-301 AC/DC24V Relay NEW
G9SA-301 AC/DC24V Relay NEW
G9SA-301 AC/DC24V Relay NEW
G9SA-301 AC/DC24V Relay NEW
G9SA-301 OMRON RELAY NewProduct Description?Four kinds of 45-mm wide Units are available:A 3-pole mo... Read More
0 reviews • Write a review
$201.00
Ex Tax: $201.00
  • Stock: In Stock
  • Model: G9SA-301
  • Weight: 0.10kg
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.

We accept many payments,include Paypal,Bank Transfer etc
10pcs/Lot LRE02N EasyPact TVS Thermorelay 0.16~0.25A New
Quickview
10pcs/Lot LRE02N EasyPact TVS Thermorelay 0.16~0.25A New
$90.00
Ex Tax:$90.00
Add to Cart Add to Wish List Compare this Product
10pcs/Lot LRE03N EasyPact TVS Thermorelay 0.25~0.40A New
Quickview
10pcs/Lot LRE03N EasyPact TVS Thermorelay 0.25~0.40A New
$90.00
Ex Tax:$90.00
Add to Cart Add to Wish List Compare this Product
10pcs/Lot LRE04N EasyPact TVS Thermorelay 0.40~0.63A New
Quickview
10pcs/Lot LRE04N EasyPact TVS Thermorelay 0.40~0.63A New
$90.00
Ex Tax:$90.00
Add to Cart Add to Wish List Compare this Product
10pcs/Lot LRE05N EasyPact TVS Thermorelay 0.63~1A New
Quickview
10pcs/Lot LRE05N EasyPact TVS Thermorelay 0.63~1A New
$90.00
Ex Tax:$90.00
Add to Cart Add to Wish List Compare this Product
10pcs/Lot LRE06N EasyPact TVS Thermorelay 1~1.6A New
Quickview
10pcs/Lot LRE06N EasyPact TVS Thermorelay 1~1.6A New
$90.00
Ex Tax:$90.00
Add to Cart Add to Wish List Compare this Product
10pcs/Lot LRE07N EasyPact TVS Thermorelay 1.6~2.5A New
Quickview
10pcs/Lot LRE07N EasyPact TVS Thermorelay 1.6~2.5A New
$90.00
Ex Tax:$90.00
Add to Cart Add to Wish List Compare this Product
10pcs/Lot LRE08N EasyPact TVS Thermorelay 2.5~4A New
Quickview
10pcs/Lot LRE08N EasyPact TVS Thermorelay 2.5~4A New
$90.00
Ex Tax:$90.00
Add to Cart Add to Wish List Compare this Product
10pcs/Lot LRE12N EasyPact TVS Thermorelay 5.5~8A New
Quickview
10pcs/Lot LRE12N EasyPact TVS Thermorelay 5.5~8A New
$90.00
Ex Tax:$90.00
Add to Cart Add to Wish List Compare this Product
Tags: G9SA-301
G9SA-301 OMRON RELAY New

Product Description?

Four kinds of 45-mm wide Units are available:
A 3-pole model, a 5-pole model, and models with 3 poles and 2 OFF-delay poles, as well as a Two-hand Controller.
Also available are 17.5-mm wide Expansion Units with 3 poles and 3 OFF-delay poles.

Simple expansion connection.

OFF-delay models have 15-step OFF-delay settings.

Conforms to EN ISO13849-1 (Cat.4/PLe).

Both DIN track mounting and screw mounting are possible.

Specifications:

Model

G9SA-301/TH301

G9SA-501

G9SA-321-T[]



Power supply
voltage

24 VAC/VDC: 24 VAC, 50/60 Hz, or 24 VDC
100 to 240 VAC: 100 to 240 VAC, 50/60 Hz




Operating
voltage range

85% to 110% of rated power supply voltage



Power
consumption*

24 VAC/VDC: 1.8 VA/1.7 W max.
100 to 240 VAC: 9 VA max.

24 VAC/VDC: 2.8 VA/2.6 W max.
100 to 240 VAC: 11 VA max.

24 VAC/VDC: 3.5 VA/3.3 W max.
100 to 240 VAC: 12.5 VA max.




*When an Expansion Unit is connected, the power consumption is increased by 2 VA/2 W max.

Inputs

Model

G9SA-301/321-T[]/TH301

G9SA-501

Input current *

40 mA max.

60 mA max

*When an Expansion Unit is connected, the input current is increased by 30 mA max.

Contacts

Model
Load

G9SA-301/501/321-T[]/TH301/EX301/EX031-T[]



Resistive load



Rated load

250 VAC, 5 A
30 VDC, 5 A




Rated carry current

5 A



Characteristics

Model

G9SA-301/TH301

G9SA-501/321-T[]

G9SA-EX301/EX031-T[]

Contact resistance *1

100 mΩ

Operating time *2

30 ms max.

Response time *3

10 ms max.

Insulation resistance *4

100 MΩ min. (at 500 VDC)

Dielectric
strength

Between different
outputs

2,500 VAC, 50/60 Hz for 1 min

Between inputs
and outputs

Between power
inputs and outputs

Between power inputs
and other inputs
(only for 100 to 240-V models)

Vibration resistance

10 to 55 to 10 Hz, 0.375-mm single amplitude
(0.75-mm double amplitude)

Shock
resistance

Destruction

300 m/s2

Malfunction

100 m/s2

Durability *5

Mechanical

5,000,000 operations min. (at approx. 7,200 operations/hr)

Electrical

100,000 operations min. (at approx. 1,800 operations/hr)

Failure rate (P Level) (reference value)

5 VDC, 1 mA

Ambient operating temperature

-25 to 55°C (with no icing or condensation)

Ambient operating humidity

35% to 85%

Terminal tightening torque

0.98 Nm

Weight *6

Approx. 210 g

Approx. 270 g

Approx. 130 g

*1.The contact resistance was measured with 1 A at 5 VDC using the voltage-drop method.
*2.Not Including bounce time.
*3.The response time is the time it takes for the main contact to open after the input is turned OFF. Includes bounce time.
*4.The insulation resistance was measured with 500 VDC at the same places that the dielectric strength was checked.
*5.The durability is for an ambient temperature of 15 to 35? and an ambient humidity of 25% to 75%.
*6.Weight shown is for 24-VAC/VDC type. For 100 to 240-VAC type, add approximately 20 g.

Caution: In the interest of product improvement, specifications are subject to change without notice.
