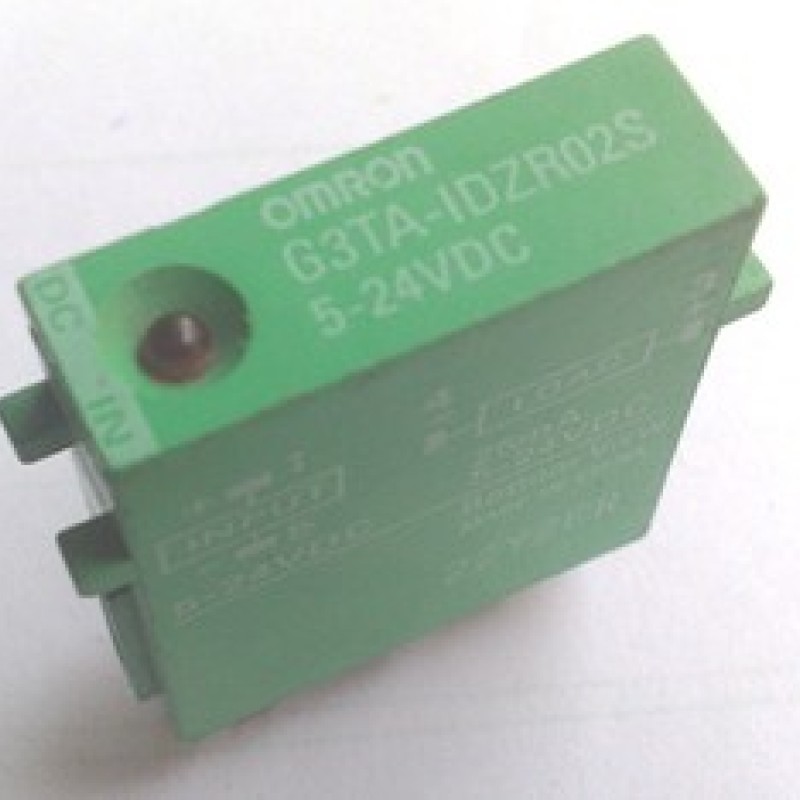

G3TA-IDZR02S RELAY New

G3TA-IDZR02S  RELAY  New
G3TA-IDZR02S  RELAY  New
G3TA-IDZR02S  RELAY  New
G3TA-IDZR02S  RELAY  New
G3TA-IDZR02S RELAY New
G3TA-IDZR02S OMRON RELAY NewProduct Description?Input and output modules are available in wide varie... Read More
$9.00
Ex Tax: $9.00
  • Stock: In Stock
  • Model: G3TA-IDZR02S
  • Weight: 0.02kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: G3TA-IDZR02S
G3TA-IDZR02S OMRON RELAY New

Product Description?

Input and output modules are available in wide variety.

Snaps easily into P7TF I/O Terminals and can be used together with G7T I/O relays.

Operation of each SSR can be monitored easily through an LED indicator.

Models certified for UL and CSA added to the series ("-US" models).

Specifications:

Model

Rated voltage

Operating voltage

Input
current

Voltage level

Must operate
voltage

Must release
voltage

G3TA-IAZR02S-US

100 to 240 VAC

80 to 264 VAC

5 mA max.

80 VAC max.

10 VAC min.

G3TA-IDZR02S-US

5 to 24 VDC

4 to 32 VDC

4 VDC max.

1 VDC min.

G3TA-IDZR02SM-US

4 to 24 VDC

3 to 32 VDC

3 VDC max.

Output

Model

Logic level supply
voltage

Output breakdown
voltage

Output current

Output current
(load current)

VCEO
(reference value)

G3TA-IAZR02S-US

4 to 32 VDC

32 VDC max.

25 mA max.

0.1 to 25 mA

80 V

G3TA-IDZR02S-US

G3TA-IDZR02SM-US

Item

G3TA-IAZR02S-US

G3TA-IDZR02S-US

G3TA-IDZR02SM-US

Operate time

20 ms max.

0.5 ms max.

Release time

20 ms max.

0.5 ms max.

Output ON voltage drop

1.6 V max.

1.6 V max.

Leakage current

5 μA max.

Insulation resistance

100 MΩ min. (at 500 VDC)

Dielectric strength

4,000 VAC, 50/60 Hz for 1 min between input and output

Vibration resistance

Malfunction: 10 to 55 to 10 Hz, 0.75-mm single amplitude

Shock resistance

Malfunction: 1,000 m/s2

Ambient temperature

Operating: -30°C to 80°C (with no icing or condensation)
Storage: -30°C to 100°C (with no icing or condensation)

Ambient humidity

Operating: 45% to 85%

Certified standards

UL508 file No. E64562/CSA C22.2 (No. 0, No. 14) file No. LR35535

Weight

Approx. 16 g



With up to four G3TA SSRs mounted before G7T Relays, switching is possible at the rated load current for each Relay.



With G3TA SSRs mounted before every other G7T Relays, switching is possible at the rated load current for each Relay.



Caution: In the interest of product improvement, specifications are subject to change without notice.
