- Stock: In Stock
- Model: G3FM-2R5SLN
- Weight: 0.05kg
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.
Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.

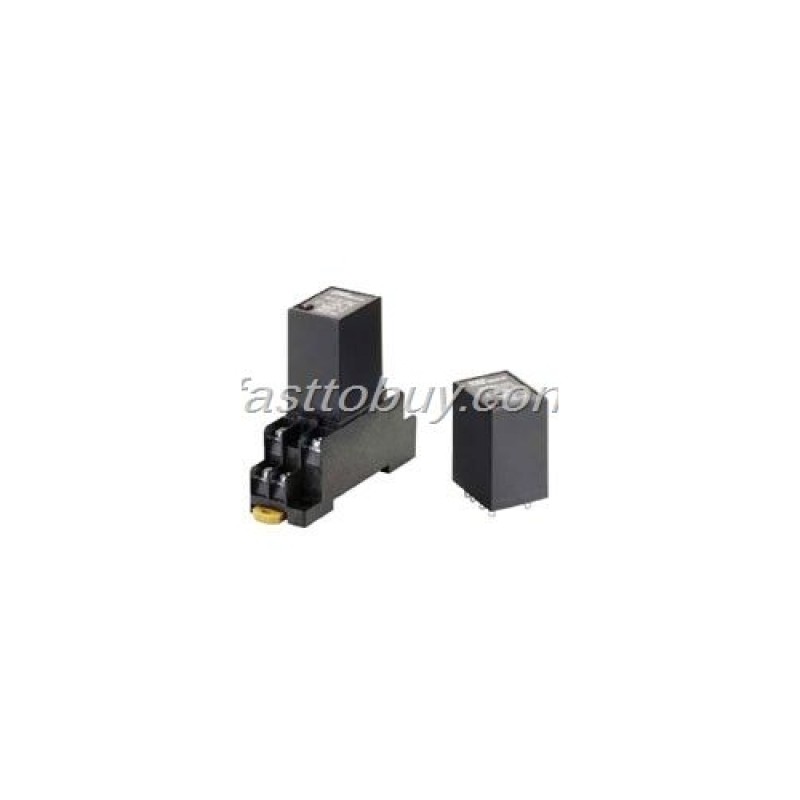

OMRON Solid State Relay G3FM-2R5SLN DC24V
Product Description:
1 mA to 500 mA micro-load switching.
Switch to both AC and DC with no polarity.
Switch for a wide range of voltages; 19.2 to 264 VAC, 19.2 to 125 VDC.
Switch full- and half-wave rectifier AC loads.
Same sizes and terminal arrangements as OMRON Power Relay MY Series.
Operating indicator provided.
Switch MY Series (without bleeder resistor).
Superior surge absorption with a built-in varistor.
Optimum SSR to control minute load, valves, and solenoids.
Specifications:
Operate time | 5 ms max. |
Release time | 10 ms max. |
Output ON voltage drop | 3 V (RMS) max. |
Leakage current | 0.1 mA max. (at 200 VAC) |
Insulation resistance | 100 MΩ min. (at 500 VDC) |
Dielectric strength | 1,500 VAC, 50/60 Hz for 1 min |
Vibration resistance | 10 to 55 to 10 Hz, 0.75-mm single amplitude |
Shock resistance | 1,000 m/s2 |
Ambient temperature | Operating: -30°C to 80°C (with no icing or condensation) |
Storage: -30°C to 100°C (with no icing or condensation) | |
Ambient humidity | Operating: 45% to 85% |
Weight | Approx. 50 g |
