Why buy from us?
We offer competitive prices and quality services!
Ask a Question About This Product
- Stock: In Stock

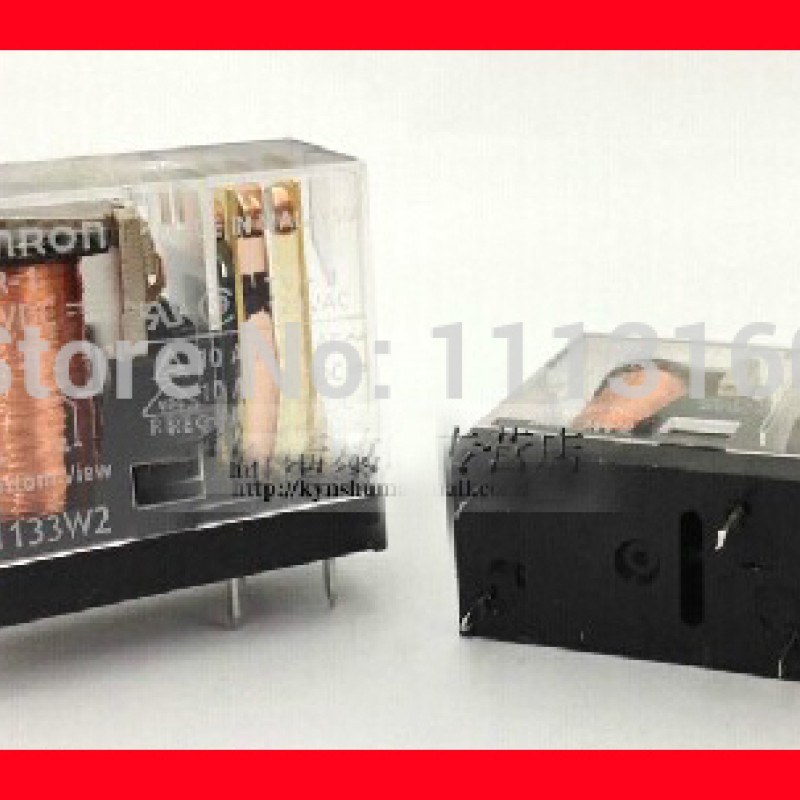

- Model: G2R-1-DC12V
- Weight: 0.02kg
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.
Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
Product Description?
Lockable test button models now available.
Built-in mechanical operation indicator.
Provided with nameplate.
AC type is equipped with a coil-disconnection self-diagnostic function (LED type).
High switching power (1-pole: 10 A).
Environment-friendly (Cd, Pb free).
Wide range of Sockets also available.
Specifications:
Rated voltage | Rated current* | Coil | Coil inductance (H) | Must | Must | Max. | Power | ||||||
50 Hz | 60 Hz | Armature | Armature | % of rated voltage | |||||||||
AC | 24 V | 43.5 mA | 37.4 mA | 253 Ω | 0.81 | 1.55 | 80% max. | 30% max. | 110% | 0.9 VA at 60 Hz | |||
110 V | 9.5 mA | 8.2 mA | 5,566 Ω | 13.33 | 26.83 | ||||||||
120 V | 8.6 mA | 7.5 mA | 7,286 Ω | 16.13 | 32.46 | ||||||||
230 V | 4.4 mA | 3.8 mA | 27,172 Ω | 72.68 | 143.9 | ||||||||
240 V | 3.7 mA | 3.2 mA | 30,360 Ω | 90.58 | 182.34 | ||||||||
Rated voltage | Rated current* | Coil | Coil inductance (H) | Must | Must | Max. | Power | ||||||
Armature | Armature | % of rated voltage | |||||||||||
DC | 6 V | 87.0 mA | 69 Ω | 0.25 | 0.48 | 70% max. | 15% min. | 110% | 0.53 W | ||||
12 V | 43.2 mA | 278 Ω | 0.98 | 2.35 | |||||||||
24 V | 21.6 mA | 1,113 Ω | 3.6 | 8.25 | |||||||||
48 V | 11.4 mA | 4,220 Ω | 15.2 | 29.82 | |||||||||
*The rated current and coil resistance are measured at a coil temperature of 23°C with tolerances of ±10%.
Contact Ratings
Number of poles | 1 pole | 2 poles | ||
Load | Resistive load | Inductive load | Resistive load | Inductive load |
Rated load | 10 A at 250 VAC; | 7.5 A at 250 VAC; | 5 A at 250 VAC; | 2 A at 250 VAC; |
Rated carry current | 10 A | 5 A | ||
Max. switching voltage | 440 VAC, 125 VDC | 380 VAC, 125 VDC | ||
Max. switching current | 10 A | 5 A | ||
Max. switching power | 2,500 VA, 300 W | 1,875 VA, 150 W | 1,250 VA, 150 W | 500 VA, 90 W |
Failure rate (reference value) | 100 mA at 5 VDC | 10 mA at 5 VDC | ||
