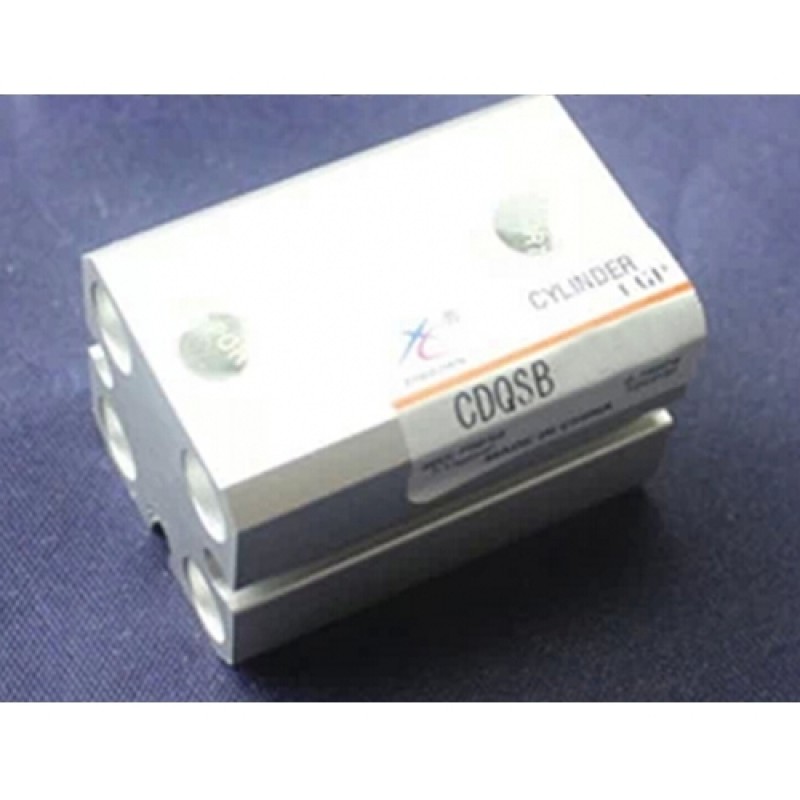

12mm Bore 15mm Stroke Compact Cylinder Double Acting with Rod End Female Thread without Auto Switch CQSB12-15D

12mm Bore 15mm Stroke Compact Cylinder Double Acting with Rod End Female Thread without Auto Switch CQSB12-15D
12mm Bore 15mm Stroke Compact Cylinder Double Acting with Rod End Female Thread without Auto Switch CQSB12-15D
12mm Bore 15mm Stroke Compact Cylinder Double Acting with Rod End Female Thread without Auto Switch CQSB12-15D
12mm Bore 15mm Stroke Compact Cylinder Double Acting with Rod End Female Thread without Auto Switch CQSB12-15D
12mm Bore 15mm Stroke Compact Cylinder Double Acting with Rod End Female Thread without Auto Switch CQSB12-15D
Compact Cylinder Double Acting CQSB Series Specifications:Bore size(mm)12162025FluidAirActionDouble ... Read More
0 reviews • Write a review
$7.00
Ex Tax: $7.00
  • Stock: In Stock
  • Model: CQSB12-15D
  • Weight: 0.50kg
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.

We accept many payments,include Paypal,Bank Transfer etc
12mm Bore 10mm Stroke Compact Cylinder Double Acting with Rod End Female Thread Auto Switch/Build-in Magnet CDQ2B12-10D
Quickview
12mm Bore 10mm Stroke Compact Cylinder Double Acting with Rod End Female Thread Auto Switch/Build-in Magnet CDQ2B12-10D
$7.00
Ex Tax:$7.00
Add to Cart Add to Wish List Compare this Product
12mm Bore 10mm Stroke Compact Cylinder Double Acting with Rod End Female Thread without Auto Switch CQ2B12-10D
Quickview
12mm Bore 10mm Stroke Compact Cylinder Double Acting with Rod End Female Thread without Auto Switch CQ2B12-10D
$5.00
Ex Tax:$5.00
Add to Cart Add to Wish List Compare this Product
12mm Bore 10mm Stroke Compact Cylinder Double Acting with Rod End Female Thread without Auto Switch CQSB12-10D
Quickview
12mm Bore 10mm Stroke Compact Cylinder Double Acting with Rod End Female Thread without Auto Switch CQSB12-10D
$7.00
Ex Tax:$7.00
Add to Cart Add to Wish List Compare this Product
12mm Bore 10mm Stroke Compact Cylinder Double Acting with Rod End Male Thread Auto Switch/Build-in Magnet CDQ2B12-10DM
Quickview
12mm Bore 10mm Stroke Compact Cylinder Double Acting with Rod End Male Thread Auto Switch/Build-in Magnet CDQ2B12-10DM
$7.00
Ex Tax:$7.00
Add to Cart Add to Wish List Compare this Product
12mm Bore 10mm Stroke Compact Cylinder Double Acting with Rod End Male Thread without Auto Switch CQ2B12-10DM
Quickview
12mm Bore 10mm Stroke Compact Cylinder Double Acting with Rod End Male Thread without Auto Switch CQ2B12-10DM
$5.00
Ex Tax:$5.00
Add to Cart Add to Wish List Compare this Product
12mm Bore 15mm Stroke Compact Cylinder Double Acting with Rod End Female Thread Auto Switch/Build-in Magnet CDQ2B12-15D
Quickview
12mm Bore 15mm Stroke Compact Cylinder Double Acting with Rod End Female Thread Auto Switch/Build-in Magnet CDQ2B12-15D
$7.00
Ex Tax:$7.00
Add to Cart Add to Wish List Compare this Product
12mm Bore 15mm Stroke Compact Cylinder Double Acting with Rod End Female Thread without Auto Switch CQ2B12-15D
Quickview
12mm Bore 15mm Stroke Compact Cylinder Double Acting with Rod End Female Thread without Auto Switch CQ2B12-15D
$5.00
Ex Tax:$5.00
Add to Cart Add to Wish List Compare this Product
12mm Bore 15mm Stroke Compact Cylinder Double Acting with Rod End Male Thread Auto Switch/Build-in Magnet CDQ2B12-15DM
Quickview
12mm Bore 15mm Stroke Compact Cylinder Double Acting with Rod End Male Thread Auto Switch/Build-in Magnet CDQ2B12-15DM
$7.00
Ex Tax:$7.00
Add to Cart Add to Wish List Compare this Product
Tags: CQSB12-15D

Compact Cylinder Double Acting CQSB Series



Specifications:

Bore size(mm)

12

16

20

25

Fluid

Air

Action

Double acting, Single acting: Spring return/Spring extend

Proof pressure

1.5 MPa(15.3 kgf/cm2)

Maximum operating pressure

1.0 MPa(10.2 kgf/cm2)

Ambient and fluid temperature

-10~+60 degree

Rod end thread

Female thread(standard), male thread(optional)

Cushion

None

Stroke length tolerance

+1.0mm

0

Lubrication

Not required (Non-lube)

Installation

Through hole, both ends female threads(share)

Pipe size

M5*0.8

Travel switch/Magnet switch selection:

Bore size(mm)

Standard stroke

Magnet switch

Double acting

Single acting

DIN

12

5, 10, 15, 20, 25, 30

5, 10

D-A90L  D-A93L

D-A96L  D-F9NL

D-F9BL

16

20

5, 10, 15, 20, 25, 30, 35, 40, 45, 50

5, 10

25

Dimensions:





Double acting/Single acting common dimension:

Bore size(mm)

12

16

20

25

Basic type

C

6

8

7

12

D

6

8

10

12

E

25

29

36

40

H

M3*0.5

M4*0.7

M5*0.8

M6*1.0

I

32

38

47

52

K

5

6

8

10

M

15.5

20

25.5

28

N

3.5

3.5

5.4

5.4

OA

M4*0.7

M4*0.7

M6*1.0

M6*1.0

OB

6.5

6.5

9

9

RA

7

7

10

10

RB

4

4

7

7

T

0.5

0.5

1

1

Double acting(ST=Stroke):

Bore size(mm)

12

16

20

25

Stroke range(mm)

5~30

5~30

5~50

5~50

Basic type

A

20.5+st

20.5+st

24+st

27.5+st

B

17+st

17+st

19.5+st

22.5+st

F

5

5

5.5

5.5

L

3.5

3.5

4.5

5

Q

7.5

7.5

9

11

Build-in magnet

A

25.5+st

25.5+st

34+st

37.5+st

B

22+st

22+st

29.5+st

32.5+st

Single acting: Spring return

Bore size(mm)

12

16

20

25

Stroke range(mm)

5, 10

Basic type

A

5”

25.5

25.5

29

32.5

10”

30.5

30.5

34

37.5

B

5”

22

22

24.5

27.5

10”

27

27

29.5

32.5

F

5

5

5.5

5.5

L

3.5

3.5

4.5

5

Build-in magnet

A

5”

30.5

30.5

39

42.5

10”

35.5

35.5

44

47.5

B

5”

27

27

34.5

37.5

10”

32

32

39.5

42.5

Single acting: Spring extend

Bore size(mm)

12

16

20

25

Stroke range(mm)

5, 10

Basic type

A

5”

30.5

30.5

34

37.5

10”

40.5

40.5

39

45.5

B

5”

22

22

24.5

27.5

10”

27

27

29.5

32.5

L

5”

8.5

8.5

9.5

10

10”

13.5

13.5

14.5

15

Q

7.5

7.5

9

11

Build-in magnet

A

5”

35.5

35.5

44

47.5

10”

45.5

45.5

49

52.5

B

5”

27

27

34.5

37.5

10”

32

32

39.5

45.2
