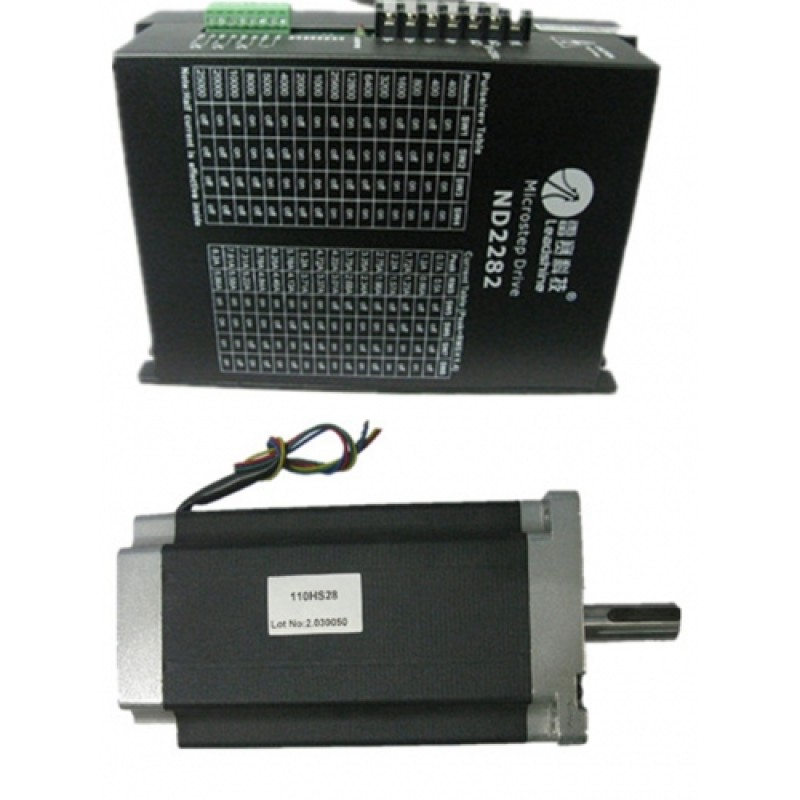

Leadshine NEMA42 110mm 3965oz-in 28N.M 90-220VAC 2phase Stepper motor Drive kits 110HS28+ND2282

Leadshine NEMA42 110mm 3965oz-in 28N.M 90-220VAC 2phase Stepper motor Drive kits 110HS28+ND2282
Leadshine NEMA42 110mm 3965oz-in 28N.M 90-220VAC 2phase Stepper motor Drive kits 110HS28+ND2282
Leadshine NEMA42 110mm 3965oz-in 28N.M 90-220VAC 2phase Stepper motor Drive kits 110HS28+ND2282
Leadshine NEMA42 110mm 3965oz-in 28N.M 90-220VAC 2phase Stepper motor Drive kits 110HS28+ND2282
Leadshine NEMA42 110mm 3965oz-in 28N.M 90-220VAC 2phase Stepper motor Drive kits 110HS28+ND2282
Leadshine NEMA42 110mm 3965oz-in 28N.M 90-220VAC 2phase Stepper motor Drive kits 110HS28+ND2282110... Read More
$363.00
Ex Tax: $363.00
  • Stock: In Stock
  • Model: NEMA42
  • Weight: 14.50kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: NEMA42

Leadshine NEMA42 110mm 3965oz-in 28N.M 90-220VAC 2phase Stepper motor Drive kits 110HS28+ND2282

110HS28+ND2282

Stepper Motor 110HS28

General Specifications

Step Angle Accuracy

+5%(full step, no load)

Temperature Rise

80°CMax

Ambient Temperature

-10°C -- +50°C

Insulation Resistance

100MΩmin.500VDC

Dielectric Strength

500VAC for one minute

Shaft Radial Play

0.06 Max.(450g-load)

Shaft Axial Play

0.08 max.(450g-load)

Electric

Model No.

110HS28

Step Angle

1.8°

Phase

2 Phase

Holding Torque

28N.M

3965 oz-in

NEME Size

NEME 42

Motor frame size

Frame 110

Current /phase

6.5A

# of leads

4

Motor Weight

11.7Kg

Drive ND2282

ND2282 General Introduction

ND2282, newest produced by Leadshine Company, is a high microstepping drive with high-precision current technical design. It is quit a suitable adapter to all kinds of brand of 86-110 two phase mixed motor. Because of the advanced anti-voice controlling way on the drive, the vibration noise is vastly decreased when motor operates, which makes more stable and close to the servo motor. Compared to most microsteeping drives on the market, Leadshine stepping drive and motor’s calorific power have a degrease from 15% to 30%.

Electrical Specifications


Phase

Series

Models

Current(A)

Voltage (V)

Microstepping

Motor adapter

Weight(kg)

External size (mm)

Controlling signal

Two phase

ND

ND2282

0.7-8.2

 70-220VAC

--

110,130

--

--

Differential signal

Applications

Suitable for big and mid-size automation equipments, such as, engraving machine, labeller, cutting machine, laser typesetter, graph plotter and handle device etc. It has a very good application effect on low-vibration, little-noise and high precision devices, which are user’s wanted.

110HS28 Dimension



ND2282 Dimension



Typical Connection
