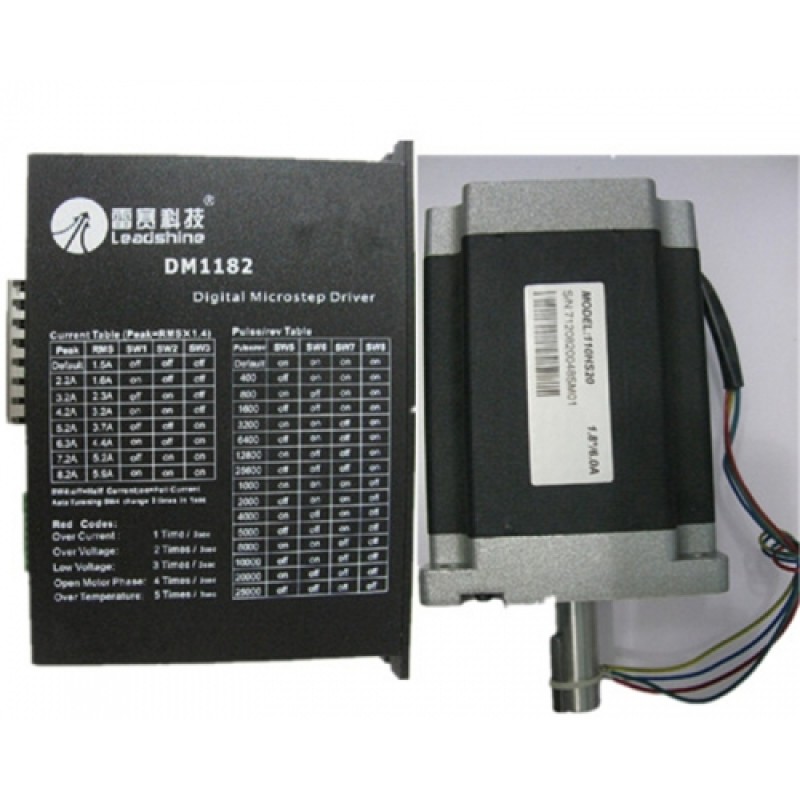

Leadshine NEMA42 110mm 2832oz-in 20N.M 60-130VAC 2phase Stepper motor Drive kits 110HS20+DM1182

Leadshine NEMA42 110mm 2832oz-in 20N.M 60-130VAC 2phase Stepper motor Drive kits 110HS20+DM1182
Leadshine NEMA42 110mm 2832oz-in 20N.M 60-130VAC 2phase Stepper motor Drive kits 110HS20+DM1182
Leadshine NEMA42 110mm 2832oz-in 20N.M 60-130VAC 2phase Stepper motor Drive kits 110HS20+DM1182
Leadshine NEMA42 110mm 2832oz-in 20N.M 60-130VAC 2phase Stepper motor Drive kits 110HS20+DM1182
Leadshine NEMA42 110mm 2832oz-in 20N.M 60-130VAC 2phase Stepper motor Drive kits 110HS20+DM1182
Leadshine NEMA42 110mm 2832oz-in 20N.M 60-130VAC 2phase Stepper motor Drive kits 110HS20+DM1182110... Read More
$350.00
Ex Tax: $350.00
  • Stock: In Stock
  • Model: NEMA42
  • Weight: 11.00kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: NEMA42

Leadshine NEMA42 110mm 2832oz-in 20N.M 60-130VAC 2phase Stepper motor Drive kits 110HS20+DM1182

110HS20+DM1182

Stepper Motor 110HS20

General Specifications

Step Angle Accuracy

+5%(full step, no load)

Temperature Rise

80°CMax

Ambient Temperature

-10°C -- +50°C

Insulation Resistance

100MΩmin.500VDC

Dielectric Strength

500VAC for one minute

Shaft Radial Play

0.06 Max.(450g-load)

Shaft Axial Play

0.08 max.(450g-load)

Electric

Model No.

110HS20

Step Angle

1.8°

Phase

2 Phase

Holding Torque

20N.M

2832 oz-in

NEME Size

NEME 42

Motor frame size

Frame 110

Current /phase

6A

# of leads

4

Motor Weight

8.4Kg

Drive DM1182

DM Series Classis Analog Stepper Drives

Highlights

Step & direction or CW/CCW control

Advanced DSP-based current control algorithm

Low-middle speed anti-resonance

Extra low noise; extra low motor heating; smooth motor movement

Easy setup via DIP switches for microstepping resolution and output current

Free software for fine tuning, output current, resolutions...

Automatic stepper motor identification and self configuration

Electrical Specifications


Phase

Series

Models

Current(A)

Voltage (V)

Microstepping

Motor adapter

Weight(kg)

External size (mm)

Controlling signal

Two phase

DM

DM1182

2.2-8.2

AC(60-130)

2-128,5-125

86,110

1.7

200*145*83

Differential signal

DM Series Applications

Suitable for applications require high performance, extra low motor noise, extra smooth movement stepper systems, such as CNC routers, small and medium size milling or engraving machines, laser machines, lab automation instruments, textile equipment, medical devices, assembly machines, pick-and-place devices, etc.

110HS20 Dimension




DM1182 Dimension





 Typical Connection
