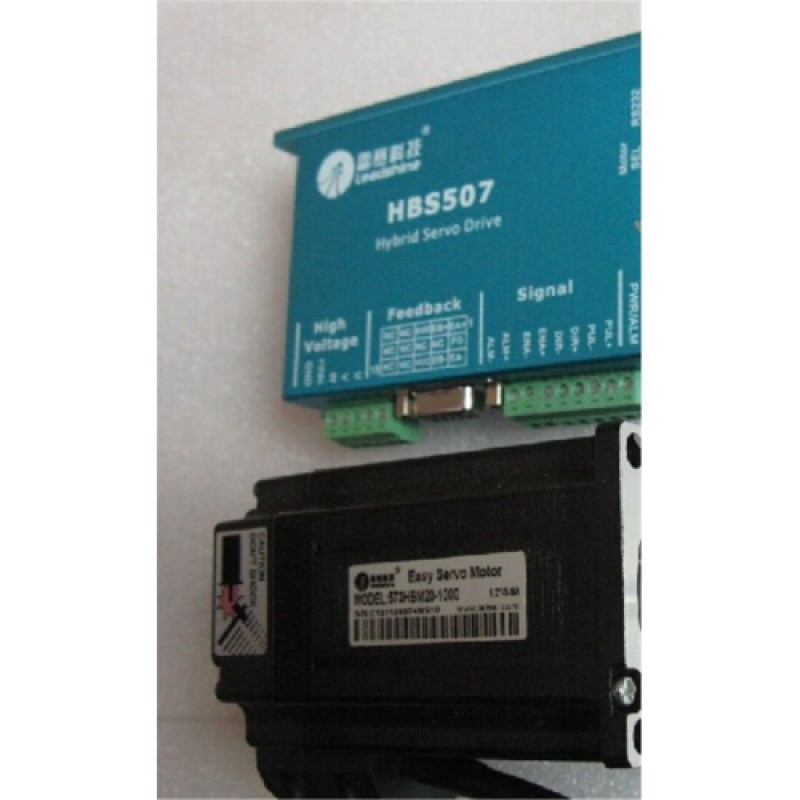

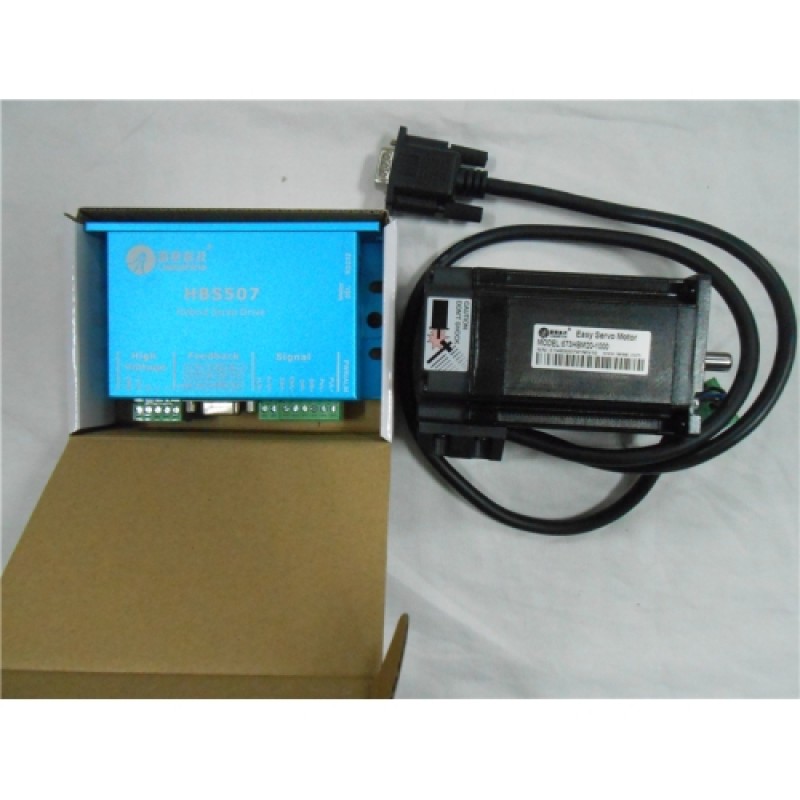

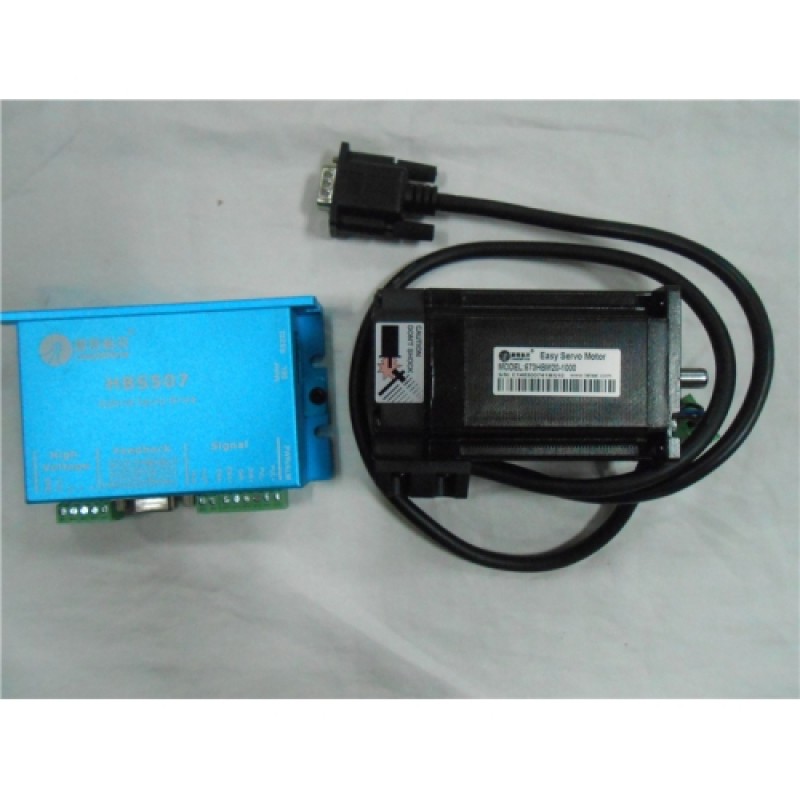

Leadshine 3 phase Servo Motor Drive Kit 1.2 Degree 5.8A 2NM NEMA23 57mm 573HBM20-1000+HBS507

Leadshine 3 phase Servo Motor Drive Kit 1.2 Degree 5.8A 2NM NEMA23 57mm 573HBM20-1000+HBS507
Leadshine 3 phase Servo Motor Drive Kit 1.2 Degree 5.8A 2NM NEMA23 57mm 573HBM20-1000+HBS507
Leadshine 3 phase Servo Motor Drive Kit 1.2 Degree 5.8A 2NM NEMA23 57mm 573HBM20-1000+HBS507
Leadshine 3 phase Servo Motor Drive Kit 1.2 Degree 5.8A 2NM NEMA23 57mm 573HBM20-1000+HBS507
Leadshine 3 phase Servo Motor Drive Kit 1.2 Degree 5.8A 2NM NEMA23 57mm 573HBM20-1000+HBS507
Leadshine 3 phase Servo Motor Drive Kit 1.2 Degree 5.8A 2NM NEMA23 57mm 573HBM20-1000+HBS507
Leadshine 3 phase Servo Motor Drive Kit 1.2 Degree 5.8A 2NM NEMA23 57mm 573HBM20-1000+HBS507
Leadshine 3 phase Servo Motor Drive Kit 1.2 Degree 5.8A 2NM NEMA23 57mm 573HBM20-1000+HBS507
Leadshine 3 phase Servo Motor Drive Kit 1.2 Degree 5.8A 2NM NEMA23 57mm 573HBM20-1000+HBS507
Leadshine 3 phase Servo Motor Drive Kit 1.2 Degree 5.8A 2NM NEMA23 57mm 573HBM20-1000+HBS507
Leadshine 3 phase Servo Motor Drive Kit 1.2 Degree 5.8A 2NM NEMA23 57mm 573HBM20-1000+HBS507
 Leadshine NEMA23 57mm 286oz-in 2N.M 18-48VDC 3phase Servo motor DSP Closed-Loop Drive kits 573HBM... Read More
$154.00
Ex Tax: $154.00
  • Stock: In Stock
  • Model: NEMA23
  • Weight: 2.00kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: NEMA23
 Leadshine NEMA23 57mm 286oz-in 2N.M 18-48VDC 3phase Servo motor DSP Closed-Loop Drive kits 573HBM20-1000+HBS507





The HBS series offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. The system includes a 3-phase stepper motor combined with a fully digital, high performance drive and an internal encoder which is used to close the position, velocity and current loops in real time, just like servo systems. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system.



Applications



The HBS series offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. Its great feature of fast response and no hunting make it ideal for applications such as bonding and vision systems in which rapid motions with a short distance are required and hunting would be a problem. And it is ideal for applications where the equipment uses a belt-drive mechanism or otherwise has low rigidity and you don't want it to vibrate when stopping.


Model

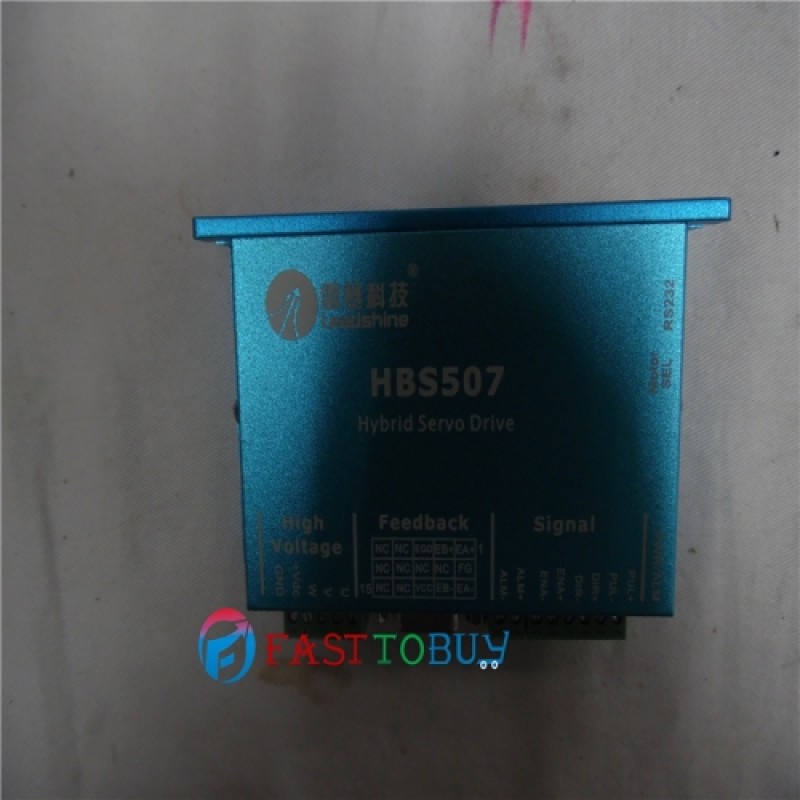

HBS507

Voltage

18-48VDC

Rated Current

7A

Control Way

32 bit DSP Vector Closed Loop

Microstepping

200-51200

Weight

280g

Phase

3 Phase


Hybrid Servo Motor 573HBM20-1000



exotherm

80K

Ambient operation

Tem: -10+500C; Humidity: 80% MAX

Insulation Level

B

Insulation Resistance

100M ohm MIN 500VDC

voltage withstand

100VAC 1min

Shaft Radial Play

0.025 mm MAX (over load 5N)

Shaft Axial Play

0.075mm MAX(over load 10N)



Technical Specification


Motor

Holding Torque

Rated Current (A)

Motor Length (mm)

moment of inertia of  rotor

Weight (kg)

573HBM20-1000

2 N.M

5.8A

97mm

0.5kg.cm2

1.4kg



HBS507 Dimension







573HBM20-1000 Dimension
