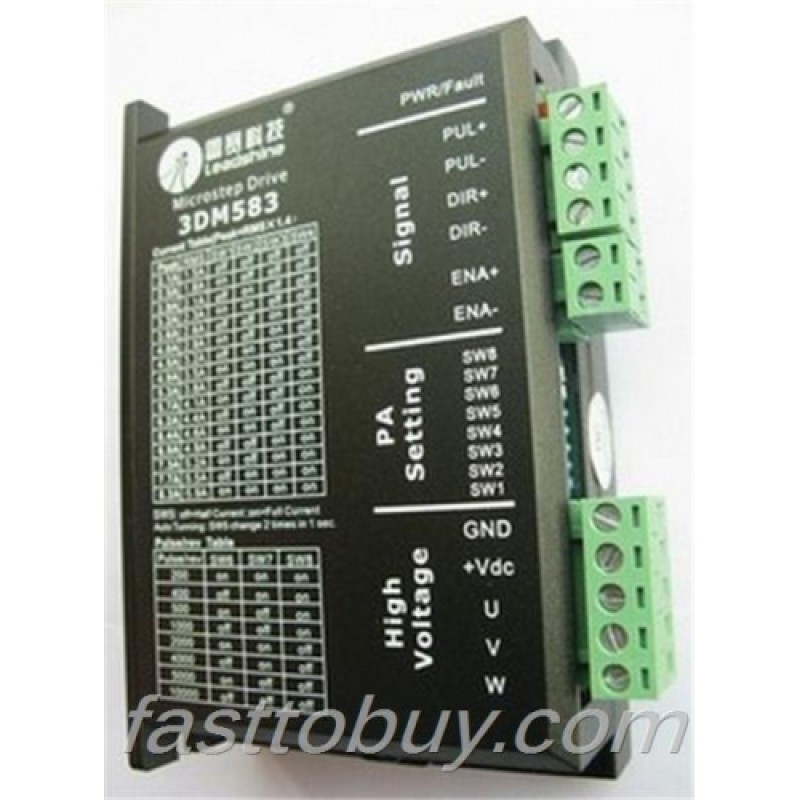

Leadshine 3-phase DSP Based Digital Stepper Drive DM Series 3DM583 DC18-50V 2.1-8.3A New

PLCAGE: Leadshine 3-phase DSP Based Digital Stepper Drive DM Series 3DM583 DC18-50V 2.1-8.3A New

Introductions:

The 3DM583 is a versatility fully digital stepping driver based on a DSP with advanced control algorithm. The 3DM683 is the next generation of digital stepping motor controls. It brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability. Motor self-test and parameter auto-setup technology offers optimum responses with different motors and easy-to-use. The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drivers in the markets. Its unique features make the 3DM583 an ideal solution for applications that require low-speed smoothness.

Compared to the 3ND583, broader input voltage and output current ranges make the 3DM583 can drive much more motors than the 3ND583.

Features:

*Anti-Resonance, provides optimum torque and nulls mid-range instability

*Motor self-test and parameter auto-setup technology, offers optimum responses with different motors

*Multi-Stepping allows a low resolution step input to produce a higher microstep output for smooth system performance

*Microstep resolutions programmable, from 200 to 102,400 steps/rev

*Supply voltage up to +50 VDC

*Output current programmable, from 2.1A to 8.3A

*Pulse input frequency up to 200 KHz

*TTL compatible and optically isolated input

*Automatic idle-current reduction

*Suitable for 3/6 leads Three-phase motors

*Support PUL/DIR and CW/CCW modes

*Over-voltage, over-current, phase-error protections

Specifications:

Applications:

Suitable for a wide range of stepping motors, from NEMA frame size 17 to 34. It can be used in various kinds of machines, such as laser cutters, laser markers, high precision X-Y tables, labeling machines, and so on. Its unique features make the 3DM683 an ideal solution for applications that require both low-speed smoothness and high speed performances.
