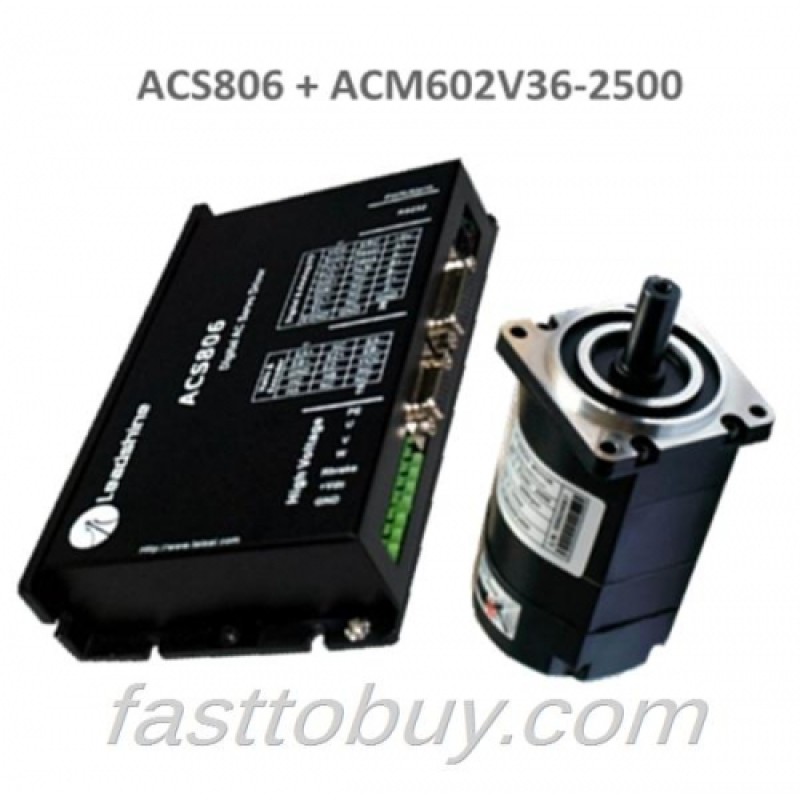

Leadshine 200W brushless AC servo set (drive ACS806 + motor ACM602V36-2500) New

Leadshine 200W brushless AC servo set (drive ACS806 + motor ACM602V36-2500) New
Leadshine 200W brushless AC servo set (drive ACS806 + motor ACM602V36-2500) New
Leadshine 200W brushless AC servo set (drive ACS806 + motor ACM602V36-2500) New
Leadshine 200W brushless AC servo set (drive ACS806 + motor ACM602V36-2500) New
Leadshine 200W brushless AC servo set (drive ACS806 + motor ACM602V36-2500) New
Leadshine 200W brushless AC servo set (drive ACS806 + motor ACM602V36-2500) NewPLCAGE: Leadshine Bru... Read More
0 reviews • Write a review
$427.00
Ex Tax: $427.00
  • Stock: In Stock
  • Model: ACS806
  • Weight: 1.40kg
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.

We accept many payments,include Paypal,Bank Transfer etc
0.318NM 2500line Flange 40mm NEMA16 220V 100W 3000R/Min 1.27A AC Servo Motor+Drive+3M Cable
Quickview
0.318NM 2500line Flange 40mm NEMA16 220V 100W 3000R/Min 1.27A AC Servo Motor+Drive+3M Cable
$376.00
Ex Tax:$376.00
Add to Cart Add to Wish List Compare this Product
0.318NM 2500line Flange 40mm NEMA16 220V 100W 3000R/Min Brake 1.27A AC Servo Motor+Drive+3M Cable
Quickview
0.318NM 2500line Flange 40mm NEMA16 220V 100W 3000R/Min Brake 1.27A AC Servo Motor+Drive+3M Cable
$504.00
Ex Tax:$504.00
Add to Cart Add to Wish List Compare this Product
0.64NM 2500line Flange 60mm NEMA24 220V 200W 3000R/Min 1.5A AC Servo Motor+Drive+3M Cable
Quickview
0.64NM 2500line Flange 60mm NEMA24 220V 200W 3000R/Min 1.5A AC Servo Motor+Drive+3M Cable
$376.00
Ex Tax:$376.00
Add to Cart Add to Wish List Compare this Product
1.27NM 2500line Flange 60mm NEMA24 220V 400W 3000R/Min 3A AC Servo Motor+Drive+3M Cable
Quickview
1.27NM 2500line Flange 60mm NEMA24 220V 400W 3000R/Min 3A AC Servo Motor+Drive+3M Cable
$387.00
Ex Tax:$387.00
Add to Cart Add to Wish List Compare this Product
1.27NM 2500line Flange 60mm NEMA24 220V 400W 3000R/Min Brake 3A AC Servo Motor+Drive+3M Cable
Quickview
1.27NM 2500line Flange 60mm NEMA24 220V 400W 3000R/Min Brake 3A AC Servo Motor+Drive+3M Cable
$516.00
Ex Tax:$516.00
Add to Cart Add to Wish List Compare this Product
100/200V 50W Servo System (Motor + Drive) MSMD5AZG1U + MADHT1505 New
Quickview
100/200V 50W Servo System (Motor + Drive) MSMD5AZG1U + MADHT1505 New
$562.00
Ex Tax:$562.00
Add to Cart Add to Wish List Compare this Product
100/200V 50W Servo System (Motor + Drive) MSMD5AZG1U + MADHT1505CA1 New
Quickview
100/200V 50W Servo System (Motor + Drive) MSMD5AZG1U + MADHT1505CA1 New
$563.00
Ex Tax:$563.00
Add to Cart Add to Wish List Compare this Product
Tags: ACS806
Leadshine 200W brushless AC servo set (drive ACS806 + motor ACM602V36-2500) New

PLCAGE: Leadshine Brushless Servo Drive ACS Series ACS806 DC18-80V Cont. 6A Peak 18A 400W for 50-400W Servo Motor New

Features:

*Advance DSP current control technology

*Step & direction, or CW/CCW control

*High precision; smooth and quiet motor movement

*Input voltage: 18 - 80 VDC

*Continuous current: 6 A

*Peak current: 18A

*Capable of driving 20 - 400 W brushless servo motors

*Electronic gear rate from 1/255 to 255

*Built-in motion profile for testing with trapezoidal velocity profile

*Opto-isolated

*Encoder output with signals A, B, and Z (indexing)

*Limit switch input

*Fault, and in position (at preset target position) outputs

*Small size, surface-mount technology

Specifications:

Parameters

Min

Typical

Max

Unit

Peak output current

0

-

18

A

Continue output current

0

-

6

A

Supply voltage

+18

-

+80

VDC

Logic signal current

7

10

16

mA

Pulse input frequency

0

-

600

kHz

Isolation resistance

500





MΩ

Current provided to encoder

-

-

100

mA

Matching motors:

Power

Models

100W

ACM601V36

200W

ACM602V36, ACM602V36A, ACM602V60, ACM602V60A

400W

ACM604, ACM604V60

Applications:

Suitable for large and medium automation machines and equipments, such as inkjet printers, engraving machines, electronic manufacturing equipments, special NC machines, pick and place devices, packing devices, and so on. Particularly adapt to the applications require high speed, high precision, and low motor noise.



PLCAGE: Leadshine Brushless Servo Motor ACM Series ACM602V36-2500 36V 200W 0.64N.M 3000rpm 60mm New

Features:

*Brushless construction, reliable industrial quality

*High torque density, and optimized for quick response

*60mm frame size, 36 VDC rated voltage, 200W rated power

*10000 CPR (2500-line) increamental encoder with A, B, indexing signals

*0.64 N-m (90 oz-in) rated torque / 1.91 N-m (270 oz-in) peak

*3000 RPM rated speed / 4000 RPM peak

*Standard cabling options for direct connection to the ACS series servo drives

Specifications:

Model

ACM601V36

ACM602V36(A)*

ACM602V60(A)*

ACM604V60

ACM602V36-30

ACM604V60-30

Rated Voltage (V)

36

36

60

60

36

36

Rated Power (W)

100

200

200

400

200

400

Rated Torque (N.M)

0.318

0.64

0.64

1.27

0.64

1.27

Peak Torque (N.M)

0.95

1.91

1.91

3.82

1.92

3.81

Rated Speed (RPM)

3000

3000

3000

3000

3000

3000

Peak Speed (RPM)

4000

4000

4000

4000

4000

4000

Rated Current (A)

4

7.6

4.7

8.4

7.6

8.4

Peak Current (A)

11

22

14

25

22

25

Torque Const. (N.M/A)

0.0866

0.0918

0.15

0.161

0.084

0.151

Back EMF Const. (V/RPM)

3.03 x 10-3

3.213 x 10-3

5.24 x 10-3

5.54 x 10-3

3.2 x 10-3

5.5 x 10-3

Resistance (ohm)

0.38

0.16

0.38

0.19

0.39

0.28

Inductance (mH)

0.91

0.41

1.07

0.59

0.33

0.34

Inertia (kgm2 x 10-4 )

0.1032

0.176(0.178)

0.176(0.178)

0.3549

0.32

0.46

Allowable radial load (N)

78.6

245

245

245

245

245

Allowable axial load (N)

38.2

68

68

74

68

74

Flange Size (mm)

60

60

60

60

60

60

Mounting Diameter (mm)

70

70

70

70

70

70

Shaft Diamter (mm)

8

11(14)

11(14)

14

11

14

Motor Length (mm)

86.7

100.7

100.7

127.8

123

143

Pole Pairs (-)

4

4

4

4

4

4

Encoder Res. (counts/rev.)

2500**

2500**

2500**

2500**

1000**

1000**

Mass (Kg)

0.701

0.966

0.984

1.463

0.95

1.48

Ambient Temperature (°C)

0~40

0~40

0~40

0~40

0~40

0~40

* The ACM602V36(A) means two models. The ACM602V36 and ACM602V36A which is different from the former in inertia and shaft diameter.

** Standard. Other configurations available.

Matching drives:

Model

Matching Drives

100 W AC Servo Motors

ACS806

200 W AC Servo Motors

ACS806

400 W AC Servo Motors

ACS806, EL5-D400
