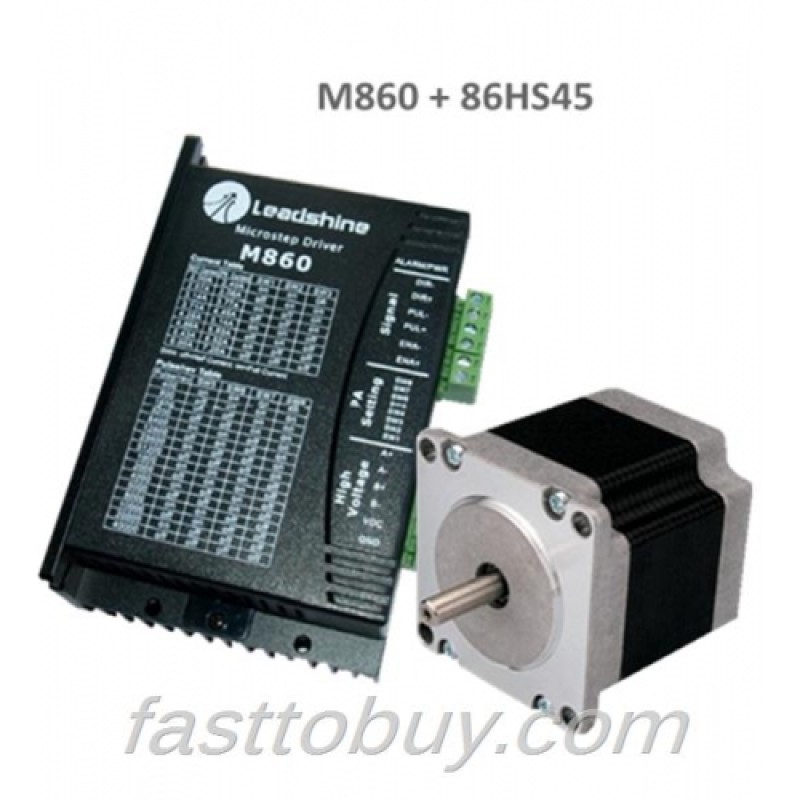

Leadshine 2-phase Stepper Set (Drive + Motor) M860 + 86HS45 4.5N.m New

Leadshine 2-phase Stepper Set (Drive + Motor) M860 + 86HS45 4.5N.m New
Leadshine 2-phase Stepper Set (Drive + Motor) M860 + 86HS45 4.5N.m New
Leadshine 2-phase Stepper Set (Drive + Motor) M860 + 86HS45 4.5N.m New
Leadshine 2-phase Stepper Set (Drive + Motor) M860 + 86HS45 4.5N.m New
Leadshine 2-phase Stepper Set (Drive + Motor) M860 + 86HS45 4.5N.m New
Leadshine 2-phase Stepper Set (Drive + Motor) M860 + 86HS45 4.5N.m NewPLCAGE: Leadshine 2-phase Step... Read More
0 reviews • Write a review
$152.00
Ex Tax: $152.00
  • Stock: In Stock
  • Model: 86HS45
  • Weight: 5.00kg
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.

We accept many payments,include Paypal,Bank Transfer etc
0.318NM 2500line Flange 40mm NEMA16 220V 100W 3000R/Min 1.27A AC Servo Motor+Drive+3M Cable
Quickview
0.318NM 2500line Flange 40mm NEMA16 220V 100W 3000R/Min 1.27A AC Servo Motor+Drive+3M Cable
$376.00
Ex Tax:$376.00
Add to Cart Add to Wish List Compare this Product
0.318NM 2500line Flange 40mm NEMA16 220V 100W 3000R/Min Brake 1.27A AC Servo Motor+Drive+3M Cable
Quickview
0.318NM 2500line Flange 40mm NEMA16 220V 100W 3000R/Min Brake 1.27A AC Servo Motor+Drive+3M Cable
$504.00
Ex Tax:$504.00
Add to Cart Add to Wish List Compare this Product
0.64NM 2500line Flange 60mm NEMA24 220V 200W 3000R/Min 1.5A AC Servo Motor+Drive+3M Cable
Quickview
0.64NM 2500line Flange 60mm NEMA24 220V 200W 3000R/Min 1.5A AC Servo Motor+Drive+3M Cable
$376.00
Ex Tax:$376.00
Add to Cart Add to Wish List Compare this Product
1.27NM 2500line Flange 60mm NEMA24 220V 400W 3000R/Min 3A AC Servo Motor+Drive+3M Cable
Quickview
1.27NM 2500line Flange 60mm NEMA24 220V 400W 3000R/Min 3A AC Servo Motor+Drive+3M Cable
$387.00
Ex Tax:$387.00
Add to Cart Add to Wish List Compare this Product
1.27NM 2500line Flange 60mm NEMA24 220V 400W 3000R/Min Brake 3A AC Servo Motor+Drive+3M Cable
Quickview
1.27NM 2500line Flange 60mm NEMA24 220V 400W 3000R/Min Brake 3A AC Servo Motor+Drive+3M Cable
$516.00
Ex Tax:$516.00
Add to Cart Add to Wish List Compare this Product
100/200V 50W Servo System (Motor + Drive) MSMD5AZG1U + MADHT1505 New
Quickview
100/200V 50W Servo System (Motor + Drive) MSMD5AZG1U + MADHT1505 New
$562.00
Ex Tax:$562.00
Add to Cart Add to Wish List Compare this Product
100/200V 50W Servo System (Motor + Drive) MSMD5AZG1U + MADHT1505CA1 New
Quickview
100/200V 50W Servo System (Motor + Drive) MSMD5AZG1U + MADHT1505CA1 New
$563.00
Ex Tax:$563.00
Add to Cart Add to Wish List Compare this Product
100/200V 50W Servo System (Motor + Drive) MSMD5AZG1U + MADHT1505E New
Quickview
100/200V 50W Servo System (Motor + Drive) MSMD5AZG1U + MADHT1505E New
$539.00
Ex Tax:$539.00
Add to Cart Add to Wish List Compare this Product
Tags: 86HS45
Leadshine 2-phase Stepper Set (Drive + Motor) M860 + 86HS45 4.5N.m New

PLCAGE: Leadshine 2-phase Stepper Set (Drive + Motor) M860 + 86HS45 4.5N.m New

M860



Features:

*Extremely cost-effective

*Good high speed performance

*Supply voltage up to +72VDC

*Output current up to 7.2A

*Self-adjustment technology

*Pure-sinusoidal current control technology

*Pulse input frequency up to 300 KHz

*TTL compatible and optically isolated input

*Automatic idle-current reduction

*16 selectable resolutions in decimal and binary, up to 51,200 steps/rev

*Suitable for 2-phase and 4-phase motors

*Support PUL/DIR and CW/CCW modes

*Short-voltage, over-voltage, over-current andshort-circuit protection

Specifications:

Parameters

M860

Min

Typical

Max

Unit

Output current

1.8

-

7.2 (5.1 RMS)

A

Supply voltage

+24

+68

+72

VDC

Logic signal current

7

10

16

mA

Pulse input frequency

0

-

300

kHz

Isolation resistance

500





MΩ

Applications:

Suitable for a wide range of stepping motors, from NEMA size 17 to 34. It can be used in various kinds of machines, such as X-Y tables, engraving machines, labeling machines, laser cutters, pick-place devices, and so on. Particularly adapt to the applications desired with low noise, low heating, high speed and high precision.



86HS45

Features:

*2-phase hybrid step motor

*High torque design

*Standard NEMA 34 dimensions

*Series or parallel and unipolar wiring

*Optimized for microstepping

Specifications:

General

Step Angle

1.8°

Step Angle Accuracy

+5%(full step, no load)

Temperature Rise

80°CMax

Ambient Temperature

-10°C -- +50°C

Insulation Resistance

100MΩmin.500VDC

Dielectric Strength

500VAC for one minute

Shaft Radial Play

0.06 Max.(450g-load)

Shaft Axial Play

0.08 max.(450g-load)

Number of Leads

8

Electric



Model Number

Connection

Holding Torque Oz-in (Nm)

Phase Current (Amps)

Phase Resistance (Ohm)

Phase Inductance (mH)

Rotor Inertia Oz-in-sec2 (g*cm2)



86HS45

Bipolar (Parallel)

637.2(4.5)

6.0

0.375±10%

3.4±20%

0.01988(1400)

Bipolar (Series)

637.2(4.5)

3.0

1.5±10%

13.6±20%

Unipolar

453.12(3.2)

4.2

0.75±10%

3.4±20%

Matching drives:

Model

Match drives

86HS35

EM705/EM806/DM870/DM1182

86HS45

86HS85

EM705/EM806/DM870/DM1182/ DM2282

Applications:

Suitable for all kinds of small automation equipment and instruments, such as: pneumatic marking machine, marking machine, cutting machine, laser marking machine, plotter, small engraving machine, CNC machine tools, handling equipment, etc. The efficiency is very high for the users who expect low vibration, little noise, high precision and high speed small equipments.

Other stepper sets available in PLCAGE:

M860 + 86HS35

Leadshine 2-phase Stepper Set (Drive + Motor) M860 + 86HS35 3.5N.m New

M860 + 86HS45

Leadshine 2-phase Stepper Set (Drive + Motor) M860 + 86HS45 4.5N.m New

M860 + 86HS85

Leadshine 2-phase Stepper Set (Drive + Motor) M860 + 86HS85 8.5N.m New

M860 + 86HS120

Leadshine 2-phase Stepper Set (Drive + Motor) M860 + 86HS120 12N.m New
