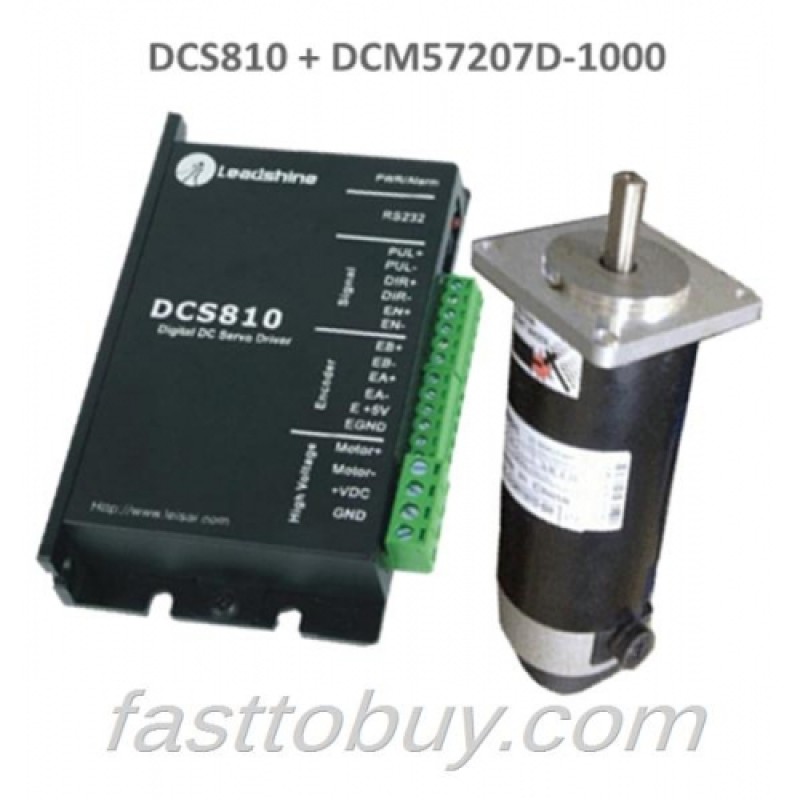

Leadshine 120W brushed DC servo set (drive DCS810 + motor DCM57207D-1000) New

Leadshine 120W brushed DC servo set (drive DCS810 + motor DCM57207D-1000) New
Leadshine 120W brushed DC servo set (drive DCS810 + motor DCM57207D-1000) New
Leadshine 120W brushed DC servo set (drive DCS810 + motor DCM57207D-1000) New
Leadshine 120W brushed DC servo set (drive DCS810 + motor DCM57207D-1000) New
Leadshine 120W brushed DC servo set (drive DCS810 + motor DCM57207D-1000) New
Leadshine 120W brushed DC servo set (drive DCS810 + motor DCM57207D-1000) NewPLCAGE: Leadshine Brush... Read More
0 reviews • Write a review
$327.00
Ex Tax: $327.00
  • Stock: In Stock
  • Model: DCS810
  • Weight: 1.55kg
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.

We accept many payments,include Paypal,Bank Transfer etc
0.318NM 2500line Flange 40mm NEMA16 220V 100W 3000R/Min 1.27A AC Servo Motor+Drive+3M Cable
Quickview
0.318NM 2500line Flange 40mm NEMA16 220V 100W 3000R/Min 1.27A AC Servo Motor+Drive+3M Cable
$376.00
Ex Tax:$376.00
Add to Cart Add to Wish List Compare this Product
0.318NM 2500line Flange 40mm NEMA16 220V 100W 3000R/Min Brake 1.27A AC Servo Motor+Drive+3M Cable
Quickview
0.318NM 2500line Flange 40mm NEMA16 220V 100W 3000R/Min Brake 1.27A AC Servo Motor+Drive+3M Cable
$504.00
Ex Tax:$504.00
Add to Cart Add to Wish List Compare this Product
0.64NM 2500line Flange 60mm NEMA24 220V 200W 3000R/Min 1.5A AC Servo Motor+Drive+3M Cable
Quickview
0.64NM 2500line Flange 60mm NEMA24 220V 200W 3000R/Min 1.5A AC Servo Motor+Drive+3M Cable
$376.00
Ex Tax:$376.00
Add to Cart Add to Wish List Compare this Product
1.27NM 2500line Flange 60mm NEMA24 220V 400W 3000R/Min 3A AC Servo Motor+Drive+3M Cable
Quickview
1.27NM 2500line Flange 60mm NEMA24 220V 400W 3000R/Min 3A AC Servo Motor+Drive+3M Cable
$387.00
Ex Tax:$387.00
Add to Cart Add to Wish List Compare this Product
1.27NM 2500line Flange 60mm NEMA24 220V 400W 3000R/Min Brake 3A AC Servo Motor+Drive+3M Cable
Quickview
1.27NM 2500line Flange 60mm NEMA24 220V 400W 3000R/Min Brake 3A AC Servo Motor+Drive+3M Cable
$516.00
Ex Tax:$516.00
Add to Cart Add to Wish List Compare this Product
100/200V 50W Servo System (Motor + Drive) MSMD5AZG1U + MADHT1505 New
Quickview
100/200V 50W Servo System (Motor + Drive) MSMD5AZG1U + MADHT1505 New
$562.00
Ex Tax:$562.00
Add to Cart Add to Wish List Compare this Product
100/200V 50W Servo System (Motor + Drive) MSMD5AZG1U + MADHT1505CA1 New
Quickview
100/200V 50W Servo System (Motor + Drive) MSMD5AZG1U + MADHT1505CA1 New
$563.00
Ex Tax:$563.00
Add to Cart Add to Wish List Compare this Product
100/200V 50W Servo System (Motor + Drive) MSMD5AZG1U + MADHT1505E New
Quickview
100/200V 50W Servo System (Motor + Drive) MSMD5AZG1U + MADHT1505E New
$539.00
Ex Tax:$539.00
Add to Cart Add to Wish List Compare this Product
Tags: DCS810
Leadshine 120W brushed DC servo set (drive DCS810 + motor DCM57207D-1000) New

PLCAGE: Leadshine Brushed DC Servo Motor DCM57207D-1000 30.3VDC 120W 2900 rpm Differential 1000-Line Encoder Flange Mounted New

Introductions:

Leadshine DCM50202A is a high quality 54mm DC brush servo motors with a 1,000-line differential-ended encoder. The motors are ideal for cost sensitive applications. Built with high quality materials, it moves very quietly and smoothly with high precision and very little motor heating. It has been widely implemented in many OEM applications.

Features:

*Reliable industrial quality

*High performance, Low cost

*Rated voltage:24 VDC, Rated power: 50W

*54mm frame size

*3500 RPM rated speed / 4600 RPM peak

*4000 CPR (1000-line) increamental encoder

Specifications:

Parameters

Symbol

Units

DCM50202A

DCM50205

DCM50207

Continuous Torque (Max)

TC

N.m

0.15

0.25

0.35

Peak Torque (Stall)

TPK

N.m

0.76

1.59

2.90

No-load Speed

SNL

rpm

4600±10%

4000±10%

3600±10%

Rated Speed

SR

rpm

3500

3400

2900

Rotor Inertia

JM

kg.m2

1.62 x 10-5

3.11 x 10-5

4.73 x 10-5

Winding Temperature

θMAX

°C

155 (Max)

155 (Max)

155 (Max)

Thermal Impedance

RTH

°C /watt

9.00

7.3

4.98

Weight (Plus Encoder)

WM

G

694

1182

1338

Length (Plus Encoder)

L1

mm

129±2

161±2

196±2

Rated Voltage

E

V

24

24

30.3

Rated Current

I

A

1.79

2.95

3.94

Torque Constant

KT

N.m/A

48 x 10-3

52 x 10-3

80 x 10-3

Resistance

RT

Ω

2.52

0.8

0.9

No-load Current

INL

A

0.45

0.5

0.45

Peak Current (Stall)

IP

A

13.9

21.6

32.6

Encoder Resolution

-

steps/rev.

500/1000

500/1000

500/1000

Applications:

The DCM5xxxx series brushed DC servo motors are widely used in inkjet printers, medical equipment, measuring devices, engraving machines, electronic packing equipment and so on. Particularly suited to the applications requiring minimal vibration, super-low noise, high precision and high speed.

Other hot items of this Leadshine Brushed servo motors for above applications:

DCM50202A-1000

Leadshine Brushed DC Servo Motor DCM50202A-1000 24VDC 50W 3500 rpm Single-ended Encoder Screw Mounted New

DCM50205-1000

Leadshine Brushed DC Servo Motor DCM50205-1000 24VDC 80W 3400 rpm Single-ended Encoder Screw Mounted New

DCM50207-1000

Leadshine Brushed DC Servo Motor DCM50207-1000 30.3VDC 120W 2900 rpm Single-ended Encoder Screw Mounted New

DCM57202-1000

Leadshine Brushed DC Servo Motor DCM57202-1000 24V 50W 3500 rpm Single-ended Encoder Flange Mounted New

DCM57205-1000

Leadshine Brushed DC Servo Motor DCM57205-1000 24VDC 80W 3400 rpm Single-ended Encoder Flange Mounted New

DCM57207-1000

Leadshine Brushed DC Servo Motor DCM57207-1000 30.3VDC 120W 2900 rpm Single-ended Encoder Flange Mounted New

DCM50202A-500

Leadshine Brushed DC Servo Motor DCM50202A-500 24VDC 50W 3500 rpm Single-ended Encoder Screw Mounted New

DCM50205-500

Leadshine Brushed DC Servo Motor DCM50205-500 24VDC 80W 3400 rpm Single-ended Encoder Screw Mounted New

DCM50207-500

Leadshine Brushed DC Servo Motor DCM50207-500 30.3VDC 120W 2900 rpm Single-ended Encoder Screw Mounted New

DCM57202-500

Leadshine Brushed DC Servo Motor DCM57202-500 24V 50W 3500 rpm Single-ended Encoder Flange Mounted New

DCM57205-500

Leadshine Brushed DC Servo Motor DCM57205-500 24VDC 80W 3400 rpm Single-ended Encoder Flange Mounted New

DCM57207-500

Leadshine Brushed DC Servo Motor DCM57207-500 30.3VDC 120W 2900 rpm Single-ended Encoder Flange Mounted New

DCM50202AD-1000

Leadshine Brushed DC Servo Motor DCM50202AD-1000 24VDC 50W 3500 rpm Differential Encoder Screw Mounted New

DCM50205D-1000

Leadshine Brushed DC Servo Motor DCM50205D-1000 24VDC 80W 3400 rpm Differential Encoder Screw Mounted New

DCM50207D-1000

Leadshine Brushed DC Servo Motor DCM50207D-1000 30.3VDC 120W 2900 rpm Differential Encoder Screw Mounted New

DCM57202D-1000

Leadshine Brushed DC Servo Motor DCM57202D-1000 24V 50W 3500 rpm Differential Encoder Flange Mounted New

DCM57205D-1000

Leadshine Brushed DC Servo Motor DCM57205D-1000 24VDC 80W 3400 rpm Differential Encoder Flange Mounted New

DCM57207D-1000

Leadshine Brushed DC Servo Motor DCM57207D-1000 30.3VDC 120W 2900 rpm Differential Encoder Flange Mounted New

DCM50202AD-500

Leadshine Brushed DC Servo Motor DCM50202AD-500 24VDC 50W 3500 rpm Differential Encoder Screw Mounted New

DCM50205D-500

Leadshine Brushed DC Servo Motor DCM50205D-500 24VDC 80W 3400 rpm Differential Encoder Screw Mounted New

DCM50207D-500

Leadshine Brushed DC Servo Motor DCM50207D-500 30.3VDC 120W 2900 rpm Differential Encoder Screw Mounted New

DCM57202D-500

Leadshine Brushed DC Servo Motor DCM57202D-500 24V 50W 3500 rpm Differential Encoder Flange Mounted New

DCM57205D-500

Leadshine Brushed DC Servo Motor DCM57205D-500 24VDC 80W 3400 rpm Differential Encoder Flange Mounted New

DCM57207D-500

Leadshine Brushed DC Servo Motor DCM57207D-500 30.3VDC 120W 2900 rpm Differential Encoder Flange Mounted New

PLCAGE: Leadshine Differential Brushed DC Servo Drive DCS810 DC18-80V Cont. 10A Peak 20A for 20-400W Brush DC Servo Motor New

Introductions:

The DCS810 is a digital DC servo driver developed with DSP and high efficient MOSFET technologies. In position control, it's easy for the end users to change stepping drivers to the DCS810 without changing control systems, because its input command is PUL/DIR signal, which is compatible with that of stepping drivers. In low power motion control applications, performances of DC servo systems using the DCS810 are better than those of digital AC servo systems in velocity, precision, noise, stability, or at least as good as those of digital AC servo systems. However, the cost of the DCS810 stays at the price line of stepping driver, namely far lower than those of AC servo drivers.

Compared to the DCS810S, the DCS810 can accept differential control signals and differential encoder feedback signals, offering better anti-interference performances. Compared to the DB810A, parameter visible tuning tools make the DCS810 much easier to tune.

The DCS810 is very easy to tune and all parameters are visible. Parameter visible tuning tools, including Pro Tuner (Windows based setup software) and STU (Small servo tuning unit) can meet different tuning environments or requirements.

Features:

*18-80VDC, 0-20A, 20-400W.

*Based on DSP control technology and high smooth servo control algorithm.

*Parameter visible tuning tools, including Pro Tuner and STU.

*Feedback resolution X4 encoder line count.

*Position Following error lock range adjustable

*Position error can be eliminated to 1 count, and Velocity error can be eliminated to the Desired Velocity* 0.3%

*Electronic gear ratio from 1/255 to 255

*Built-in motion controller for self-test with trapezoidal velocity profile

*Support PUL/DIR and CW/CCW control signals

*Opto-isolated inputs, support single-ended and differential signals

*10 latest errors self-record function

*Over-current, over-voltage, under-voltage, phase error, encoder error, position following error protections

*Small size, surface-mount technology

Specifications:

Parameters

Min

Typical

Max

Unit

Peak output current

0

-

20

A

Supply voltage

+18

-

+80

VDC

Logic signal current

7

10

15

mA

Pulse input frequency

0

-

500

kHz

Isolation resistance

500





MΩ

Current provided to encoder

-

-

50

mA

Matching motors:

Drive number

DCS303

DCS810

DCS810S

Motors

18-30VDC brush DC servo motors with single-ended encoder, power up to 90W

18-80VDC brush DC servo motors with differential encoder, power up to 400W

18-80VDC brush DC servo motors with single-ended encoder, power up to 400W

Applications:

Suitable for a wide range of equipments and instruments such as mini type

engraving machines, jet-ink machines, etc. It performs better in equipments desired

for low noise, high velocity, high precision and high reliability

Other hot items of this Leadshine Brushed servo drives for above applications:

DCS303

Leadshine Micro-size Brushed DC Servo Drive DCS303 DC18-30V Cont. 3A Peak 15A for 5-90W Brush DC Servo Motor New

DCS810

Leadshine Differential Brushed DC Servo Drive DCS810 DC18-80V Cont. 10A Peak 20A for 20-400W Brush DC Servo Motor New

DCS810S

Leadshine Single-ended Brushed DC Servo Drive DCS810S DC18-80V Cont. 10A Peak 20A for 20-400W Brush DC Servo Motor New
