- Stock: In Stock

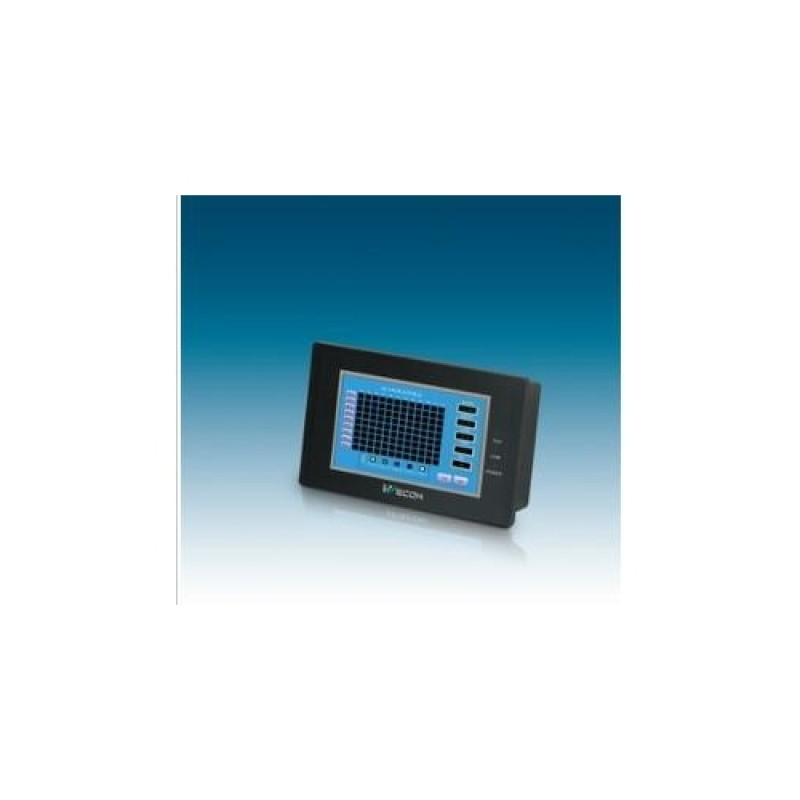

- Model: LEVI430T
- Weight: 0.60kg
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.
Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
Operating system: flush bonding
Chinese Configuration Software for all series WECON series products: LeviStudio_2013.11.08
Downloading Address: http://www.we-con.com.cn/download.asp?classid=467
CE Certification
HMI software installment:
xp and window7 32 install directly, automatically install drivers; window 64 enforces to sign every time power on.
Model | LEVI430T (standard model) |
Specifications | |
Display size | 4.3 inches true colors TFT(95.0W×54.0Hmm) |
Resolution | 480×272 pixels |
Display Color | 65536 colors |
Brightness | 300cd/m2 |
Backlight | LED |
Touch screen | 4-wire precision resistance net(External Hardness 4H) |
Life of LCD | 50000 hours |
CPU | 32-bit 400MHz RISC |
Storage | 128M FLASH + 64M DDRAM |
Power-off Storage +RTC | 256KB+RTC |
Printing port | Serial port/USB printer |
Ethernet | None |
Program-downloading | One USB SLAVE port |
USB Host | 1 USB Host |
Communicating port | COM1:RS232/RS422/RS485(RS232and RS485 can use independently) |
Electrical specification | |
Power Rating | <5W |
Voltage Rating | DC24V |
Input Range | 12~28VDC |
Allowing Power Shutdown | <5ms |
Insulating Resistance | >20MΩ 500VDC |
Pressure-proof Test | 500V AC less than one minute |
Structure Specification | |
Crust color | Black |
Crust Material | ABS plastic |
External Measurement | 138.0W×86.0H×37.0Dmm |
Installed Holecutting Size | 131.0W× 79.0Hmm |
Net Weight | 0.3kg |
Wet weight | 0.6kg |
Environment Specification | |
Operating temperature | -10~60? |
Operating Humidity | 10~90?RH(No condensation) |
Storage temperature | -20~70? |
Storage Humidity | 10~90?RH(No condensation) |
Quake-proof Degree | 10 ~ 25 Hz (X, Y, Z dimension 2G/30 minutes) |
Cooling Way | Natural air dying |
Certification | |
Panel protection Level | IP65 |
CE | EN61000-6-2: 2005, EN61000-6-4: 2007 standard certification |
Compatibility | FCC Class A |
