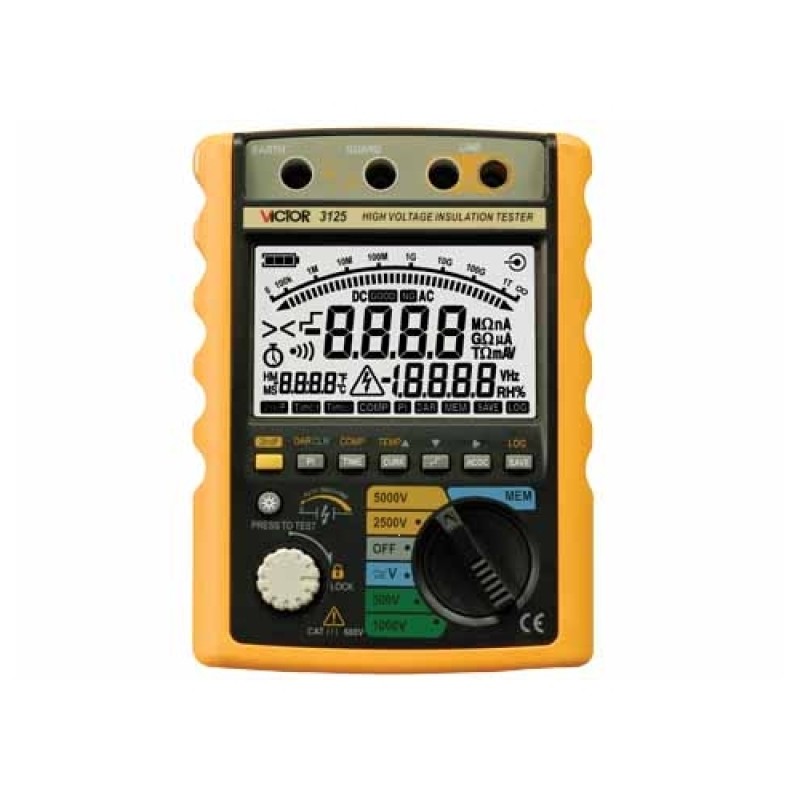

Insulation Resistance tester
3123 | √ | √ | √ | √ |
|
3125 |
| √ | √ | √ | √ |
Rated voltage | 250V | 500V | 1000V | 2500V | 5000V |
Measuring Range | 0.0?99.9MΩ 100?999MΩ 1.00?2.50GΩ | 0.0?99.9MΩ 100?999MΩ 1.00?5.00GΩ | 0.0? 99.9MΩ 100?999MΩ 1.00?9.99GΩ | 0.0?99.9MΩ 100?999MΩ 1.00?9.99GΩ 10.0?99.9GΩ | 0.0?99.9MΩ 100?999MΩ 1.00?9.99GΩ 10.0?99.9GΩ 100?1000GΩ 1.00?1.20TΩ |
Open circuit Voltage | DC 250V + 20% ?-0% | DC 500V + 20% ?-0% | DC 1000V + 20%?-0% | DC 2500V + 20%?-0% | DC 5000V +20%?-0% |
Rated Current | 1mA--1.2mA (at 0.21MΩ load) | 1mA--1.2mA (at 0.5MΩ load) | 1mA--1.2mA (at 1MΩ load) | 1mA--1.2mA (at 2.5MΩ load) | 1mA—1.2mA (at 5MΩ load) |
Short-circuit Current | Approx. 1.3mA | ||||
Accuracy | ±5%rdg ± 3dgt / ±20%(100GΩ or more) | ||||
Voltage monitor display for insulation resistance range
0?5000V(resolution 1V)?±2%rdg±3dgt
Leakage current measurement
Current Range | Measuring Range | Accuracy |
5uA | 0.000?5.250uA | ±10%rdg±5dgt |
50uA | 5.00?52.50uA | ±2.5%rdg±5dgt |
250uA | 50.0?262.5uA | ±2.5%rdg±5dgt |
1500uA | 250?1500uA | ±2.5%rdg±5dgt |
Voltage measurement
| DC voltage | AC voltage |
Measuring range | 0?±1000V | 30 ?600V(50/60Hz) |
Resolution | 1V | |
Accuracy | ±2%rdg±3dgt | |
Temperature measurement
Measuring range | Accuracy |
0.0 |
